Quick Details
-
Specification:
-
WI1609
-
Packaging Type:
-
Paper package
-
Application:
-
Electrical Equipment
-
Package / Case:
-
plastic shell
-
Series:
-
P16
-
Features:
-
Sealed potentiometer
-
Size / Dimension:
-
24*16mm
-
Description:
-
P16 Sealed potentiometer
-
Resistance:
-
100 to 2 megohms
-
Resistance Tolerance:
-
±10%
-
Type of Company:
-
Factory
-
producing year:
-
17
-
Product name:
-
Trimming Potentiometer
-
Model:
-
WI1609
-
Key words:
-
Trimmer Potentiometer
-
Rated Power:
-
1W
-
Rotational Life:
-
10000 cycles
-
Stop Strength:
-
350 mN.m,min
-
Torque:
-
(3.5~50)mN.m
-
Mechanical Angle:
-
305° nom.
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
BONENS
-
Model Number:
-
WI1609
-
Specification:
-
WI1609
-
Packaging Type:
-
Paper package
-
Application:
-
Electrical Equipment
-
Package / Case:
-
plastic shell
-
Series:
-
P16
-
Features:
-
Sealed potentiometer
-
Size / Dimension:
-
24*16mm
-
Description:
-
P16 Sealed potentiometer
-
Resistance:
-
100 to 2 megohms
-
Resistance Tolerance:
-
±10%
-
Type of Company:
-
Factory
-
producing year:
-
17
-
Product name:
-
Trimming Potentiometer
-
Model:
-
WI1609
-
Key words:
-
Trimmer Potentiometer
-
Rated Power:
-
1W
-
Rotational Life:
-
10000 cycles
-
Stop Strength:
-
350 mN.m,min
-
Torque:
-
(3.5~50)mN.m
-
Mechanical Angle:
-
305° nom.
product name

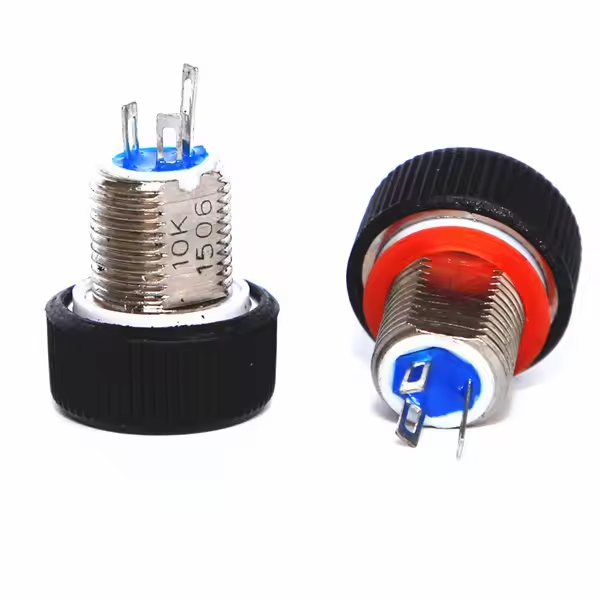

P16 P16NP Single Turn Knob Potentiometer with Switch Sealed potentiometer WI1609 cermet 1W 10% trimmer potentiometer
product description
The P16 is a revolutionary concept in panel mountedpotentiometers. This unique design consists of a knobdriving and incorporating a cermet potentiometer. Only themounting hardware and terminals are situated on the backside of the panel reducing to a minimum the requiredclearance.
Product Features:
P16 - version for professional and industrial applications (cermet)1 W at 40 ℃
PA16 - version for professional audio applications(conductive plastic)0.5 W at 40 ℃
Compact (integrated)
High dielectric strength: 2500 VRMs
Fully sealed and panel sealed
Metallic or plastic knob options
Custom knob on reques
Product size:
Specification parameters:
|
Electrical Characteristics
|
Standard Resistance Range
|
100 to 2 megohms(see standard resistance table)
|
|
Resistance Tolerance
|
±10% std.(tighter tolerance available)
|
|
|
Absolute Minimum Resistance
|
1% or 10 ohms max.(whichever is greater)
|
|
|
Contact Resistance Variation
|
3% max.
|
|
|
Insulation Resistance
|
500 Vdc, 1000 megohms min.
|
|
|
Dielectric Strength
|
101.3 kPa 900 Vac 8.5 kPa 500 Vac
|
|
|
Adjustment Angle
|
265°nom.
|
|
|
Environmental Characteristics
|
Power Rating (200 volts max.)
|
1 watt (70°C) , 0 watt (125°C)
|
|
Temperature Range
|
-55°C to +125°C
|
|
|
Temperature Coefficient
|
±250×10-6/°C or ±100×10-6/°C
|
|
|
Vibration
|
98 m/s2, 1%ΔTR
|
|
|
Shock
|
490 m/s2, 1%ΔTR
|
|
|
Load Life
|
1,000 hours 1 watt @ 70°C (5%ΔTR)
|
|
|
Rotational Life
|
10000 cycles:(15%ΔTR; 6% ,CRV)
|
|
|
Physical Characteristics
|
Mechanical Angle
|
305° nom.
|
|
Torque
|
(3.5~50)mN·m
|
|
|
Stop Strength
|
350 mN·m min.
|
application area:
P16NP metal ceramic rotary potentiometer applied to Network communication systems, Night vision goggles, Audio head set, communication, Remote controls, Hot air blowers, Spotlights for scenes, Air fan controls, Industrial dashboards, Variable frequency drives, Electric wheelchair
product catalog:
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
