Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
GETO
-
Model Number:
-
GT-PP15/GT-PP18
-
Material:
-
Polypropylene(PP)
-
Feature:
-
Hollow(Honeycomb)
-
Thickness:
-
12mm, 15mm, 18mm
-
Weight:
-
22-30KG/PIECE
-
Density:
-
0.6g/cm3
-
Size:
-
1220mm*2440mm, 4ft*8ft
-
Working Temperature:
-
-35℃ to 165℃
-
Reusable Time:
-
50-60 times
-
Color:
-
White
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
GETO
-
Model Number:
-
GT-PP15/GT-PP18
-
Material:
-
Polypropylene(PP)
-
Feature:
-
Hollow(Honeycomb)
-
Thickness:
-
12mm, 15mm, 18mm
-
Weight:
-
22-30KG/PIECE
-
Density:
-
0.6g/cm3
-
Size:
-
1220mm*2440mm, 4ft*8ft
-
Working Temperature:
-
-35℃ to 165℃
-
Reusable Time:
-
50-60 times
-
Color:
-
White
Products Description

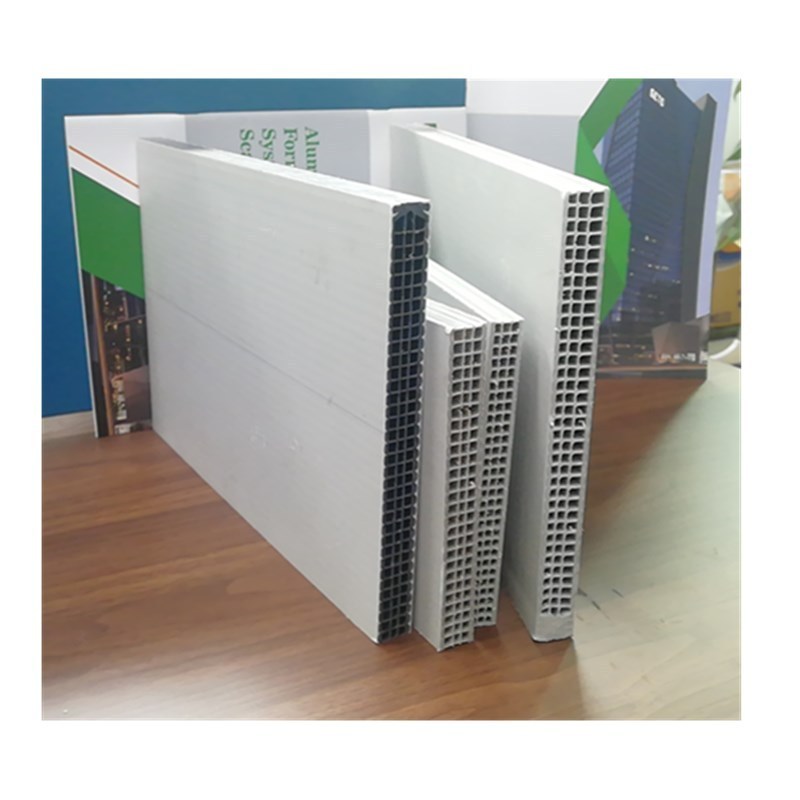

Plastic board is a good product to instead plywood(phenolic board), the same usage with pl
yw
o
od, it can be reused more than 50 times, saving cost and
time
.
|
Mechanical Data
|
|
|
|
|
||||
|
Items
|
Test Standard
|
Test Condition
|
Unit
|
Test Result
|
||||
|
Tensile Strength
|
ASTM D-638
|
10mm/min
|
MPa
|
23.36
|
||||
|
Elongation at Break
|
ASTM D-638
|
10mm/min
|
%
|
>200
|
||||
|
Bending Strength
|
ASTM D-790
|
10mm/min
|
MPa
|
31.9
|
||||
|
Flexural Modulus
|
ASTM D-790
|
10mm/min
|
MPa
|
3050
|
||||
|
Notched Izod Impact Strength
|
ASTM D-256
|
23℃
|
KJ/m
2
|
10.57
|
||||
|
Heat Distortion Temp
|
ASTM D-648
|
1.82MPa
|
℃
|
-
|
||||
|
Physical Properties
|
|
|
|
|
||||
|
Items
|
Test Standard
|
Test Condition
|
Unit
|
Test Result
|
||||
|
Density
|
ASTM D-792
|
23±0.5℃
|
g/cm
3
|
0.6
|
||||
|
Molding Shrinkage
|
ASTM D-955
|
3.2mm
|
%
|
1.7
|
||||
|
Melting Flowing Rate
|
ASTM D-1238
|
230℃, 2.16KG
|
g/10min
|
3.5
|
||||
|
Technical Data
|
|
|
|
|
||||
|
Inspection Items
|
|
Test Reference
|
Test Result
|
|
||||
|
Maximum Damage Load
|
|
GB/T 17657-1991
|
Vertical Pressure 1024N
|
|
||||
|
Water Absorption
|
|
|
0.5%
|
|
||||
|
Grip Screw Force(Board)
|
|
|
1280N
|
|
||||
|
Charpy Un-notched Impact Strength
|
|
GB/T 1043.1-2008
|
Lateral Pressure 12.0KJ/m
2
|
|
||||
|
|
|
|
Vertical Pressure 39.6KJ/m
2
|
|
||||
|
Shore Hardness
|
|
GB/T 2411-2008
|
75
|
|
||||
|
Falling Ball Impact Test
|
|
GB/T 18102-2007
|
13.3mm
|
|
||||
|
Vical Softening Point
|
|
GB/T 1633-2000
|
76.6
|
|
||||
|
Resistance to Acid and Base Saturated Ca(OH)
2
, Soak for 48 Hours
|
|
GB/T 11547-2008
|
No Cracking and Bubbling
|
|
||||
|
Loading Details
|
|
|
|
|
||||
|
Sizes
|
Unit Weight
|
Container Loading
|
|
|
||||
|
|
|
20GP
|
40GP
|
40HQ
|
||||
|
12*1220*2440MM
|
22KG/PIECE
|
560PCS
|
1120PCS
|
1184PCS
|
||||
|
15*1220*2440MM
|
26KG/PIECE
|
440PCS
|
880PCS
|
1008PCS
|
||||
|
18*1220*2440MM
|
30KG/PIECE
|
360PCS
|
720PCS
|
864PCS
|
||||
Advantages:
1. It can be reused 50-60 times.
2. Light weight, high strength, anti-cracking, anti-friction, impact resistance.
3. Waterproof(water absorption: 0.5%), corrosion resistance(acid and alkali), no deformation, size stability, no mildew, no need antiseptic treatment for using and storing.
4. Honeycomb structure make it easy to dissipate heat, avoid heat deformation.
5. No need release agent, demoulding easily, concrete surface is smooth, no need plastering.
6. Good toughness, it can be used to special-shaped structure.
7. Easy to process with sawing, drilling and nailing.
8. Glass cement can repair scratch on the board surface, small holecan be repaired by styrofoam.
9. Non-toxic, non-pollution.
10. Environment friendly, no construction waste, the leftover material and scrap board have high recycle value.
Porduct Pictures
Factory Pictures
Certifications
Exhibition
Company Introduction
GETO is comprehensive joint-stock company specialized in Aluminium Formwork and Scaffolding. Headquarter registered in Jiangxi and the global operation management center is based in Tsui Hang New District, heart of Guangdong-Hong Kong-Macao Greater Bay Area. We had set up more than 20 subsidiaries in Beijing, Shanghai, Shenzhen, Changsha, and overseas in Singapore, Malaysia, Cambodia, India, UAE, Panama, Algeria. The product are sold well in over 30 countries and regions. With four domestic production bases, we are one of the first specially qualified and national high-tech enterprises.With a backbone team of over 2,000 people, we are taking the lead in the realization of scale, specialization and modernization, focusing on formwork system R&D, production, leasing, sale, renovation and technical services, providing customers with a full range of high-quality services.
