Quick Details
-
Dimension(L*W*H):
-
8800*2350*1800mm
-
Weight:
-
3500 KG
-
Model:
-
BZJ-1300/1450/1600
-
Max Sheet Size:
-
1300/1450/1600*1100mm
-
Application material:
-
cardboard and corrugated cardboard
-
Feeding way:
-
Automatic Feeding
-
Speed:
-
5000pcs/hour
-
Machine weight:
-
3500kg
-
Gurantee:
-
1.5 year
-
Advantages:
-
Low Cost
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Voltage:
-
380V/50HZ/3PHASE OR CUSTOM MADE
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BESTICE
-
Dimension(L*W*H):
-
8800*2350*1800mm
-
Weight:
-
3500 KG
-
Model:
-
BZJ-1300/1450/1600
-
Max Sheet Size:
-
1300/1450/1600*1100mm
-
Application material:
-
cardboard and corrugated cardboard
-
Feeding way:
-
Automatic Feeding
-
Speed:
-
5000pcs/hour
-
Machine weight:
-
3500kg
-
Gurantee:
-
1.5 year
-
Advantages:
-
Low Cost
-
After-sales Service Provided:
-
Field installation, commissioning and training
Product Description

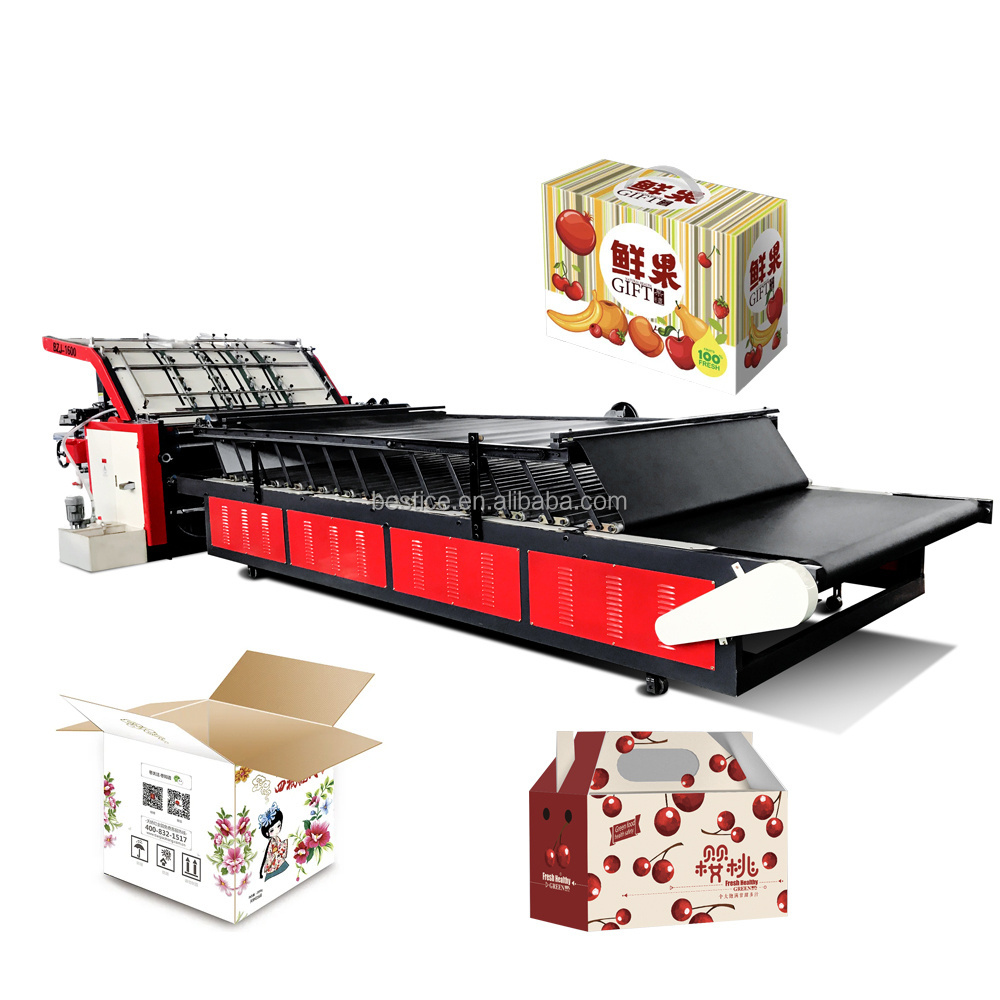

Low Price 1300 1450 1600 Corrugated Carton Box Flute Laminating Machine For Cardboard Glue Mounting
Specification
|
Model
|
BZJ-1300
|
BZJ-1450
|
BZJ-1600
|
|
Max sheet size
|
1300*1100mm
|
1450*1100mm
|
1600*1100mm
|
|
Min sheet size
|
350*350mm
|
350*350mm
|
350*350mm
|
|
Lamination precision
|
≤±1mm
|
≤±1mm
|
≤±1mm
|
|
Machine speed
|
0-5000 pcs/hour
|
0-5000 pcs/hour
|
0-5000 pcs/hour
|
|
Working speed
|
1600-4500pcs/h
|
1500-4500pcs/h
|
1300-4500pcs/h
|
|
Control
|
PLC & touch screen
|
PLC & touch screen
|
PLC & touch screen
|
|
Power
|
About 7kw
|
About 7kw
|
About 7.5kw
|
Recommend Products
Die cutting and creasing machine
Die cutting and creasing machine is the special equipment for die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leather.
It is widely used in printing, packaging, decoration and plastic industries and welcomed by the customers due to the reliable performance, high quality.
It is widely used in printing, packaging, decoration and plastic industries and welcomed by the customers due to the reliable performance, high quality.
Automa tic carton box folding gluing mac hine
Automatic carton folder gluer machine is wildly used for gluing corrugated cardboard, 3 ply and 5ply. The whole machine composed of three parts, paper feeding part, gluing folding part and correction stacker part.
PLC and touch screen adjust the speed and size, fast and reliable accurate control system. Automatic paper feeding, automatic gluing folding, automatic counting, automatic stacking and delivery out; front and rear double frequency operation synchronously.
Semi Automatic carton box folder gluer machine
Semi automatic corrugated box folder gluer machine is widely used in folding and gluing paperboard and corrugated cardboard.
Designed with reasonable construction and outstanding shape for easy operation and perfect performance.
