Quick Details
-
Material:
-
Carton Packing, PP woven PP yarm
-
Weight:
-
8.4kg(50pcs/carton)
-
Size:
-
54*35*34cm(50pcs/carton)
-
Product name:
-
filter cartridges
-
Function:
-
primary filter
-
Application:
-
Drinking Water
-
Name:
-
water filter cartridge
-
Type:
-
string wound filter cartridge
-
Certification:
-
CE NSF
-
Color:
-
White
-
Usage:
-
Fine filtration for variety of gas
-
Application of the industry:
-
Electronis chemical products and
Quick Details
-
Core Components:
-
other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ocpuritech
-
Material:
-
Carton Packing, PP woven PP yarm
-
Weight:
-
8.4kg(50pcs/carton)
-
Size:
-
54*35*34cm(50pcs/carton)
-
Product name:
-
filter cartridges
-
Function:
-
primary filter
-
Application:
-
Drinking Water
-
Name:
-
water filter cartridge
-
Type:
-
string wound filter cartridge
-
Certification:
-
CE NSF
-
Color:
-
White
-
Usage:
-
Fine filtration for variety of gas
-
Application of the industry:
-
Electronis chemical products and
High Quality 0.2 micron String Wound Water Filter Cartridge
| The filter cartridge is a new type filter element, small size, large filter area, high precision, No pollution, easy installation and replaced. Using the microporous membrane filtration, so the adsorption is small, therefore not stranded filtrate, and wide chemical compatibility, has broad applicability. Filter connector using the International universal form: this cover with 226, 222, flat three forms; ports with triangle fin and flat head two forms. |

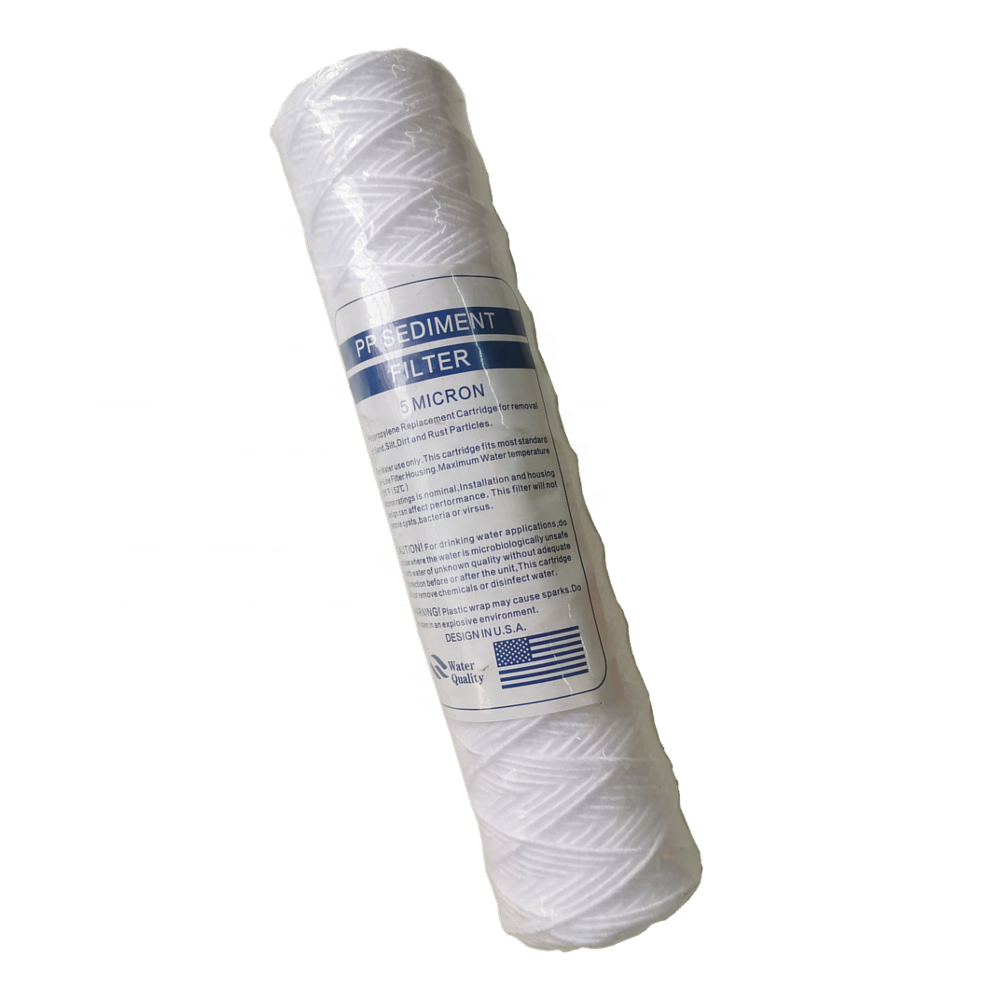

String wound cartridge filter
String wound cartridge filter is a deep layer filter element, and it mainly used in the quality of low viscosity and impurity filtering. It is made of textile fiber line(polypropylene line, absorbent cotton line), according to the specific process of precision winding in the porous frame(polypropylene or stainless steel). With dense inside and sparse outside cellular structure, so it can remove suspended solids, particle, and rust, etc. in the fluid. In addition, it has very good filter characteristics.
Pp/ss Core 10 Micron Pp String Wound Water Filter Cartridge, High-Quality Alkaline Filter Cartridge,10 Micron Filter
Main technical performance indicators
1. filtering precision:1μm,5μm , 10μm , 20μm , 30μm , 50μm , 75μm , 100μm ;
2. filter cartridge OD:φ60mm , φ65mm ;
3. filter cartridge ID:φ28mm , φ30mm ;
4. The filter cartridge of polypropylene can use water, acid, alkali etc.and chemical solution and other nonorganic solution, and its operating temperature≤60 ℃ ;
5. Absorbent cotton fiber filter center pole is stainless steel materials, using in
an organic solvent, water, oil, alkaline solution, drink, and medicine, etc., with operating temperature120 ℃ ;
filter cartridge length: 10″ , 20″ , 30″ , 40″;
7. Max anti-pressure:≤0.5MPa;Max drop of pressure:0.2MPa;
8. Max working temperature: Polypropylene line: Polypropylene frame≤60 ℃ ;
Stainless steel frame≤80 ℃ . Absorbent cotton line: Stainless steel frame≤120 ℃ .
Feature
High filtering precision, large flow rate, low differential pressure, high-pressure strength, carrying a large amount of dirt, non-poisonous and tasteless and no secondary pollution.
Application
Water filter: such as the medium and big size of the ultrapure water system and beverage industry water use’s pre-treatment;
2.Food industry filter:such as cooking and vegetable oil’s filtering, syrup,chocolate
and other kinds of slurry’s filtering;
3.Chemical industrial filter:such as the filter of plating solution liquid, oil paint,oil plants,coating mechanical oil,cutting oil,heavy oil,fuel oil, high viscosity resin, grease, and pharmacy, etc.
Good string wound cartridge filter can show the depth of the filter material’s effect.And the ideal condition is wrapped more and more dense from inside to outside. Thus, it controls the density of filter material with the thickness of the line or different winding tension. Only with dense inside and sparse outside structure’s string wound filter cartridge can effectively enhance the filtration efficiency and intercept more impurity particles. Wound type filter material of filtering precision is determined by the wire thickness and the wrapping density, the more thin wire material,and more closely together, so the pore will be smaller and higher precision. In the same way, wire material more compact, the filtration precision will be higher. However, we need to maintain its structure and pore size, so that providing a stable and uniform quality of the filter.
Package
10'' 50PCS/CTN 510*310*310mm
20'' 50PCS/CTN 510*310*310mm
30'' 25PCS/CTN 765*310*310mm
40'' 25PCS/CTN 1020*310*310mm
