Quick Details
-
Brand Name:
-
huamo
-
Voltage:
-
380V 50HZ
-
Power:
-
4.KW
-
Dimension(L*W*H):
-
3600X1500X1700mm
-
Weight:
-
2200 kg
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Video Technical Support
-
Finished Products:
-
paper box
-
Name:
-
Hamburger box erecting machine
-
Application:
-
Packing Industry
-
Raw material:
-
200-600g/m²cad paper,PE coated paper,kraft paper,corrugated paper
-
Speed:
-
50-160pcs/min
-
Advantage:
-
Two molds for free
Quick Details
-
Production Capacity:
-
50-160pcs/min
-
Product Type:
-
Paper Box Machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
huamo
-
Voltage:
-
380V 50HZ
-
Power:
-
4.KW
-
Dimension(L*W*H):
-
3600X1500X1700mm
-
Weight:
-
2200 kg
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Video Technical Support
-
Finished Products:
-
paper box
-
Name:
-
Hamburger box erecting machine
-
Application:
-
Packing Industry
-
Raw material:
-
200-600g/m²cad paper,PE coated paper,kraft paper,corrugated paper
-
Speed:
-
50-160pcs/min
-
Advantage:
-
Two molds for free

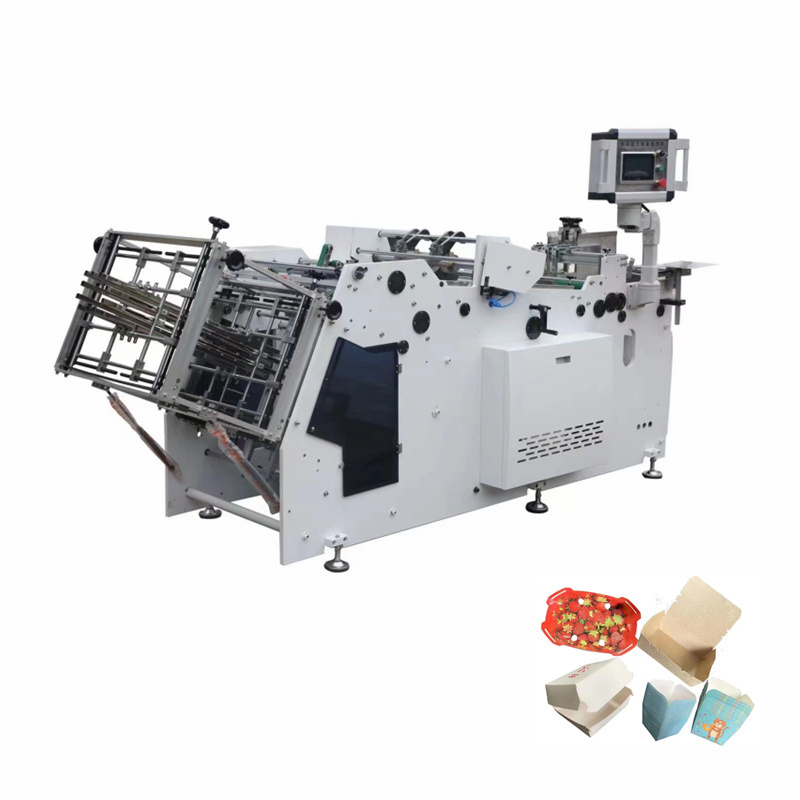

HM-800 is an ideal choice to produce hamburger boxes ,chips boxes, takeout container,etc. It adopts micro-computer.PLC,alternating current frequency converter,the vacuum-sucking paper feeding,auto gluing,automatic paper tape counting,and chain drive.All of these main parts and electric control system adopts imperted brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation.
Main Features
The carton erecting machine is highly efficient.The working speed is 50-160 pieces per minute and finished produces are automatically counted.It can be customized to do different size and shaped boxes though changing mold.(hamburger box,fried chips box,paper tray,noodle box,lunch box and other food container)
|
Model |
Power Source |
Total Power: |
Production capacity: |
Suitable Material: |
Length: |
Width: |
Advantage |
Total Weight: |
Overall Dimension |
|
HM-800 |
380V 50HZ |
4.0KW |
50-160pce/min |
200-600g/m²cad paper,PE coated paper,kraft paper,corrugated paper |
L80-450mm, degree:5° -40° |
B100-600mm Height H15-200mm |
Two molds for free |
2.2T |
3600X1500 X1700mm |
The chain drive is adopted in the machine to ensure the smooth running,and endurable structure.Each part is separated to reduce noise and workload,as well as to increase the stability.
Time of paper feeding is adjusted by cam.simply operating,reducing failure rate.And vacuum-sucking paper feeding.
Automatic gluing systems controlled by reduce motor from sponge.
Every part of forming and collecting system can be adjusted according to the size of mold.The whole collection system can be opened to change mold and install the forming parts conveniently.
It adapts paper tape counting equipment to count product quickly and accurately,and to readjusted.
