Quick Details
-
Brand Name:
-
Hanming
-
Model Number:
-
DF 20
-

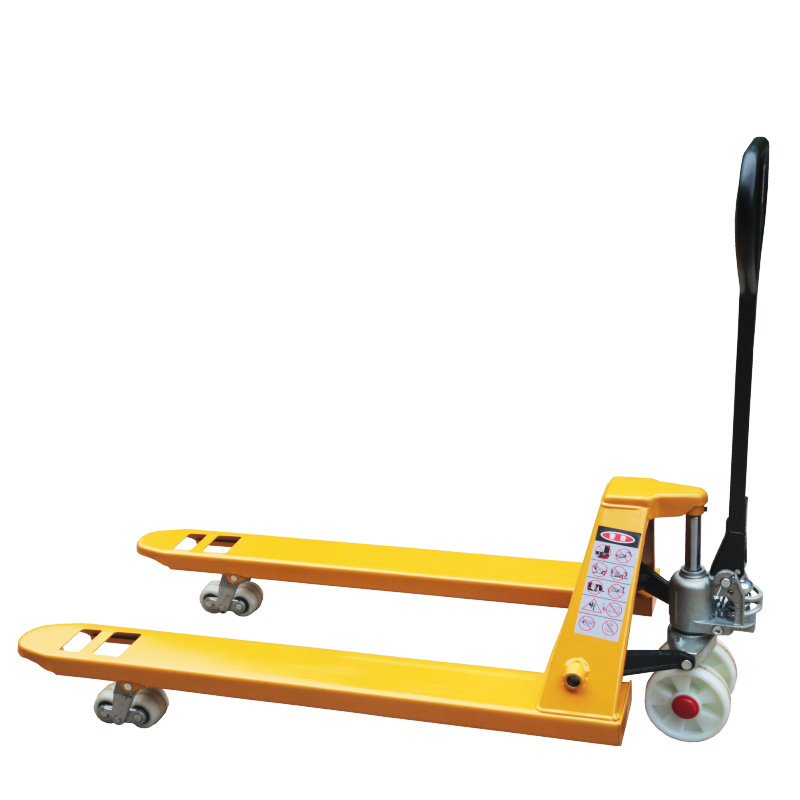

Product name:
-
manual pallet truck
-
Type:
-
Manual Pallet Truck
-
Load capacity:
-
1000kgs~4000kgs
-
Fork Length:
-
1150/1220mm
-
After-sales Service Provided:
-
No overseas service provided
-
Fork Width:
-
550/685mm
-
Max. Lifting Height:
-
205mm
-
Color:
-
Customer Demanded
-
Material:
-
Metal+PU
-
Wheels:
-
Nylon PU
Quick Details
-
Capacity (Load):
-
11-20T, 1-10T
-
Lift Drive / Actuation:
-
Hand
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hanming
-
Model Number:
-
DF 20
-
Product name:
-
manual pallet truck
-
Type:
-
Manual Pallet Truck
-
Load capacity:
-
1000kgs~4000kgs
-
Fork Length:
-
1150/1220mm
-
After-sales Service Provided:
-
No overseas service provided
-
Fork Width:
-
550/685mm
-
Max. Lifting Height:
-
205mm
-
Color:
-
Customer Demanded
-
Material:
-
Metal+PU
-
Wheels:
-
Nylon PU
1. Strengthened Spring:long life,flexible,good hardness,good temperature resistance
2. Ergonomic Handle:4 fingers press position using ergonomics easy to use,comfortable operation.
3. Flat Welding:seamless welding scientific strict smooth beautiful interface high carrying capacity.
4. Pressure Feet:just press the pedal lightly when releasing pressure pressure relief done.
Hand pallet truck spare parts/hand pallet truck China/Hand lift truck
hand pallet truck spare parts
hand pallet truck spare parts
hand pallet truck spare parts
hand pallet truck spare parts
hand pallet truck spare parts
| Model | Unit | DF20 | DF30 | AC25 | AC30 | AC50 |
| Specified load | kg | 2000 | 3000 | 2500 | 3000 | 5000 |
|
Min height of fork |
mm | 75 | 75 | 85 | 85 | 90 |
| Max height of fork | mm | 190 | 190 | 200 | 200 | 185 |
| Steering wheel | mm | 180*50 | 180*50 | 180*50 | 180*50 | 190*50 |
| Load wheel (double wheel) | mm | 74*55 | 74*70 | 80*70 | 80*70 | 90*68 |
| Fork size | mm | 150*60 | 160*60 | 160*60 | 160*60 | 180*60 |
| Total width of fork | mm | 550/685 | 550/685 | 540/685 | 540/685 | 540/685 |
1. What information should we provide if we want the best quotation?
How much is the maximum lifting weight of the hoist?
How high of the lift height?
Fixed type or Trolley type?
Power supply?
2. Can I get samples to check your quality?
Yes, we can design or produce some samples as you request.
Please pay the freight and sample fee.
3. What is the lead time for mass production?
Usually 10-25 days’ delivery time, but the accurate time depends on the quantity.
4. What is the package?
Carton, or standard package or negotiation.
Mini Electric Hoists: carton; PA200-800: 2 products in one carton;
Hand Chain Hoists: 1-5 ton for carton; 10 ton> for wood case
Lever Hoists: 0.75-6 ton for carton; 9 ton> for wood case
Electric Wire Rope Hoists and Electric Chain Hoists: wood case
5. Can you offer the aftersales service?
Quality Warranty Certificate, Electric Wire Rope Hoists and Electric Chain Hoists for 3 years, the other products for 1 year, offer the accessories for customers without freight during the Warranty Time.
Operation brochures and maintenance brochures.
Online inquiry and response.
