Quick Details
-
Brand Name:
-
Taidacent
-
Description:
-
pir motion sensor switch
-
Usage:
-
Consumption Sensor
-
Theory:
-
Inductance Sensor
-
Output:
-
Switching Transducer
-
Application:
-
Industrial Automation
-
Interface:
-
other
-
Sensitivity (LSB/(°/s)):
-
other
-
Humidity Range:
-
other
-
Sensitivity (mV/g):
-
other
-
Packaging:
-
other
-
Sensing Distance:
-
other
-
Size / Dimension:
-
other
-
Output Type:
-
other
-
Acceleration Range:
-
other
-
Voltage - Output Difference (Typ) @ Distance:
-
other
-
Resolution:
-
other
-
Function:
-
other
-
Oxygen Range:
-
other
-
Current Rating - DC:
-
other
-
Measuring Range:
-
other
-
Operating Force:
-
other
-
Output Function:
-
other
-
Frequency:
-
other
-
Sensing Light:
-
other
-
Current Rating - AC:
-
other
-
Sensitivity (LSB/g):
-
other
-
Voltage - Rated:
-
other
-
Size:
-
other
-
Current - Output:
-
other
-
Bandwidth:
-
other
-
Voltage - Input:
-
other
-
Voltage Rating:
-
other
-
Current - Output (Max):
-
other
-
Voltage - Output (Typ) @ Distance:
-
other
-
Amplifier Type:
-
other
-
Resistance Tolerance:
-
other
-
Sensing Temperature - Remote:
-
other
-
Power - Max:
-
other
-
Mounting Type:
-
soldering
-
Operating Temperature:
-
-40c to 60c
-
Features:
-
other
-
Current - Supply:
-
other
-
Sensing Object:
-
30 to 40 degree
-
Sensitivity (mV/°/s):
-
other
-
Flow Sensor Type:
-
other
-
Resolution (Bits):
-
other
-
Voltage - Max:
-
other
-
Current:
-
other
-
Voltage - DC Reverse (Vr) (Max):
-
other
-
Power - Rated:
-
other
-
D/C:
-
new
-
Voltage - Supply:
-
DC 12V
-
Tolerance:
-
other
-
Current - Supply (Max):
-
other
-
Output Configuration:
-
other
-
Resistance:
-
other
-
Technology:
-
other
-
Sensing Range:
-
2m
-
Sensing Temperature - Local:
-
other
Quick Details
-
Package / Case:
-
black case
-
Model Number:
-
TDDC12VPIRSENSOR
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Description:
-
pir motion sensor switch
-
Usage:
-
Consumption Sensor
-
Theory:
-
Inductance Sensor
-
Output:
-
Switching Transducer
-
Application:
-
Industrial Automation
-
Interface:
-
other
-
Sensitivity (LSB/(°/s)):
-
other
-
Humidity Range:
-
other
-
Sensitivity (mV/g):
-
other
-
Packaging:
-
other
-
Sensing Distance:
-
other
-
Size / Dimension:
-
other
-
Output Type:
-
other
-
Acceleration Range:
-
other
-
Voltage - Output Difference (Typ) @ Distance:
-
other
-
Resolution:
-
other
-
Function:
-
other
-
Oxygen Range:
-
other
-
Current Rating - DC:
-
other
-
Measuring Range:
-
other
-
Operating Force:
-
other
-
Output Function:
-
other
-
Frequency:
-
other
-
Sensing Light:
-
other
-
Current Rating - AC:
-
other
-
Sensitivity (LSB/g):
-
other
-
Voltage - Rated:
-
other
-
Size:
-
other
-
Current - Output:
-
other
-
Bandwidth:
-
other
-
Voltage - Input:
-
other
-
Voltage Rating:
-
other
-
Current - Output (Max):
-
other
-
Voltage - Output (Typ) @ Distance:
-
other
-
Amplifier Type:
-
other
-
Resistance Tolerance:
-
other
-
Sensing Temperature - Remote:
-
other
-
Power - Max:
-
other
-
Mounting Type:
-
soldering
-
Operating Temperature:
-
-40c to 60c
-
Features:
-
other
-
Current - Supply:
-
other
-
Sensing Object:
-
30 to 40 degree
-
Sensitivity (mV/°/s):
-
other
-
Flow Sensor Type:
-
other
-
Resolution (Bits):
-
other
-
Voltage - Max:
-
other
-
Current:
-
other
-
Voltage - DC Reverse (Vr) (Max):
-
other
-
Power - Rated:
-
other
-
D/C:
-
new
-
Voltage - Supply:
-
DC 12V
-
Tolerance:
-
other
-
Current - Supply (Max):
-
other
-
Output Configuration:
-
other
-
Resistance:
-
other
-
Technology:
-
other
-
Sensing Range:
-
2m
-
Sensing Temperature - Local:
-
other

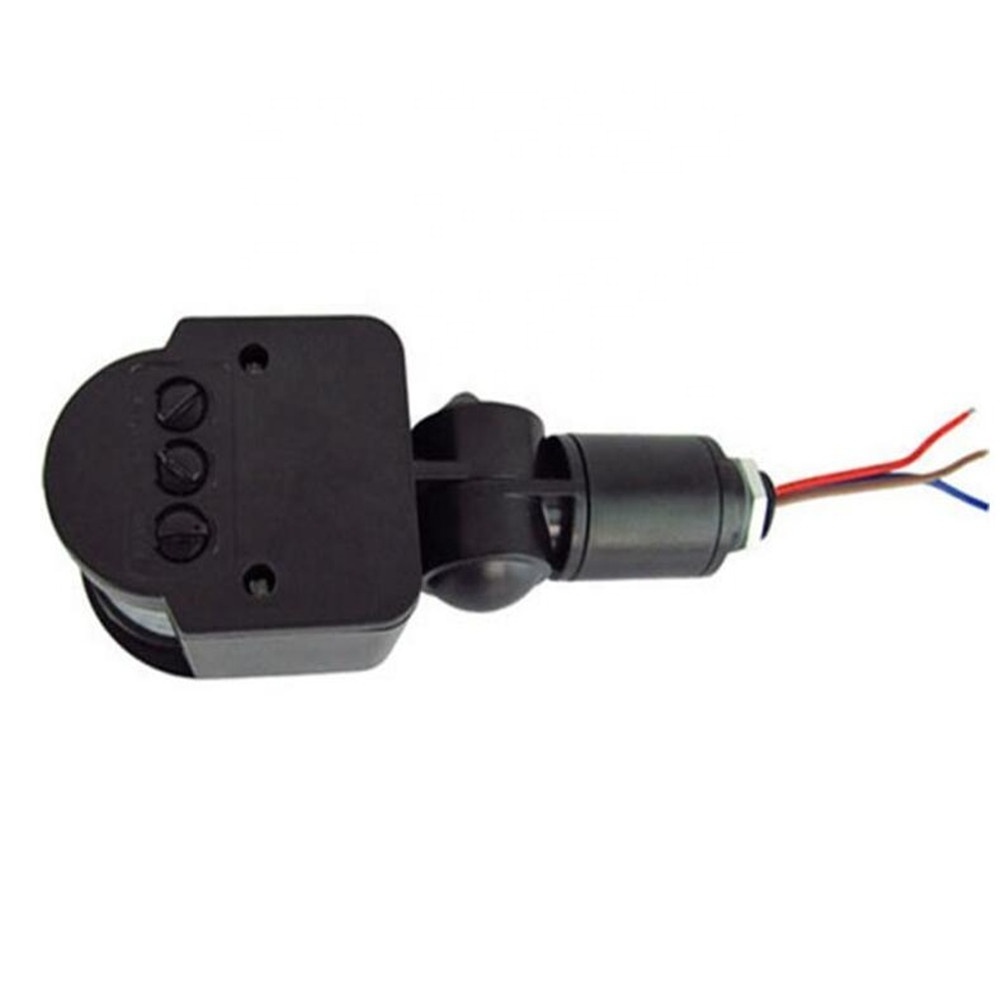

Taidacent Waterproof Outdoor Infrared Motion Detector Automatic Room Lights Sonoff Pir Sensor Wall Switch 12V Motion Sensor
Product Description
Introduction
The human body sensor uses infrared technology, built-in human body infrared sensor module, light effect sensor module, and delay switch module. Integrated codec transmission, decoding reception, control output, industrial-grade chip, large load capacity, strong anti-interference ability.
When people enter the sensing range, they can turn on automatically. When they leave, they can automatically turn off after a delay, which eliminates the manual waste of conventional lamps and unmanned waste. It prolongs the service life of lamps and combines energy saving, convenience and environmental protection.
It can automatically identify day and night, and the external environment illumination at the beginning of work can be freely selected to achieve automatic work at night and close during the day. Users can adjust by themselves;
The detection distance is adjustable and can be adjusted according to the place of use;
The lighting time is adjustable and can be adjusted by the user according to local conditions.
Feature
Detection range: 180 °
Working voltage: DC12V
Detection distance: 2-14m (24 ℃) (adjustable)
Delay time: 15 seconds to 9 minutes (adjustable)
Ambient illumination: 2 ~ 2000LUX (adjustable)
Working temperature: –10 ℃ ~ + 40 ℃
Operating humidity: less than 93% RH
Installation height: 1.8m — 2.5m
Material: ABS
Dimensions: 60 * 45 * 160mm
Installation method: open type, (opening 16mm) When installing, the adjustment button faces downward.
|
1
|
LUX is adjusted for day or night work
|
|
A
|
When adjusted to the sun position, the sensor works all day
|
|
B
|
When adjusted to the moon position, the sensor does not work during the day and automatically enters the working state at night
|
|
2
|
TIME is to adjust the delay time of the sensor (5 ± 2sec-4 ± 1min). The delay time refers to the time when the sensor leaves the sensing area after the sensor detects the person, and the sensor delays to turn off
|
|
3
|
SENS
It is to adjust the sensitivity of the sensor. Generally, no adjustment is required
|
