Quick Details
-
Brand Name:
-
Sailham
-
Model Number:
-
ZH-SH-60
-
Product name:
-
Salt spray fog test chamber
-
Certificate:
-
ISO9001:2015 CE FCCA
-
Power supply:
-
AC220V
-
Temperature range:
-
RT+10℃~55℃
-
Humidity range:
-
≥93%R.H
-
Temperature uniformity:
-
±2℃
-
Internal dimensions:
-
600*450*400(mm)
-
Fog deposition:
-
1~2ml/80c㎡
-
Spray mode:
-
Continuous/periodic option
-
Weight:
-
60kg
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sailham
-
Model Number:
-
ZH-SH-60
-
Product name:
-
Salt spray fog test chamber
-
Certificate:
-
ISO9001:2015 CE FCCA
-
Power supply:
-
AC220V
-
Temperature range:
-
RT+10℃~55℃
-
Humidity range:
-
≥93%R.H
-
Temperature uniformity:
-
±2℃
-
Internal dimensions:
-
600*450*400(mm)
-
Fog deposition:
-
1~2ml/80c㎡
-
Spray mode:
-
Continuous/periodic option
-
Weight:
-
60kg

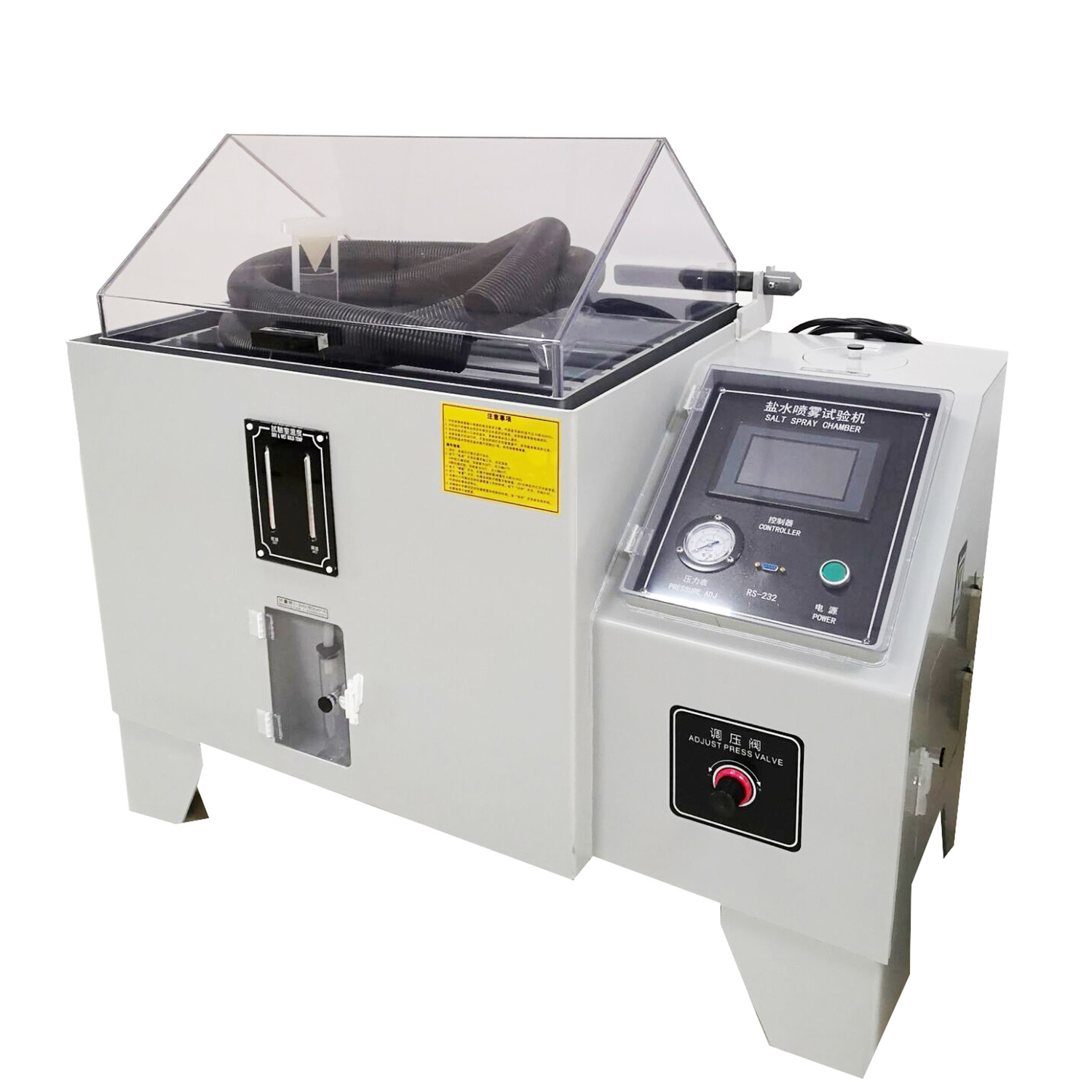

Economic Salt Spray corrosion test chamber for NSS test
Economic Salt Spray corrosion test chamber for NSS test is commonly used to evaluate the corrosive properties of:
Phosphated surfaces (with subsequent paint/primer/lacquer/rust preventive).
Zinc and Zinc-alloy plating (see also electroplating).
Electroplated chromium, nickel, copper and tin.
Coatings not applied electrolytically (such as zinc flake coatings).
Organic Coatings.
Paint Coating.
Specification parameter list:
|
Model |
ZH-SH-60 |
ZH- SH -90 |
ZH-SH-120 |
ZH-SH-160 |
ZH-SH-200 |
|
Inner box size:
|
60×45×40 |
90×60×50 |
120×100×50 |
160×100×50 |
200*100*50 |
|
Outside box size:
|
108*108*65 |
135×112×75 |
190×128×125 |
230×128×125 |
270*128*125 |
|
Temperature range |
35℃~55℃; |
||||
|
Test chamber temperature |
NSS ACSS 35℃±1℃(CASS 50℃±1℃) |
||||
|
Saturated air barrel temperature |
NSS ACSS 47℃±1℃(CASS 63℃±1℃) |
||||
|
Temperature fluctuations |
≤±0.5°C |
||||
|
Temperature uniformity |
≤±2.0°C |
||||
|
Lab volume |
110L |
270L |
600L |
800L |
1000L |
|
Brine tank capacity |
15L |
25L |
40L |
65L |
80L |
|
Multiple safety protection devices |
Water shortage; over temperature ;phase protection |
||||
|
Standard accessories |
Test salt, measure bucket, tool etc 1 set |
||||
|
weight (kg) |
60 |
90 |
180 |
280 |
450 |
|
Power |
AC220V 1Φ20A |
AC220V 1Φ20A |
AC220V 1Φ30A |
AC380V 3Φ15A |
AC380V 3Φ15A |
Features
1. The salt spray test chamber. Completely self contained, the MX series salt spray chamber allows for test items to be subjected to a corrosive environment without introducing other contaminants into the test area.
2. The standard MX salt spray test chamber is compliant with ASTM-B117, MIL-STD-202F, MIL-STD-750B, MIL-STD-810D standards for corrosion testing and can be modified to meet MIL-STD-883C and MIL-STD-19500.
