Quick Details
-
Brand Name:
-
APT
-
Use:
-
FTTH
-
Warranty Time:
-
3 YEAR
-
Optical input power(digital):
-
0~-22dBm
-
Output power:
-
>80dBuV
-
Bandwidth:
-
40-860MHz&1000MHz
-
Power supply:
-
DC5V power supply
-
Wavelength:
-
1100~1600nm&1550nm
-
Optical input power(analog):
-
0~-10dBm
-
Connector:
-
SC/APC or FC/APC or SC/PC or FC/PC
-
output:
-
1 port
-
Work temp:
-
-20 ~ +55℃
-
Certification:
-
ce
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
APT RECEIVER
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
APT
-
Use:
-
FTTH
-
Warranty Time:
-
3 YEAR
-
Optical input power(digital):
-
0~-22dBm
-
Output power:
-
>80dBuV
-
Bandwidth:
-
40-860MHz&1000MHz
-
Power supply:
-
DC5V power supply
-
Wavelength:
-
1100~1600nm&1550nm
-
Optical input power(analog):
-
0~-10dBm
-
Connector:
-
SC/APC or FC/APC or SC/PC or FC/PC
-
output:
-
1 port
-
Work temp:
-
-20 ~ +55℃
-
Certification:
-
ce
Product Description

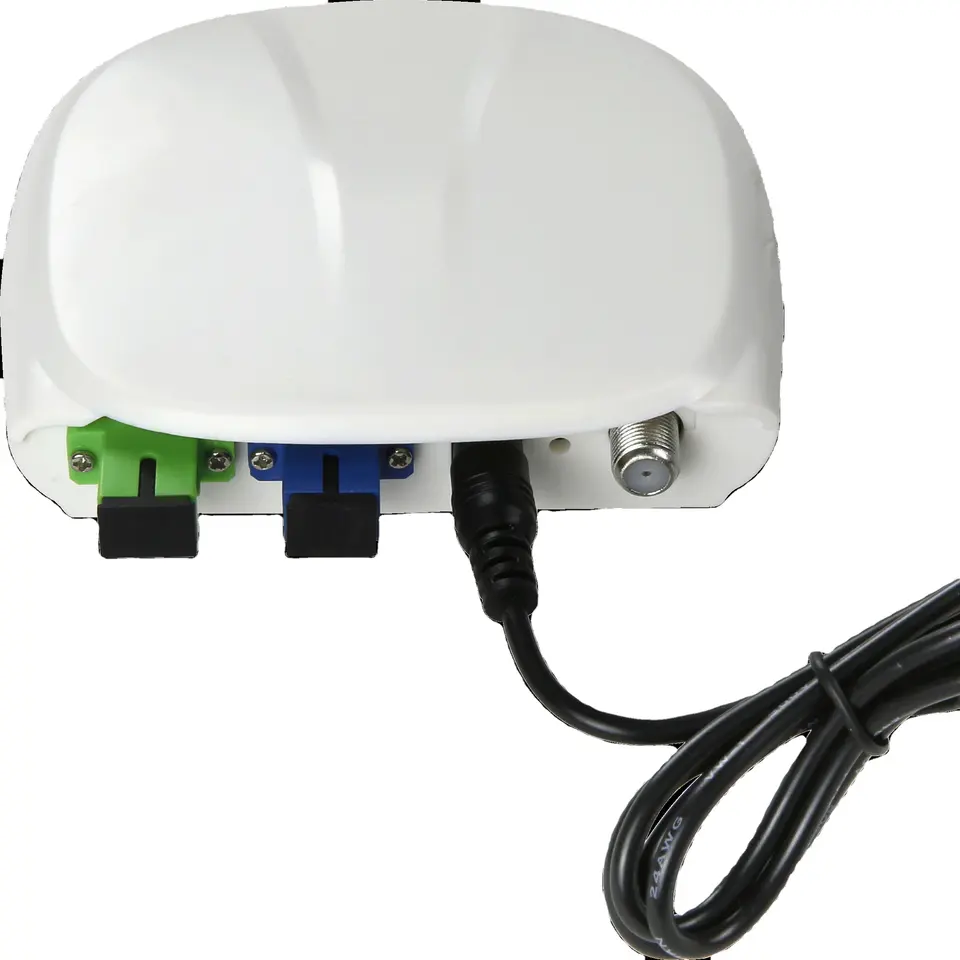

FTTH PON GPON CATV 1550nm optical receiver with SC APC connector
TTH type optical receiver is a home-based optical receiver, cater to the ultimate goal of development of optical access for FTTH
network, analog or digital signal can be realized. The equipment uses low-power optical detector, GaAs and optical control AGC
technology to meet the needs of FTTH CATV reception. Variety of functional products in the applications is slightly different.
FTTH type optical receiver OR19C is with AGC, plug-in photocell. OR19W is with WDM and AGC.
TTH type optical receiver is a home-based optical receiver, cater to the ultimate goal of development of optical access for FTTH
network, analog or digital signal can be realized. The equipment uses low-power optical detector, GaAs and optical control AGC
technology to meet the needs of FTTH CATV reception. Variety of functional products in the applications is slightly different.
FTTH type optical receiver OR19C is with AGC, plug-in photocell. OR19W is with WDM and AGC.
Performance characteristics
* RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception and the analog signal satisfies
-10dBm reception.
* With light input AGC function (AGC range -3~-12dBm).
* Anti-frequency surge protection device, GaAs amplification chip.
* Low-power design, high-efficiency switching power supply ensures high reliabilityand high stability of the power supply. The
overall power consumption is less than 2W, with optical detection circuit.
* Can be built-in WDM to realize single-fiber home (1490/1310/1550nm) tri-network convergence application.
* FC/APC or SC/APCTM or FC/PC or SC/PC, metric or imperial RF interface(customizable according to customer requirements).
* Multi-stage lightning protection devices (TVS transient suppression diodes) and lightning protection systems ensure the safe
operation of the equipment.
* Output power supply can be achieve
* RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception and the analog signal satisfies
-10dBm reception.
* With light input AGC function (AGC range -3~-12dBm).
* Anti-frequency surge protection device, GaAs amplification chip.
* Low-power design, high-efficiency switching power supply ensures high reliabilityand high stability of the power supply. The
overall power consumption is less than 2W, with optical detection circuit.
* Can be built-in WDM to realize single-fiber home (1490/1310/1550nm) tri-network convergence application.
* FC/APC or SC/APCTM or FC/PC or SC/PC, metric or imperial RF interface(customizable according to customer requirements).
* Multi-stage lightning protection devices (TVS transient suppression diodes) and lightning protection systems ensure the safe
operation of the equipment.
* Output power supply can be achieve
Specification
|
item
|
value
|
|
Model Number
|
APT RECEIVER
|
|
Type
|
Optical Receiver
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
APT
|
|
Use
|
FTTH
|
|
Warranty Time
|
3 YEAR
|
|
Network
|
Wired LAN, ONVIF, SDK, TCP, POE, GPRS, wifi
|
|
Optical input power(digital)
|
0~-22dBm
|
|
Output power
|
>80dBuV
|
|
Bandwidth
|
40-860MHz&1000MHz
|
|
Power supply
|
DC5V power supply
|
|
Wavelength
|
1100~1600nm&1550nm
|
|
Optical input power(analog)
|
0~-10dBm
|
|
Connector
|
SC/APC or FC/APC or SC/PC or FC/PC
|
|
output
|
1 port
|
|
Work temp
|
-20 ~ +55℃
|
|
Certification
|
ce
|
