- Product Details
- {{item.text}}
Quick Details
-
Power:
-
1.5-2.2KW
-
Weight:
-
20 KG
-
Dimension(L*W*H):
-
700*500*300mm
-
Product name:
-

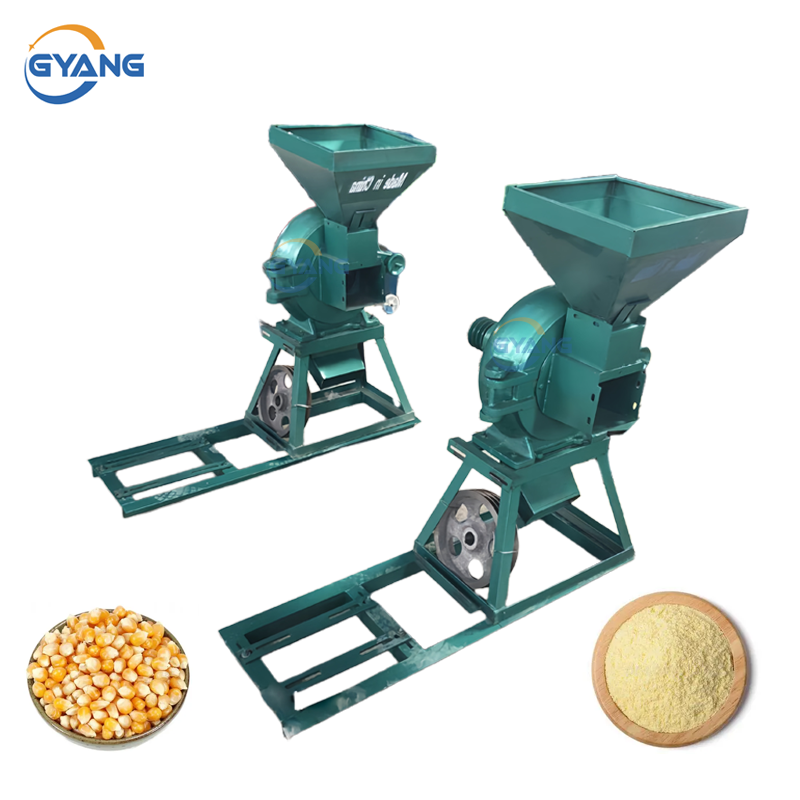

Mini Corn Mill Machine Maize Meal Grinding Machine Corn Grinder
-
Keywords:
-
maize meal grinding machine
-
Application:
-
Food Flour Grinding Mill Machine
-
Function:
-
Multifunction Flour Grinder
-
Usage:
-
Grinding Wheat Maize Corn Rice
-
Type:
-
Grain Processing Equipment
-
Processing:
-
Grain Flour Grinding Machine
-
Feature:
-
Durable
-
Used for:
-
Grain Flour Milling
-
Advantage:
-
Adjustable Fine Powder Size
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Henan Gyang Machinery
-
Voltage:
-
220V/380V
-
Power:
-
1.5-2.2KW
-
Weight:
-
20 KG
-
Dimension(L*W*H):
-
700*500*300mm
-
Product name:
-
Mini Corn Mill Machine Maize Meal Grinding Machine Corn Grinder
-
Keywords:
-
maize meal grinding machine
-
Application:
-
Food Flour Grinding Mill Machine
-
Function:
-
Multifunction Flour Grinder
-
Usage:
-
Grinding Wheat Maize Corn Rice
-
Type:
-
Grain Processing Equipment
-
Processing:
-
Grain Flour Grinding Machine
-
Feature:
-
Durable
-
Used for:
-
Grain Flour Milling
-
Advantage:
-
Adjustable Fine Powder Size
Products Description
Mini Corn Mill Machine Maize Meal Grinding Machine Corn Grinder For Chicken Feed Price
Introduction:
Mini Corn Mill Machine Maize Meal Grinding Machine Corn Grinder For Chicken Feed Price
This machine is a multi-functional crusher, this series of crusher for the tooth nail grinding teeth claw, crushing material range is wide, high production efficiency, crusher can be a variety of grains crushed into powder, leaving no residue, the machine can process chemical raw materials, gypsum powder, fish bone powder, metal calcium and other materials, crushing fineness of 100 mesh, is a multi-functional crusher, crushing material range is wide, Pulverized material leaves no residue.
Mini Corn Mill Machine Maize Meal Grinding Machine Corn Grinder For Chicken Feed Price
Application:
Mini Corn Mill Machine Maize Meal Grinding Machine Corn Grinder For Chicken Feed Price
The machine has a wide range of processing, it can crush corn, wheat, beans, grains, vines, dry and fresh tubers; Leaf shell and other grain and feed, but also can crush gypsum, lead powder, slippery powder, rare earth, chemical, clay, coal and other low hardness minerals
Product Parameters
|
Model
|
GY-YM160
|
GY-YM280
|
GY-YM300
|
GY-YM320
|
GY-YM360
|
|
Spindle speed
|
6300 r/min
|
4000 r/min
|
4000 r/min
|
4000 r/min
|
4000 r/min
|
|
Rotor diameter
|
220mm
|
280mm
|
300mm
|
320mm
|
350mm
|
|
Single hammer quantity
|
3
|
3
|
3
|
5
|
5
|
|
Capacity (kg/h)
|
50-100
|
150-300
|
200-350
|
300-500
|
500-1000
|
|
Power (kw)
|
1.5-2.2
|
2.2-3
|
3-5.5
|
5.5-7.5
|
7.5-11
|
|
Voltage (V)
|
220/380
|
220/380
|
220/380
|
380
|
380
|
|
Motor speed (r/min)
|
2800
|
2800
|
2800
|
1400
|
1400
|
|
Size (mm)
|
700×500x300
|
800x650x300
|
900×700×300
|
1150x550x400
|
1150×580x450
|
|
Weight (kg)
|
20
|
50
|
60
|
110
|
150
|
Details Images
Machine principle:
The machine is mainly composed of the upper body, cover, rotor assembly, screen, feeding device, frame and other six parts, the body and rotor assembly together form the crushing chamber, the rotor assembly room is the main working parts, the material crushing is completed in the crushing chamber. When the material enters the crushing chamber, it is rapidly broken into fine powder and paste under the action of the circular teeth and flat teeth, and discharged through the screen hole through the discharge port under the action of centrifugal force and air flow.
The machine has the advantages of advanced design, reasonable structure, reliable performance, convenient use and maintenance, less power consumption, small footprint and high production efficiency.
The machine has the advantages of small size, high efficiency, convenient operation and maintenance, simple process configuration, low power consumption, built-in rotor, grinding without dead Angle, and more uniform finished particle size.
Body insert seal, completely avoid dust spill, clean working environment.
This machine can be used for ordinary crushing, fine powder and micro crushing
The fineness of the material crushed by this machine is determined by the size of the screen aperture.
Customers can reasonably choose screens according to the granularity requirements of raw materials.
The main working parts of the machine are the flat teeth on the installed rotor. The round teeth can crush all kinds of granular raw materials. It is an economical crushing equipment widely used at present, with the advantages of small size, light weight, easy installation, operation and maintenance, and high production efficiency.
