Quick Details
-
Frequency:
-
27.12 mhz
-
Welding Area:
-
Mould Size
-
Dimensions:
-
1.5*1.4*2.0m
-
Use:
-
welding and embossing
-
Weight (KG):
-
415 KG
-
Certificate:
-
CE
-
Upper electrode:
-
400mm
-
Lower electrode:
-
1000x80mm
-
Oscillation Tube:
-
8T85RB
-
Weight:
-
250KG
-
Power:
-
5KW
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
davison
-
Voltage:
-
380v/415v
-
Frequency:
-
27.12 mhz
-
Welding Area:
-
Mould Size
-
Dimensions:
-
1.5*1.4*2.0m
-
Use:
-
welding and embossing
-
Weight (KG):
-
415 KG
-
Certificate:
-
CE
-
Upper electrode:
-
400mm
-
Lower electrode:
-
1000x80mm
-
Oscillation Tube:
-
8T85RB
-
Weight:
-
250KG
-
Power:
-
5KW

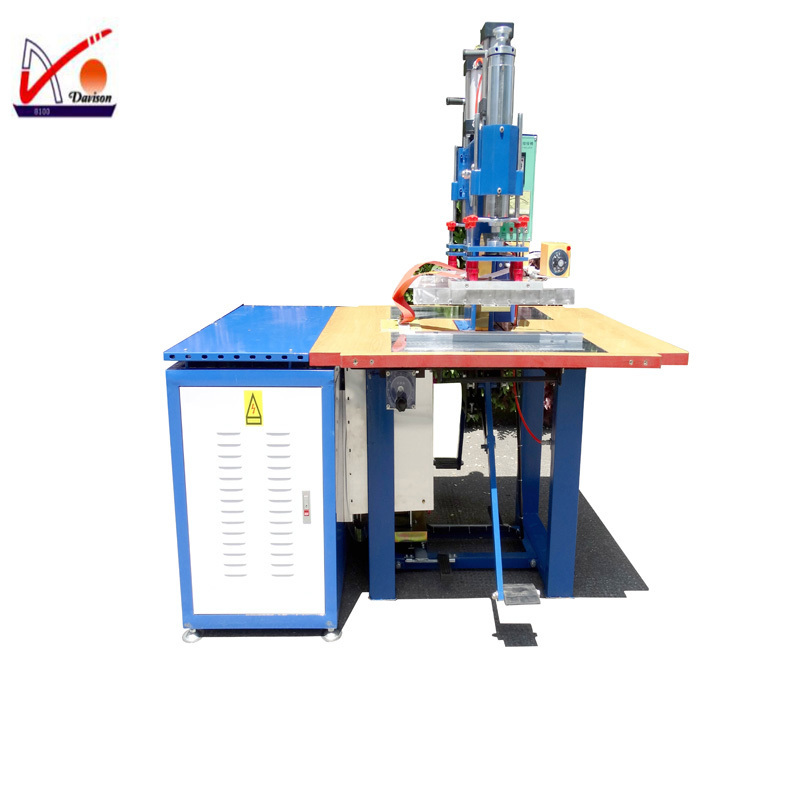

5KW good quality high frequency pvc welding machine for stretch ceiling,is suitable for raincoat ,PVC stationery welding etc. High-efficiency is its advantage.
SPECIFICATION (included 5KW/8kw and 10kw):
| Item No. | DXJT5-2-5KW | DXJT5-2-8KW | DXJT5-2-10KW |
| Power supply | 380Volts 50Hz | 380Volts 50Hz | 380Volts 50Hz |
| Input power | 8KW | 10KW | 12KW |
| Output power | 5KW | 8KW | 10KW |
| High frequency | 27.12Mhz | 27.12Mhz | 27.12Mhz |
| Main Body | Length: 1,710mm | Length: 1,840mm | Length: 1,940mm |
| Width: 1,060mm | Width: 1,300mm | Width: 1,400mm | |
| Height: 1,600mm | Height: 1,600mm | Height: 1,600mm | |
| Plywood Box Packing Size | Length: 1,760mm | Length: 1,890mm | Length: 1,950mm |
| Width: 1,110mm | Width: 1,350mm | Width: 1,450mm | |
| Height: 1,800mm | Height: 1,800mm | Height: 1,800mm | |
| 3.5165CBM | 4.5927CBM | 4.3456CBM | |
| N. W. | 290.00 kgs | 350.00 kgs | 380.00 kgs |
| G. W. | 340.00 kgs | 400.00 kgs | 430.00 kgs |
| Mini. Order | 1 set | 1 set | 1 set |
APPLICATION:
inflatable products: airbed, inflatable toy, inflatable sofa, swim ring, swing pool, tent, auto interior decoration, sun visor, embossing on blankets, garments, shoes, hats, blister package, stationery, tool, bag & suitcase, bath curtain, rainwear, umbrella, handbag, packaging bag, wallet, leather belt, mobile cleaner, electrical hot water bag, reflective products, baby safety seat, medical products, etc.
1. Help you find the suitable machine for your product.
2. You are always welcome to visit our factory.
3. 30%deposit
4. Machine manufacture and quality control during whole process.
5. Show you the finished product.
After-sales service
1. Get your confirmation before delivery.
2. Balance payment against B/L.
3. Timely solve your working problems.
4. If necessary, we will send technician to guide you for machine usage.
5. One year quality guarantee for the machine
