Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUIPAI, HUIPAI
-
Model Number:
-
JE
-
Product Name:
-

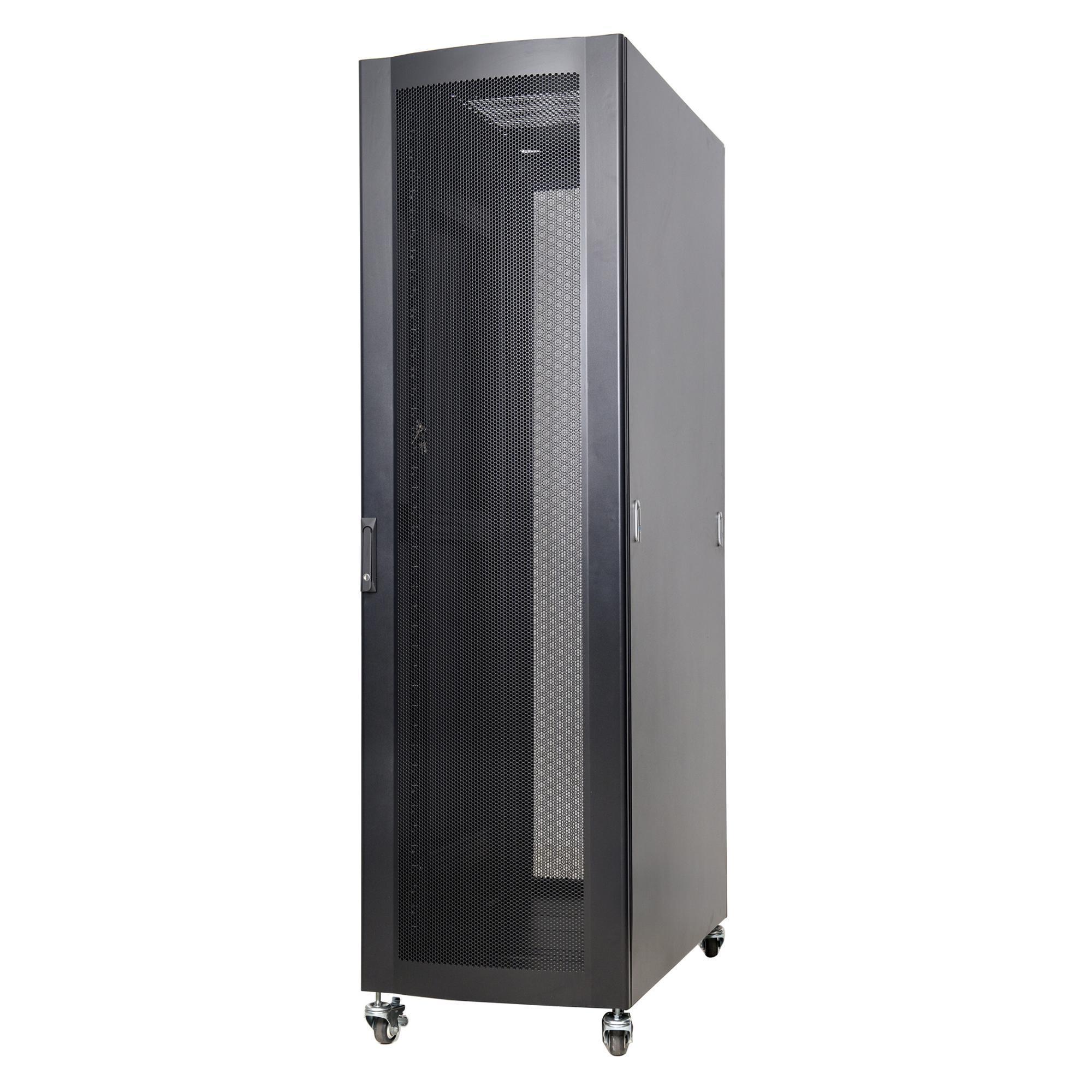

42u 800x1000 server rack
-
Model:
-
JE
-
Color:
-
Any color
-
Certificate:
-
CE,ROHS,ISO9001
-
Packing:
-
Flat carton
-
Capacity:
-
42U,48U
-
Minimum Order:
-
10
-
Payment:
-
T/T
Quick Details
-
Cabinet Standard:
-
Standard Configurations
-
Size:
-
42U,48U
-
Material:
-
Cold-rolled steel, SPCC cold rolled
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUIPAI, HUIPAI
-
Model Number:
-
JE
-
Product Name:
-
42u 800x1000 server rack
-
Model:
-
JE
-
Color:
-
Any color
-
Certificate:
-
CE,ROHS,ISO9001
-
Packing:
-
Flat carton
-
Capacity:
-
42U,48U
-
Minimum Order:
-
10
-
Payment:
-
T/T
Ningbo Factory Telecom SPCC Standing Network Rack 27u Switch Rack
| Ningbo Factory Telecom SPCC Standing Network Rack 27u Switch Rack | |
| Standards | Comply with ANSI/EIA RS-310-D , IEC297-2 , DIN41494; PART1 , DIN41494; PART7 Standard. |
| Features | |
| 1. |
Exquisite design with precise dimensions and craftsmanship; |
| 2. |
Two side panels for each side can be separately open with locks,which are easy to operation and maintenance; |
| 3. |
Two back sides with multifunctional cable routing panels; |
| 4. |
High-class locks; |
| 5. |
Casters and support feet can be installed simultaneously; |
| 6. |
Optional pedestals for fixation,cable routing,ventilation,and rat proof; |
| 7. |
Curved front screen door & back double screen door enable equipment to ventilate well. |
| 8. |
Various optional accessories |
| Load capacity |
|
Static load: 800KG |
|
Main material |
| 1. cold-rolled steel; |
|
2. Thickness of Steel: mounting profile: 2.0mm; mounting angle: 1.5mm; others: 1.2mm. |
| Surface treatment | |
| 1. | Degreasing, pickling, phosphating, laundering, powder coating |
| Protection class | |
| IP20 | |
| Standard Configurations | |||||
| Item | name | quantity | nit | materials | surface treatment |
| 1. | top covers | 1 | pic | 1.2 mm cold-rolled steel | powder coating |
| 2. | side panels | 4 | pic | 1.0 mm cold-rolled steel | powder coating |
| 3. | front doors | 1 | pic |
1.2
mm
cold-rolled steel
|
powder coating
|
| 4. | left back doors | 1 | pic | 1.2 mm cold-rolled steel | powder coating |
| 5. | right back doors | 1 | pic |
1.2
mm
cold-rolled steel
|
powder coating
|
| 6. | rails | 1 | pic | 1.5 mm cold-rolled steel | powder coating |
| 7. | cable manegers | 2 | pic | 1.5 mm cold-rolled steel | powder coating |
| 8. | beams | 6 | pic | 2.0 mm cold-rolled steel | powder coating |
| 9. | frames | 2 | pic | 2.0 mm cold-rolled steel | powder coating |
| 10. | triangle fixing plates | 4 | pic | 2.0 mm cold-rolled steel | powder coating |
| 11. | casters | 4 | pic | --- | --- |
| 12. | M12 support feet | 4 | pic | --- | --- |
| 13. | cage nuts | 40 | pic | --- | --- |
| Type | capacity | width (mm) | depth (mm) | height (mm) | packing dimensions | volume |
| JA6825 | 25U | 600 | 800 | 1235 | 785*110*467 | 0.268 |
| JA6125 | 25U | 600 | 1000 | 1235 | 985*110*467 | 0.293 |
| JA6842 | 42U | 600 | 800 | 1991 | 785*110*845 | 0.419 |
| JA6142 | 42U | 600 | 1000 | 1991 | 985*110*845 | 0.438 |
| JA6848 | 48U | 600 | 800 | 2258 | 785*110*977 | 0.463 |
| JA6148 | 48U | 800 | 1000 | 2258 | 985*110*977 | 0.49 |
| JA8142 | 42U | 750 | 1000 | 1991 | 985*110*845 | 0.554 |
| JA8148 | 48U | 750 | 1000 | 2258 | 985*110*977 | 0.626 |
f=front door
