Quick Details
-
Dimension (L*W*H):
-
50*40*100
-
Weight:
-
65
-
Rated voltage:
-
Rack Lifepo4 Battery
-
Working voltage range:
-
48-1000V
-
Certification:
-
UN38.3/UL1973/IEC62619
-
Module dimension:
-
482.6*416.2*132.5MM
-
Module weight:
-
65KG
-
Design lifetime:
-
≥10 years
-
Communication interfaces:
-
CAN2.0/RS485/Dry
-
OEM/ODM:
-
Customized OEM ODM Battery Pack
-
Capacity:
-
10-80kwh
Quick Details
-
Model Number:
-
TKHV102280
-
Brand Name:
-
Dawnice
-
Place of Origin:
-
Guangdong, China
-
Dimension (L*W*H):
-
50*40*100
-
Weight:
-
65
-
Rated voltage:
-
Rack Lifepo4 Battery
-
Working voltage range:
-
48-1000V
-
Certification:
-
UN38.3/UL1973/IEC62619
-
Module dimension:
-
482.6*416.2*132.5MM
-
Module weight:
-
65KG
-
Design lifetime:
-
≥10 years
-
Communication interfaces:
-
CAN2.0/RS485/Dry
-
OEM/ODM:
-
Customized OEM ODM Battery Pack
-
Capacity:
-
10-80kwh
Products Description

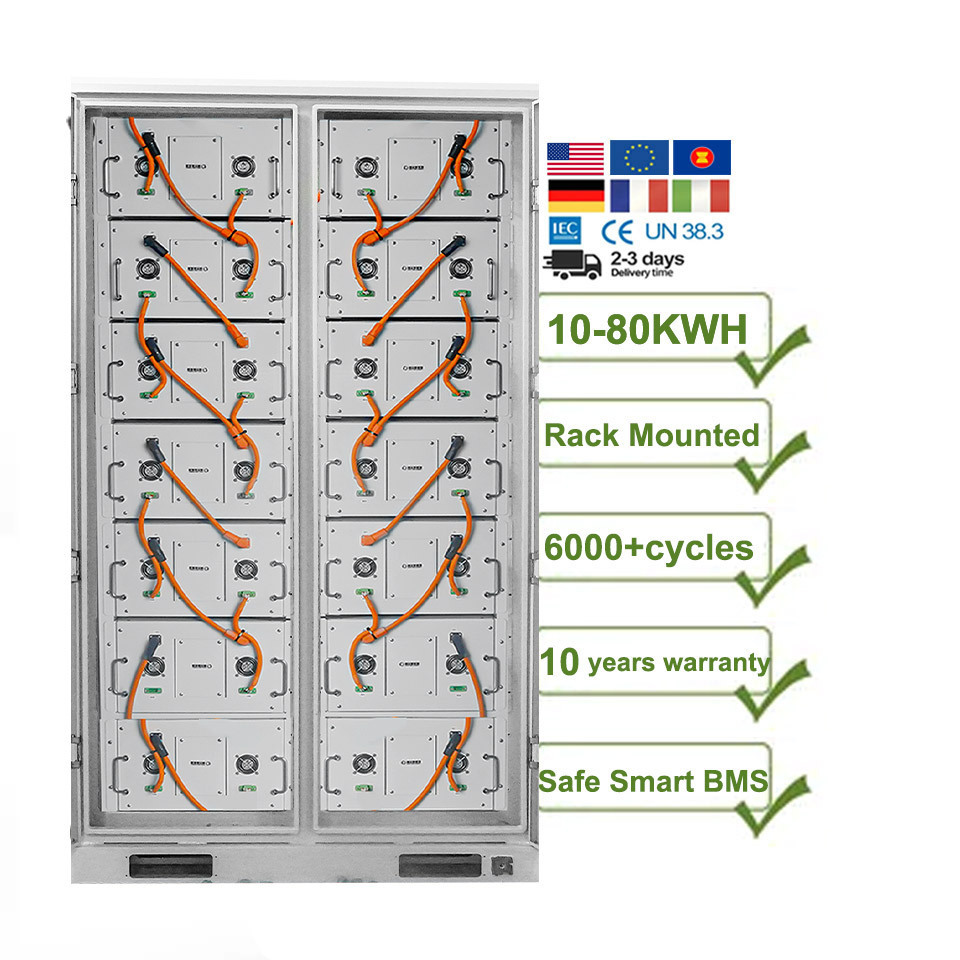

Rack Mounted Lithium LiFePO4 Battery
51.2V 5KWH/10KWH/20KWH are most popular and widely used in solar storage system(Off Grid Solar System&Hybrid Solar System ). They can be connected in Parallel to store more energy.
Features
:
1.High cycle life
>3000 cycles @80% DoD for effectively lower total cost of ownership.
2.Longer service life
Low maintenance batteries with stable chemistry. Easily monitor state of charge (SoC) of smart models.
3.Built in circuit protection
Battery Management Systems (BMS) are incorporated against abuse.
4.Better storage
Up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.
5.Quickly recharge
Save time and increase productivity with less down time
thanks to superior charge/discharge efficiency.
6.Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is usually high:up to +60°C
7.Many inverters compatible
Low maintenance batteries with stable chemistry. Easily monitor state of charge (SoC) of smart models.
3.Built in circuit protection
Battery Management Systems (BMS) are incorporated against abuse.
4.Better storage
Up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.
5.Quickly recharge
Save time and increase productivity with less down time
thanks to superior charge/discharge efficiency.
6.Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is usually high:up to +60°C
7.Many inverters compatible
Provide white and black shells, two types can be selected
|
Service
|
OEM/ODM
|
|
Warranty
|
5Years
|
|
Parallel
|
Max 32 Parallel
|
|
Cycle Life
|
6000+
|
|
Energy
|
10Kwh
|
|
Nominal Voltage
|
51.2V
|
|
Max Charge Voltage
|
58.4V
|
|
Maximum Charging Current
|
200A (1C)
|
|
Maximum Dicharge Current
|
200A (1C)
|
|
Charging Temperature
|
0~55°C
|
|
Discharging Temperature
|
-30~60°C
|
|
Battery Configation
|
16S1P
|
|
Built-in BMS
|
Smart 16S 200A
|
|
Battery Size
|
L480*W440*H225 mm
|
|
Battery Case
|
Stainless Steel Case
|
|
Components
|
16 Cells+BMS+Metal Case
|
|
Certification
|
MSDS, CE, UN38.3, RoHS, FCC, EMC
|
|
oltage
|
48 V
|
48 V
|
48 V
|
48 V
|
|||
|
Capacity
|
50Ah
|
100Ah
|
200Ah
|
250Ah
|
|||
|
Energy
|
2.4Kwh
|
5.12Kwh
|
10.24Kwh
|
12.80Kwh
|
|||
|
Operation voltage
|
35.25-54.75 Vdc
|
37.6-54.75Vdc
|
|
|
|||
|
Max.charging voltage
|
54.75Vdc
|
54.75Vdc
|
|
|
|||
|
Max.charging and discharging current
|
50A
|
100A
|
|
|
|||
|
Max Power
|
2400W
|
5120W
|
7680W
|
12800W
|
|||
|
Life time(25°C)
|
10 years
|
|
|
|
|||
|
Life cycles(80% DOD, 25°C)
|
6000 Cycles
|
|
|
|
|||
|
Enclosure protection rating
|
IP65
|
|
|
|
|||
|
Dimensions(L×W×H)mm
|
482*410*89
|
482*400*177
|
482*430*222
|
482*500*280
|
|||
|
Weight
|
24KG
|
46KG
|
80KG
|
100KG
|
|||
|
Lithium Battery Standard
|
UL,IEC, UN38.3, ROHS,CE
|
|
|
|
|||
Application project
Our advantages :
1. Cells : A grade full new quality prismatic cells. with original QR codes ,never use second hand cells. (Cells brand: REPT,GANFENG ,LISHEN ,GOTION). With 10-15 years typical lifespan.
1. Cells : A grade full new quality prismatic cells. with original QR codes ,never use second hand cells. (Cells brand: REPT,GANFENG ,LISHEN ,GOTION). With 10-15 years typical lifespan.
2. Protection : Each battery built-in BMS -- Battery Management System.
3. Communication port : RS485/RS232/CAN,
4. Compatible : All hybrid and off grid inverter (Except Huawei, all inverters on the market can be make compatible by our engineer. only need to provide the inverter communication protocol)
5. Warranty : 5
years. For long term cooperation customer, we can up to 10 years.
6. Maintenance free & Low self discharge & Fast & efficient charging.
7. Free cables + paper version user manual.
Packing & Delivery
Packing:
1. All shipping goods are 100% tested and packed very well.
2. Customized package available. Boxing packaging,carton case and wooden support or as your requirement.
1. All shipping goods are 100% tested and packed very well.
2. Customized package available. Boxing packaging,carton case and wooden support or as your requirement.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods since they are high capacity battery?
A: We have long-term cooperated forwarders who are professional at battery shipment.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Q5. Do you offer guarantee for the products?
A: Yes, our products have a 12 months warranty period. If there is any quality problem in the process of using the product, please
feel free to contact us.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods since they are high capacity battery?
A: We have long-term cooperated forwarders who are professional at battery shipment.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Q5. Do you offer guarantee for the products?
A: Yes, our products have a 12 months warranty period. If there is any quality problem in the process of using the product, please
feel free to contact us.
