Quick Details
-
Application:
-
High speed railways, highways, tunnels, landfills, High speed railways, highways, tunnels, landfills
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China, China
-
Brand Name:
-
best, Tai'an Best
-
Model Number:
-
TGB-114, 100-1000G
-
Type:
-
geotextil
-
Material:
-
Polyester / Polypropylene
-
Length:
-
50-100m/roll (at Request)
-
Width:
-
2-6m
-
Weight:
-
100-1000g/sqm
-
Color:
-
White black green yellow or as your requirements
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
High speed railways, highways, tunnels, landfills, High speed railways, highways, tunnels, landfills
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China, China
-
Brand Name:
-
best, Tai'an Best
-
Model Number:
-
TGB-114, 100-1000G
-
Type:
-
geotextil
-
Material:
-
Polyester / Polypropylene
-
Length:
-
50-100m/roll (at Request)
-
Width:
-
2-6m
-
Weight:
-
100-1000g/sqm
-
Color:
-
White black green yellow or as your requirements
Product Overview

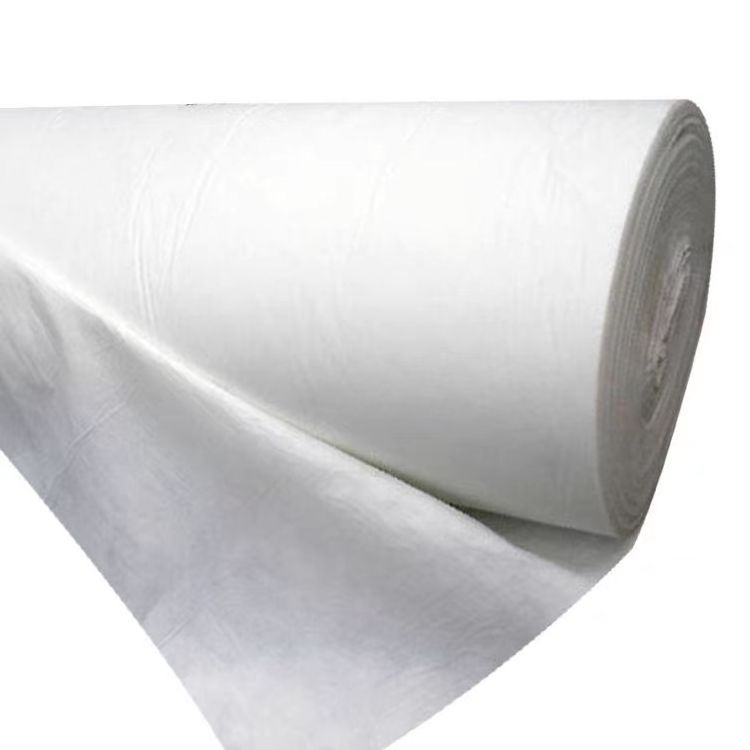

Polyester/polypropylene filament needle punched non-woven geotextile, it is geotechnical engineering and civil engineering applications in a geosynthetics, is through the polyester/polypropylene filament into a network and consolidation method, the fiber arranged into a three-dimensional structure The In addition to good mechanical properties, but also has a good vertical and horizontal drainage performance and good extension properties and high resistance to biological, acid and alkali, anti-aging and other chemical stability. At the same time, it also has a wide pore size range, tortuous pore distribution, excellent permeability and filtration performance.
Product Description
Product Property
1)High strength, puncture resistance and strong;
2)Long period isolation, good resistance to frost, acid, corrosion, anti-microbial, anti-aging;
3)Excellent permeability, filtration, protection Soil, played isolation, drainage filters, protective role;
4)Excellent protection performance: product the waterproof layer from the mechanical damage.
5)UV resistant.
6)Low cost, excellent price, simple construction, easy to use.
|
Geotextil Technical Parameter (GB standard)
|
|
|
|
|
|
|
||||||
|
Gram weight
|
Thickness(mm)
|
Breaking strength(kn/m)
|
CBR burst strength(KN)
|
Elongation at break(%）
|
Tear Strength (KN)
|
Sieve size O99(O35)mm
|
||||||
|
100
|
0.9
|
2.5
|
0.3
|
25-100
|
0.08
|
0.07-2.0
|
||||||
|
150
|
1.3
|
4.5
|
0.6
|
25-100
|
0.12
|
0.07-2.0
|
||||||
|
200
|
1.7
|
6.5
|
0.9
|
25-100
|
0.16
|
0.07-2.0
|
||||||
|
250
|
2.1
|
8.0
|
1.2
|
25-100
|
0.20
|
0.07-2.0
|
||||||
|
300
|
2.4
|
9.5
|
1.5
|
25-100
|
0.24
|
0.07-2.0
|
||||||
|
350
|
2.7
|
11.0
|
1.8
|
25-100
|
0.28
|
0.07-2.0
|
||||||
|
400
|
3.0
|
12.5
|
2.1
|
25-100
|
0.33
|
0.07-2.0
|
||||||
|
450
|
3.3
|
14.0
|
2.4
|
25-100
|
0.38
|
0.07-2.0
|
||||||
|
500
|
3.6
|
16.0
|
2.7
|
25-100
|
0.42
|
0.07-2.0
|
||||||
|
600
|
4.1
|
19.0
|
3.2
|
25-100
|
0.46
|
0.07-2.0
|
||||||
|
800
|
5.0
|
25.0
|
4.0
|
25-100
|
0.60
|
0.07-2.0
|
||||||
Products Application
1.Water conservancy project and hydropower projects.
2.Road paving, railway.
3.Airport and port.
4.River band protection and tunnel.
5. Environmental protection, etc.
2.Road paving, railway.
3.Airport and port.
4.River band protection and tunnel.
5. Environmental protection, etc.
