Quick Details
-
Size:
-
1200*2490*3990mm
-
Place of Origin:
-
Shandong, China
-
Axle:
-
three
-
Axle brand:
-
13T/16T FUWA/BPW
-
tire:
-
12.00R22.5
-
Suspension:
-
mechanical suspension or air suspension
-
spring leaf:
-
90(W)mm*13(thickness)mm*10layers
-
ABS:
-
optional
-
Support legs:
-
JOST Brand C200
-
OEM:
-
welcome
-
Volume:
-
35m3
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
42t
-
Brand Name:
-
TONGYA
-
Size:
-
1200*2490*3990mm
-
Place of Origin:
-
Shandong, China
-
Axle:
-
three
-
Axle brand:
-
13T/16T FUWA/BPW
-
tire:
-
12.00R22.5
-
Suspension:
-
mechanical suspension or air suspension
-
spring leaf:
-
90(W)mm*13(thickness)mm*10layers
-
ABS:
-
optional
-
Support legs:
-
JOST Brand C200
-
OEM:
-
welcome
-
Volume:
-
35m3
Product Description
Bulk Cement Tanker Series
acid tanker semi trailer
water tank truck
Fuel Tanker Trailer Series
skeleton semi trailer
Cargo Trailer Series
Flatbed container
Low bed semi trailer
Road sweeper

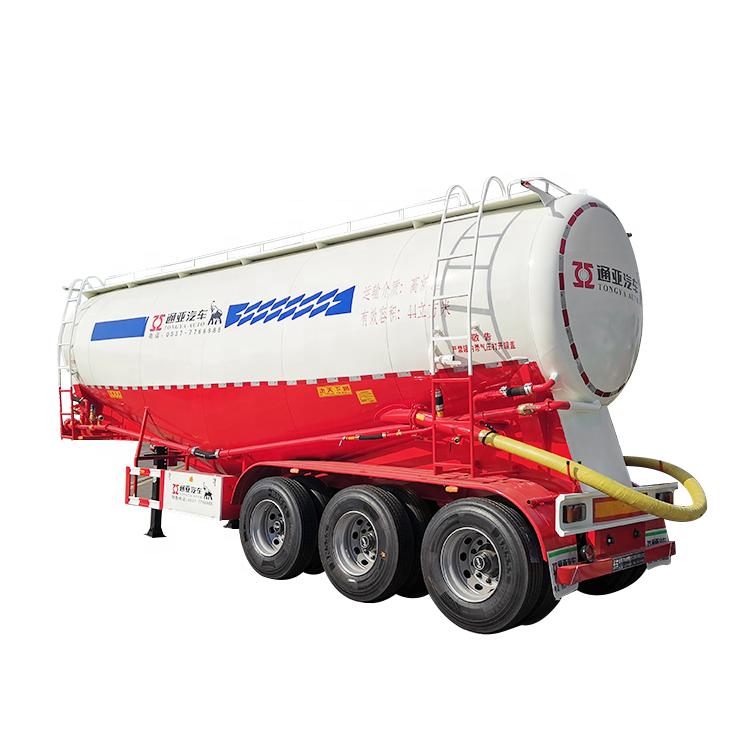

TONGYA Factory Bulk Powder Cement Transport Semi Trailer Truck Cement Trailer
Advantage:
A, No.1 sales volume in China market for 8 years since 2011
B, Advanced technology, equipment and production line
C, Quality guarantee, best cost performance
D, Fast and completely discharge, Less residual
E, We are manufacturer, provide customized service, design as the customers’ every request
A, No.1 sales volume in China market for 8 years since 2011
B, Advanced technology, equipment and production line
C, Quality guarantee, best cost performance
D, Fast and completely discharge, Less residual
E, We are manufacturer, provide customized service, design as the customers’ every request
Usage:Transport bulk cement, coal ash, fly ash, mineral powder,etc
The tanker body and main beam: cutting by laser cutter and welding by laser positioning welding machine, good quality with beautiful welding.
The thickness are designed depend on the loading capacity of the trailer and road condition.
The common material is Q345, 5mm or 4mm thickness
The thickness are designed depend on the loading capacity of the trailer and road condition.
The common material is Q345, 5mm or 4mm thickness
Axles:
Fuwa brand axles, the best brand in China, good quality and durable.
The common type is 13T, you can choose the number and capacity,model accroding to loading capacity of the trailer.
Fuwa brand axles, the best brand in China, good quality and durable.
The common type is 13T, you can choose the number and capacity,model accroding to loading capacity of the trailer.
Other details show
35 m3 3 axles powder tanker
|
Type:
|
Bulk cement tanker semi trailer
|
|
|
|
||||
|
Model:
|
CTY9401GSN
|
|
|
|
||||
|
Usage:
|
Transport bulk cement, coal ash, mineral powder,etc
|
|
|
|
||||
|
MOQ
|
1 unit
|
|
|
|
||||
|
Weight:
|
Tare Weight
|
9 T
|
|
|
||||
|
|
Loading capacity
|
42 T
|
|
|
||||
|
|
Total weight
|
51 T
|
|
|
||||
|
Dimensions:
|
Dimension
|
11000×2500*3800mm
(The final dimensions depend on the final design drawings) |
|
|
||||
|
|
Tanker capacity
|
35m3 (35000L)
|
|
|
||||
|
Tanker body:
|
Design/welding technology
|
Heavy duty and extra durability designed;
welding by automatic Submerged-Arc processes. |
|
|
||||
|
|
Tanker body
|
The tanker body made of 5mm thickness steel
|
|
|
||||
|
|
Bottom chassis
|
High strength Q345B steel
|
|
|
||||
|
|
Tanker shape
|
“V” shape
|
|
|
||||
|
|
Silo
|
1 silo
|
|
|
||||
|
|
Manhole:
|
2 pieces, (Diameter is 500mm)
|
|
|
||||
|
|
Discharge mouth
|
4 inch Discharge mouth
|
|
|
||||
|
|
Safety pressure valve
|
Standard
|
|
|
||||
|
|
Discharge hose
|
8m with Hose carries, the length is according to customer requirement
|
|
|
||||
|
|
Air compressor
|
12m3 double-cylinder air compressor, Bohai brand (Chinese famous brand)
|
|
|
||||
|
|
Engine
|
Diesel Engine,Weichai 4102 engine (Chinese famous brand)
|
|
|
||||
|
|
Rear ladder and handrail
|
With, as the photos shows
|
|
|
||||
|
|
Retention volume
|
<0.3%
|
|
|
||||
|
Axle
|
3 axles *square axle with 13 tons capacity, FUWA brand (Chinese best brand)
|
|
|
|
||||
|
King Pin
|
2.00’’(50#) bolting king pin, JOST brand,German brand,made in China
|
|
|
|
||||
|
Suspension
|
Heavy duty tri-axle suspension with equalizers, American design (high-strength type)
|
|
|
|
||||
|
Steel Spring
|
Six sets of reliable local brand, 10pcs leaf spring, 13mm thickness, 90mm width
|
|
|
|
||||
|
Landing legs
|
JOST brand type, manual operation landing legs with sand shoe
|
|
|
|
||||
|
|
Tire specs
|
12R22.5, Triangle brand (Chinese famous brand)
|
|
|
||||
|
|
Rim
|
9.00-22.5,(Chinese famous brand)
|
|
|
||||
|
|
Number of wheel
|
13 pieces(including one spare wheel)
|
|
|
||||
|
|
Brake system
|
WABCO relay valve;
Four double and two single brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector. |
|
|
||||
|
|
ABS system
|
Without（Can be choose freely,450 USD/set）
|
|
|
||||
|
|
Electrical:
|
One unit of 24V 7-pin ISO 1185 socket; LED light
(standard rear light, turn light, rear reflector, side light, side reflector etc.) |
|
|
||||
|
|
Painting
|
Sand blasting before painting;
one coats of primer, anti-corrosion; two coat of finish painting; color advised by client |
|
|
||||
|
|
Marking
|
Standard (Can spray customer LOGO)
|
|
|
||||
|
|
Side Guard
|
Standard
|
|
|
||||
|
|
spare wheel carrier
|
Two set of heavy duty spare wheel carriers, including a riser.
|
|
|
||||
|
|
Tools box
|
One piece (1. 0*0. 5*0. 5m)
(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) |
|
|
||||
|
Note: All the details not mentioned should comply with Chinese regulations.
|
|
|
|
|
||||
|
Shipment terms:
|
Shipping by flat rack container, RO-RO or bulk cargo ship,depend on the port of destination
|
|
|
|
||||
|
Delivery time:
|
Production time 20 workdays after down payment
|
|
|
|
||||
|
Quality Guarantee:
|
12 months of quality guarantee is provided,
Following we'll provide qualified spare parts with the price we get from our suppliers, and sent engineer for maintenance if necessary at your cost. |
|
|
|
||||
|
|
A, 30% deposit by T/T, 70% balance payment paid before delivery after finished inspection
|
|
|
|
||||
|
|
B, 30% deposit by T/T, 70% balance payment paid against the bill of lading copy
|
|
|
|
||||
|
|
C, 30% contract value as the deposit by T/T, 70% L/C at sight
|
|
|
|
||||
If you need any other configuration, please contact us
