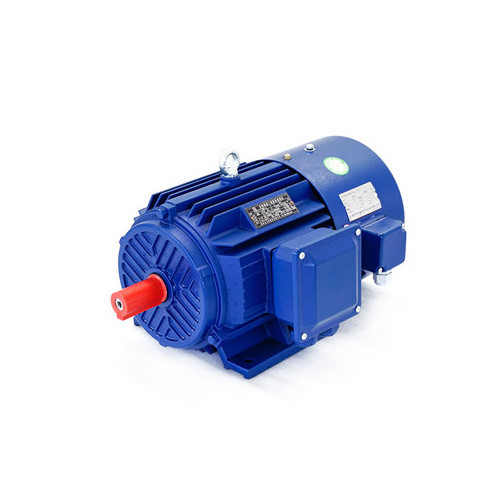

132M 4 poles 7.5KW blender electric motor speed adjustable three-phase variable frequency motor

FOB Reference Price: Get Latest Price

≥1 Sets

US $150

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: YVF2-132M-4

Frequency:: 50Hz/60 Hz

Color:: Customer Request

Application:: Machinery Equipment

Warranty:: 1year

Duty:: S1

Rated Voltage:: 380V

Protection class:: IP54/IP55

Quick Details

AC Voltage:: 380 V

Place of Origin:: Zhejiang, China

Brand Name:: Yilong

Model Number:: YVF2-132M-4

Frequency:: 50Hz/60 Hz

Color:: Customer Request

Application:: Machinery Equipment

Warranty:: 1year

Duty:: S1

Rated Voltage:: 380V

Protection class:: IP54/IP55

Products Description

132M 4 poles 7.5KW blender electric motor speed adjustable three-phase variable frequency motor

Technical data of YVF2-132M-4 7.5KW

Power: 7.5KW

Rated current:15.3A

Rated torque: 47.7N.m

Frequency range(constant torque): 5-50 Hz

Frequency range(constant power): 50-100 Hz

Joined use with electronic frequency converter, this series of motors can realize stepless speed regulation within the range of 150-2750rpm (4 poles). Its electrical performance and installation dimensions are in accordance with the national standard JB/T7118 and international IEC standard.

It is widely used in transportation, metallurgy, textile, printing and dyeing, chemical, mining, fan, water pump and other
industries.

Technical data of YVF2 series frequency variable and speed-adjustable three-phase asynchronous motor
Center height of frame	80-355mm
Power range	0.55-315 KW
Rated voltage	380V(other voltage, please consult)
Rated frequency	50Hz or 60Hz
Protection class	IP54 or IP55
Insulation class	F
Duty type	S1
