Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yassian
-
Condition:
-
New
-
Color:
-
Yellow or as your requirement
-
Certification:
-
ISO 9001:2008
-
Material:
-
C80/30MnB
-
Payment:
-
T/T,L/C
-
Process:
-
Heat Treatment
-
MOQ:
-
1 Piece
-
Packing:
-
PLYWOOD PALLET
-
Delivery:
-
15-30DAYS
-
Hardness:
-
HB320~360 or HB440~480
Quick Details
-
Suitable Excavator(ton):
-
1.2ton, 5otn, 20ton, 70ton, 1ton, 4ton, 9ton, 50ton, 35ton, 2ton, 15ton, 80ton, 150ton, 8ton, 2.5ton, 3ton, 45ton, 12ton, 18ton, 25ton, 30ton, 40ton, 0.8ton, 60ton, 90ton, 100ton, 1.6ton, 120ton
-
Bucket capacity:
-
2.1m³
-
Bucket type:
-
Standard bucket
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yassian
-
Condition:
-
New
-
Color:
-
Yellow or as your requirement
-
Certification:
-
ISO 9001:2008
-
Material:
-
C80/30MnB
-
Payment:
-
T/T,L/C
-
Process:
-
Heat Treatment
-
MOQ:
-
1 Piece
-
Packing:
-
PLYWOOD PALLET
-
Delivery:
-
15-30DAYS
-
Hardness:
-
HB320~360 or HB440~480

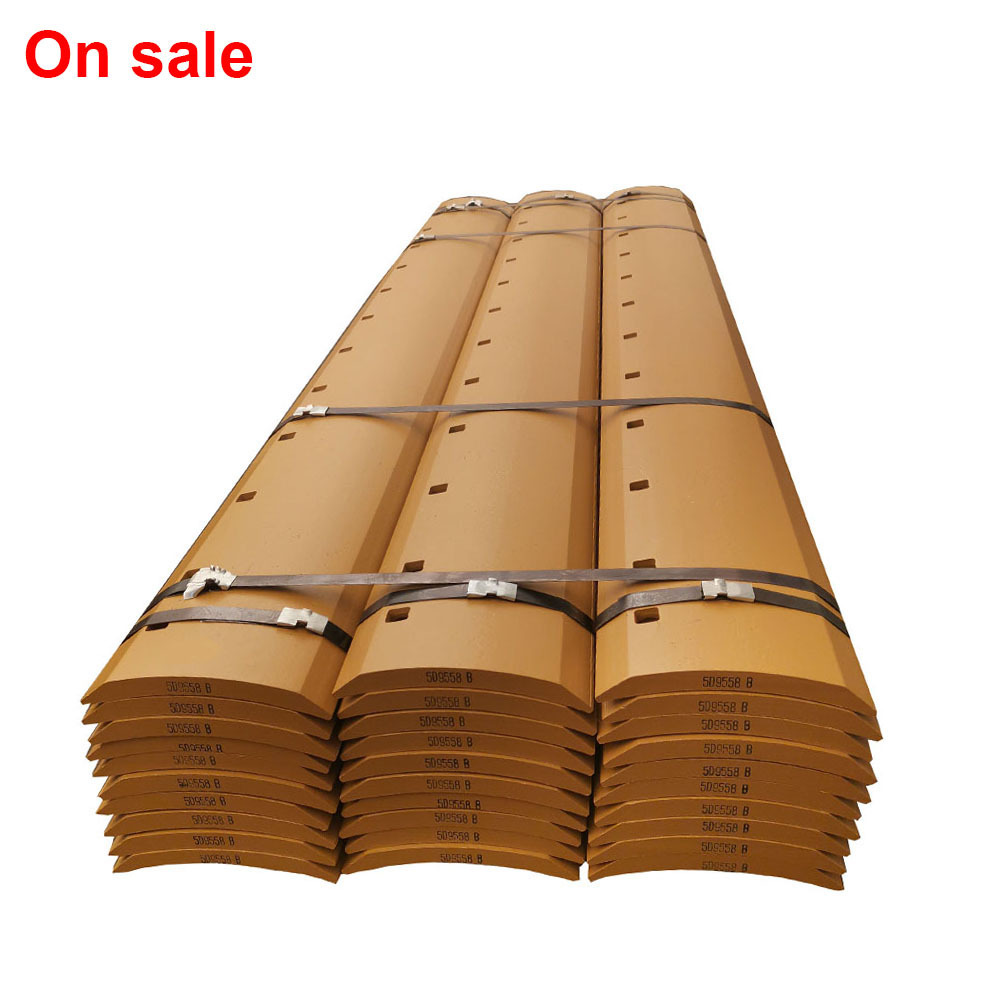

| Grader blade | |||
| Material | High-carbon steel (C80); Boron steel (30MnB) | Part No. | 5D9553 |
| Color | Yellow or Customer Required | Size | 1828mm(6ft)*152mm*16mm 13holes*5/8" |
| Logo | Yassian or Customer Required | G.W. | 30.3 kg |
| Hardness | HB280-500 | N.W. | 32.3 kg |
| MOQ | 1 pc | Packing | Plywood pallet |
| Delivery time | 25-30 days (one container) | Suitable machine | Caterpillar, Komatsu, JCB ... |
| Warranty | 24 months | Loading port | Ningbo; Shanghai; Yiwu; Guangzhou ... |
| Certificates | ISO9001: 2015, SGS | Payment | Ali Trade Assurance; T/T; L/C; Western Union ... |
| Part No. | Description |
Weight (kg) |
Model Application |
| 5D9553 | DBC Grader Blade 1828*152*16 13*5/8" | 29 | 12G,12H,14T,112T,120,120G,120H,130G,135H,140H,140G,12F,322B |
| 5D9554 | DBC Grader Blade 2133*152*16 15*5/8" | 34 | 12G,12H,120G,120H,130G,16T,140H,135H,143H,12F |
| 5D9558 | DBC Grader Blade 1828*203*19 13*5/8" | 50 |
12G,12H,14T,112T,120,120G,135H,140G,140,152X,143H,140H,163H, 160K,140K,12F |
| 5D9559 | DBC Grader Blade 2133*203*19 15*5/8" | 59 | 12G,12H,120G,120H,16T,140G,140K,143H,140H,135H,12F |
| 5D9556 | DBC Grader Blade 1828*152*19 13*5/8" | 35.5 | 12G,12H,14T,112T,120,120G,120H,130G,135H,12F |
| 5D9557 | DBC Grader Blade 2133*152*19 15*5/8" | 42 | 12G,12H,120G,120H,130G,16T,12F |
| 5D9562 | DBC Grader Blade 1828*203*16 13*5/8" | 42 |
12G,12H,14T,112T,120,120G,120H,135H,140G,140,152X,12F,140H,143H, 135H,12F |
| 5D9561 | DBC Grader Blade 2133*203*16 15*5/8" | 49 | 12G,12H,120G,120H,16T,140G,143H,140H,135H,163H,160H,12F |
| 4T2244 | DBC Grader Blade 1828*203*25 13*5/8" | 68 | 3304,3306,120G,12G,130G,140G |
| 4T2242 | DBC Grader Blade 2133*203*25 15*5/8" | 79 | 3304,3306,120G,12G,130G,140G |
| 7D1158 | DBC Grader Blade 2133*203*16 15*3/4" | 49 | 14G,14H,120M,160K,160M,163H,160H,14M,140K,12M,143H |
| 7D1576 | DBC Grader Blade 1828*203*19 13*3/4" | 50 | 12M,120K2,120K,120M,143H,12K,160M,163H,140M,140K,160H, |
| 7D1577 | DBC Grader Blade 2133*203*19 15*3/4" | 59 |
14G,14H,12M,143H,12K,140K2,14M,140M,163H,160M,140K, 120M,120K ,160H,160K,160HNA,120M2AWD,160M3,12M2, 160M2AWD, 12M2AWD, 120K2,12M,140M2,120M2,160M2, 143H,14LAWD,140M3, 140K,140MAWD, 14H,160MAWD, 120MAWD,140HNA,160H,12HNA,12M3,14M3 |
| 4T2231 | DBC Grader Blade 1828*203*25 13*3/4" | 68 | 18M3,16H |
| 4T2233 | DBC Grader Blade 2133*203*25 15*3/4" | 79 | 3304,3306,3406,130G,14G,16G,12G,140G |
| And so on | |||
