Quick Details
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
YIMU
-
Dimension(L*W*H):
-
2000-800*1700mm
-
Weight:
-
300 KG
-
Machinery Capacity:
-
20-150bottles/min
-
Labeling speed:
-
20-150 Bottles/min
-
Labeling error:
-
<1mm
-
Keyword1:
-
Labling Machine Bottle
-
Keyword2:
-
round bottle labeler
-
Label Size(mm):
-
L:20mm~290mm W:20mm~350mm
-
Bottle diameter:
-
20-200mm
-
Function:
-
round bottle labeling machine
-
Material:
-
SS304 Stainless Steel
-
Marketing Type:
-
Hot Product 2020
-
Product name:
-

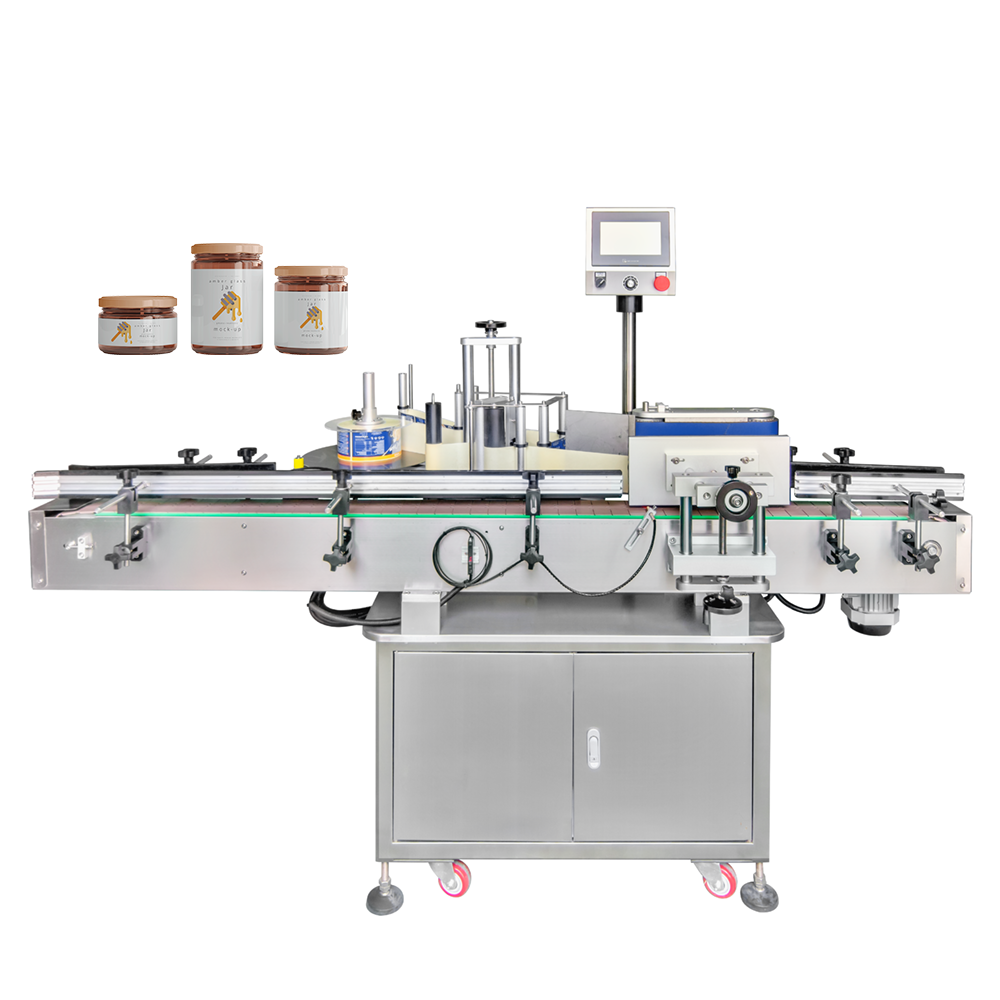

Auto Sticker Labeling Machine
Quick Details
-
Application:
-
Food, Beverage, Commodity, Chemical
-
Packaging Type:
-
case
-
Packaging Material:
-
Wood
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
YIMU
-
Dimension(L*W*H):
-
2000-800*1700mm
-
Weight:
-
300 KG
-
Machinery Capacity:
-
20-150bottles/min
-
Labeling speed:
-
20-150 Bottles/min
-
Labeling error:
-
<1mm
-
Keyword1:
-
Labling Machine Bottle
-
Keyword2:
-
round bottle labeler
-
Label Size(mm):
-
L:20mm~290mm W:20mm~350mm
-
Bottle diameter:
-
20-200mm
-
Function:
-
round bottle labeling machine
-
Material:
-
SS304 Stainless Steel
-
Marketing Type:
-
Hot Product 2020
-
Product name:
-
Auto Sticker Labeling Machine
Products Description
1, For automatic labeling on round bottles/jars/cans for the pharmaceuticals, daily chemicals, food & beverages industries.
2, The machine can connect with other machine using or using it alone.
6, Backed by a strong engineering team who is ready to provide custom solutions for the unique production needs of different customers.
2, The machine can connect with other machine using or using it alone.
3, English language HMI oerpation page, with 10 sets parameter save for different kind bottle,
easy to operate.
4, Machine conveyor can suitable for different size bottles, and big labeling head sutiable different size labels, Max.label height 300mm.
4, Labeler will automatically detects the label size and bottle diameter and set the appropriate labeling parameters, a very
useful feature for users with multiple products to label.
6, It is an optimal combination of speed, accuracy, stability, GMP standards, ease of use, and flexibility.
6, Backed by a strong engineering team who is ready to provide custom solutions for the unique production needs of different customers.
Product Paramenters
|
1
|
Label width(height)
|
10-180mm
|
|
2
|
Label length
|
20-350mm
|
|
3
|
Capacity
|
0- 200 bottles/min
|
|
4
|
Conveyor speed
|
0-30m/min
|
|
5
|
Labeling accuracy
|
±0.8mm
|
|
6
|
Bottle diameter
|
Below 120mm
|
|
7
|
Power supply
|
700W, 110V/220V, 50/60Hz, 1 phase (customized)
|
|
8
|
Label reel Inner diameter
|
76mm or 40mm
|
|
9
|
Label reel outer diameter
|
Max 380mm
|
|
10
|
Machine size
|
L2000 * W800 * H1750 mm
|
|
11
|
Machine net weight
|
250KG
|
|
12
|
Date printer
|
Optional
|
|
13
|
Transparent sensor
|
Optional
|
Main configuration list
|
PLC
|
SIEMENS / Mitsubishi
|
|
HMI
|
SIEMENS / WEINVIEW
|
|
Label feed motor
|
RAYNEN servo motor / KINCO stepper motor
|
|
Label sensor
|
SICK / FOTEK
|
|
Bottle sensor
|
SICK / KEYENCE / Panasonic
|
|
Motor
|
Taiwan Taibang
|
|
Frequency changer
|
Taiwan Delta
|
