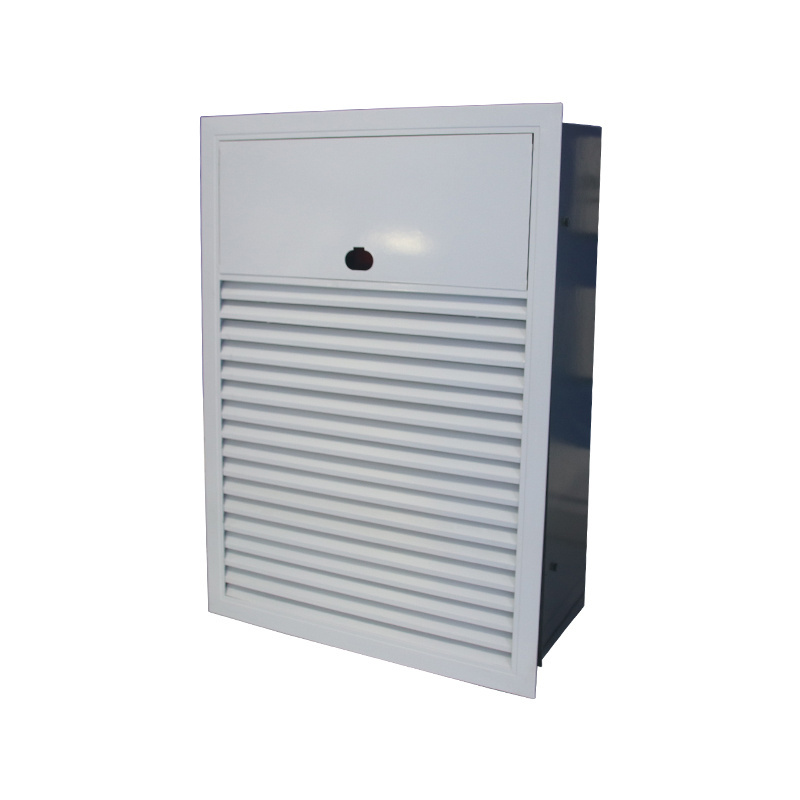

Exhaust Valve PY-1(SD) PY-5(SD)
Applicable: The smoke exhaust valve is generally installed in the air duct of the smoke
exhaust system, usually closed, fire alarm signal issued by the smoke sensor in the case of fire, the control center connects the electrical signal to the electromagnet on the valve to make the valve open quickly, but also manually open the valve quickly to exhaust smoke.
Performance: ◆ Telecom number DC24V ±2.4V will open the valve,
◆ The valve can be opened manually.
◆ Manual reset.
◆ Output open signal after valve action.
Interlock with other equipment according to user requirements.
Note: The exhaust valve does not have a temperature sensor,
- Product Details
- {{item.text}}
Quick Details
-
Name:
-
fire damper
-
Key Words:
-
duct fire damper
-
The valve Frame:
-
1.8mm thick steel plate
-
temperature sensing element:
-
Meltable alloy,70℃ and 280℃
-
bearing:
-
yellow copper
-
the rated voltage:
-
DC24V±10%
-
rated current:
-
0.7A±10%
-
Micro switch:
-
AC380V3A
-
Action torque:
-
0.98~6.9N.m.
-
electromagnet suction:
-
1.5kg~2.5kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Aike
-
Model Number:
-
PY-1/FPY-2/PY-3/[YK-1/PYK-6
-
Name:
-
fire damper
-
Key Words:
-
duct fire damper
-
The valve Frame:
-
1.8mm thick steel plate
-
temperature sensing element:
-
Meltable alloy,70℃ and 280℃
-
bearing:
-
yellow copper
-
the rated voltage:
-
DC24V±10%
-
rated current:
-
0.7A±10%
-
Micro switch:
-
AC380V3A
-
Action torque:
-
0.98~6.9N.m.
-
electromagnet suction:
-
1.5kg~2.5kg
Products Description
Specification
|
The valve Frame
|
1.8mm thick steel plate
|
|
reset the way
|
manual start reset
|
|
bearing
|
yellow copper
|
|
the rated voltage
|
DC24V±10%
|
|
rated current
|
0.7A±10%8MPa
|
|
Micro switch
|
AC380V3A
|
|
Action torque
|
0.98~6.9N.m.
|
|
hot water resistance
|
4.19~22.70
|
|
electromagnet suction
|
1.5kg~2.5kg
|
Product packaging
