Quick Details
-
Brand Name:
-
WENBA
-
Model Number:
-
SBW-70KVA/80KVA/100KVA
-
Capacity:
-
70KVA/80KVA/100KVA
-
Input Voltage:
-
175V-265V for 3 phase 220V;300v-465V for 3 phase 380V
-
Output Voltage:
-
3 phase 220v/380v
-
Efficiency:
-
≥90%
-
Power factor:
-
0.8
-
Ambient Temperature:
-
-10℃~+40℃
-
Protection:
-
Over/Under Voltage, Short Circuit, Over Temperature, Phase Failu
-
Delay time:
-
3-7S short time dealy
-
Certificate:
-
CE
-
Warranty:
-
1 year
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WENBA
-
Model Number:
-
SBW-70KVA/80KVA/100KVA
-
Capacity:
-
70KVA/80KVA/100KVA
-
Input Voltage:
-
175V-265V for 3 phase 220V;300v-465V for 3 phase 380V
-
Output Voltage:
-
3 phase 220v/380v
-
Efficiency:
-
≥90%
-
Power factor:
-
0.8
-
Ambient Temperature:
-
-10℃~+40℃
-
Protection:
-
Over/Under Voltage, Short Circuit, Over Temperature, Phase Failu
-
Delay time:
-
3-7S short time dealy
-
Certificate:
-
CE
-
Warranty:
-
1 year
Our service:
with us your money in safe your business in safe !
Competitive advantage products.
Confidentiality agreement "business secret contract".
Quality assurance contract.
Free sample offer&small order welcomed.
After sales service 24*7.

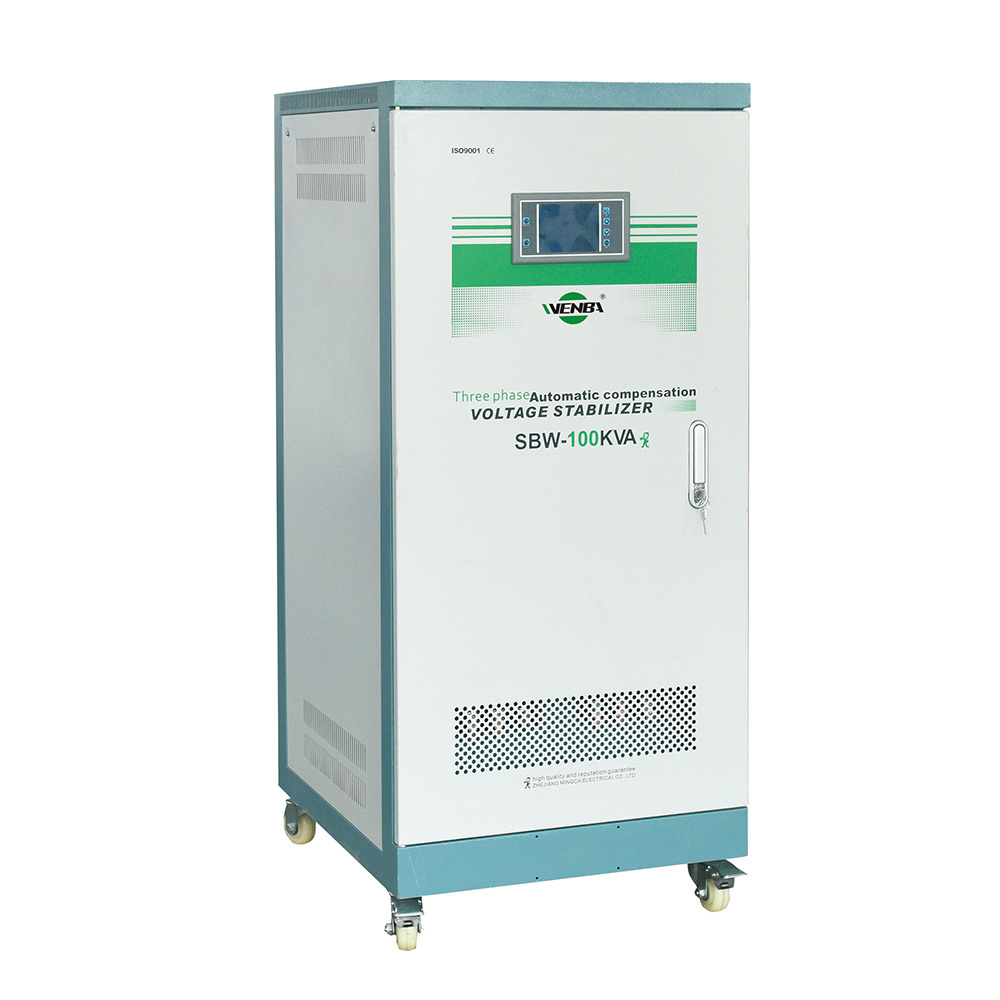

Product Description
For this series product,we can produce power capacity from 30KVA to 600KVA.
|
Power capacity
|
30KVA to 600KVA
|
|
|
|
Input Voltage
|
175V-265V for 3 phase 220V;300V-465V for 3 phase 380V
|
Three Phase:304V-456V
|
|
|
Output Voltage
|
3 phase 220V or 380V
|
Three Phase:380V
|
|
|
Output accuracy
|
1-5%(Adjustable)
|
|
|
|
Frequency
|
50/60Hz
|
|
|
|
Efficiency
|
≥90%
|
|
|
|
Response Time
|
≤0.5S
|
|
|
|
Ambient Temperature
|
-10℃~+40℃
|
|
|
|
Insulation Resistance
|
≥5MΩ
|
|
|
|
Overload
|
Double Rated Current,One Min
|
|
|
|
Waveform Distortion
|
Non-Lack Fidelity Waveform
|
|
|
|
Protect
|
Overvoltage,Overcurrent,Lack Phases
|
|
|
