Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JUTENG
-
Model Number:
-
YQL
-
EXTENDED LENGTH/MM:
-
113-1200
-
STROKE/MM:
-
30-900
-
CYLINDER DIA/MM:
-
12-40
-
PISTON ROD DIA/MM:
-
4-20
-
MIN FORCE/N:
-
35-4000
-
MATERIAL:
-
45#STEEL
-
SURFACE COLOR:
-
BLACK/SILVER/OTHER
-
warranty:
-
3 years
-
fatigue test/cycles:
-
80000 cycles
-
salt spray test/h:
-
78 hours
Quick Details
-
Style:
-
Cylinder
-
Material:
-
Steel
-
Usage:
-
Furniture
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JUTENG
-
Model Number:
-
YQL
-
EXTENDED LENGTH/MM:
-
113-1200
-
STROKE/MM:
-
30-900
-
CYLINDER DIA/MM:
-
12-40
-
PISTON ROD DIA/MM:
-
4-20
-
MIN FORCE/N:
-
35-4000
-
MATERIAL:
-
45#STEEL
-
SURFACE COLOR:
-
BLACK/SILVER/OTHER
-
warranty:
-
3 years
-
fatigue test/cycles:
-
80000 cycles
-
salt spray test/h:
-
78 hours
Products Description

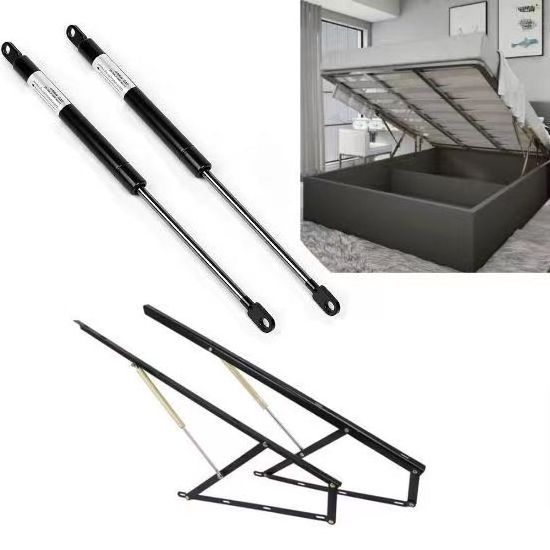

Lift gas spring
Lift gas spring,also known as non-lockable gas springs.The complete program for safe and convenient opening, holding and closing.
It has three important parameters,the first one is extended length:The total length of the gas spring measured from the center of one end fitting to the center of the next end fitting;The second one is closed length:The total closed length measured from the center of one end fitting to center of the next end fitting. There may be times when no end fittings have been specified.
|
LIFT GAS SPRING
|
|
|
|
|||
|
Type
|
Extended length
|
Stroke
|
Force(N)
|
|||
|
YQ6001
|
91mm
|
30mm
|
5-1500N
|
|||
|
YQ6002
|
101mm
|
35mm
|
|
|||
|
YQ6003
|
111mm
|
40mm
|
|
|||
|
YQ6004
|
121mm
|
45mm
|
|
|||
|
YQ6005
|
131mm
|
50mm
|
|
|||
|
...
|
...
|
...
|
...
|
|||
|
REMARK:THE GAS SPRING COULD BE CUSTOMIZED ACCORDING TO YOUR REQUIREMENTS.
|
|
|
|
|||
|
LOCKABLE GAS SPRING
|
|
|
|
|||
|
Type
|
Extended length
|
Stroke
|
Force(N)
|
|||
|
KQ1001
|
138mm
|
20mm
|
50-1000N
|
|||
|
KQ1002
|
148mm
|
25mm
|
|
|||
|
KQ1003
|
158mm
|
30mm
|
|
|||
|
KQ1004
|
168mm
|
35mm
|
|
|||
|
KQ1005
|
178mm
|
40mm
|
|
|||
|
...
|
...
|
...
|
...
|
|||
|
REMARK:THE GAS SPRING COULD BE CUSTOMIZED ACCORDING TO YOUR REQUIREMENTS.
|
|
|
|
|||
Product Features
It has three important parameters,the first one is extended length:The total length of the gas spring measured from the center of one end fitting to the center of the next end fitting;The second one is closed length:The total closed length measured from the center of one end fitting to center of the next end fitting. There may be times when no end fittings have been specified; this measurement will refer to the length from rod end to tube end (excluding threads);The third one is stroke:The maximum amount of distance the rod can travel from closed length to extended length.
Here are some common applications of lift gas springs:
They are used to assist in lifting and holding open hatchbacks, tailgates, and hoods in vehicles.
They can be applied to cabinet doors, allowing them to open smoothly and stay in place when open.
They help in smoothly opening and closing safety guards on industrial machines.
They are used in boat hatches to keep them open and provide easy access to compartments,and can be applied to cabinets and storage areas on boats for controlled opening and closing.
They are used in RV beds for easy lifting to access storage space underneath.
They are used in caravan doors to provide controlled opening and closing.
Important Parameters
Lift gas spring,also known as non-lockable gas springs.The complete program for safe and convenient opening, holding and closing.
It has three important parameters,the first one is extended length:The total length of the gas spring measured from the center of one end fitting to the center of the next end fitting;The second one is closed length:The total closed length measured from the center of one end fitting to center of the next end fitting. There may be times when no end fittings have been specified; this measurement will refer to the length from rod end to tube end (excluding threads);The third one is stroke:The maximum amount of distance the rod can travel from closed length to extended length.
Product details
Oil seal full buffer
Hydraulic oil seal
Multiple protection,no oil leakage,no air leakage,long service life
Nitrogen injected inside,
not easy to be rust
Thickened cylinder
Not easy to deform,water-based paint,more corrosion resistant,more environmental friendly
QPQ treatment piston rod
Good wear resistance
Good fatigue resistance
,
good corrosion resistance
,
not easily deformed
Changzhou Juteng Gas Spring Co., Ltd. was established in 2009. It is a professional gas spring manufacturer and is committed to the research, development, production and sales of gas springs. Under the guidance of a high standard, Juteng has successfully developed various types of gas springs, a total of 4 major types: lift gas spring, lockable gas spring, hydraulic damper, and tension gas spring), which have exceeded 300 models. And widely used in machinery ranges in automobiles, furniture, industry, medical equipment, ships, agricultural machinery, construction machinery, garbage bins and other fields. We can also produce gas springs that meet customer requirements according to customers' special requirements, and our company has established an annual output of 7,000,000 pieces.
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a factory located in Changzhou, China.
Q: How long of your delivery time?
A: 10-40 days, depends on the order quantity and requirements of the products.
Q: Do you provide samples? Is it free or extra?
A: Sure we could offer the sample for free charge, while the cost of freight is on customers' side.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, paid with the agreed terms.
