Quick Details
-
Model:
-
DR450
-
Effective length of the tooling:
-
≤400mm
-
Swing diameter:
-
≤450mm
-
Parallel wire number:
-
≤16pcs
-
Wire diameter:
-
0.3-1.2mm
-
Wire arraying width:
-
400mm
-
Air pressure:
-
0.4-0.6MPa
-
Power supply:
-
220V/50/60Hz 2.2Kw
-
Machine weight:
-
About 950kg
-
Machine dimension:
-
1500x 1700 x 1550mm
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
zhenhuan
-
Weight (KG):
-
950
-
Model:
-
DR450
-
Effective length of the tooling:
-
≤400mm
-
Swing diameter:
-
≤450mm
-
Parallel wire number:
-
≤16pcs
-
Wire diameter:
-
0.3-1.2mm
-
Wire arraying width:
-
400mm
-
Air pressure:
-
0.4-0.6MPa
-
Power supply:
-
220V/50/60Hz 2.2Kw
-
Machine weight:
-
About 950kg
-
Machine dimension:
-
1500x 1700 x 1550mm
MACHINE DESCRIPTION

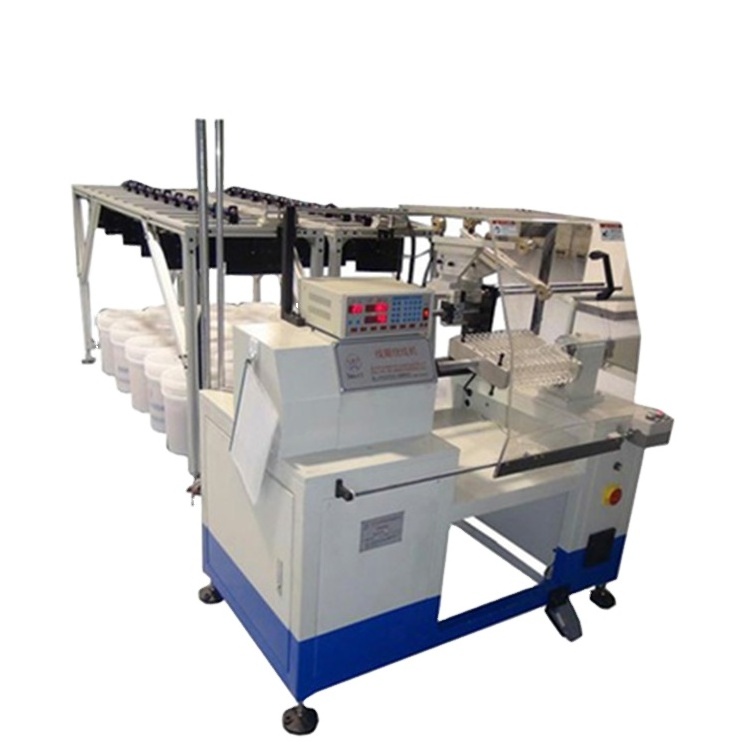

High power winding machine is full automatic by PLC control, touch screen operation, automatic wire traversing.
MAIN FEATURES
MACHINE CONFIGURATION
|
Model
|
DR450
|
DR600
|
|
Swing diameter
|
≤450mm
|
≤600mm
|
|
Effective length of the tooling
|
≤400mm
|
≤400mm
|
|
Parallel wire number
|
≤16pcs
|
≤20pcs
|
|
Wire diameter
|
0.3-1.2mm
|
0.4-1.5mm
|
|
Wire arraying width
|
400mm
|
400mm
|
|
Power supply
|
220V/50/60Hz, 2.2kw
|
220V/50/60Hz, 1.5kw
|
|
Machine weight
|
About 950kg
|
About 950kg
|
|
Air pressure
|
0.4-0.6MPa
|
0.4-0.6MPa
|
|
Machine dimension (LxWxH)
|
1500x 1700 x 1550mm
|
1500x 1700 x 1550mm
|
Fittings of motor related machine
