Be widely used in industrial use vacuum systems.
Effectively prevent solids or dusts from being sucked into the vacuum pump or system.
Reducing pump wear and improving pump operation reliability.
Effectively protect the components in vacuum system, such as vacuum valves and vacuum gauges etc.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Porosity:
-
5 um
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
OEM
-
Dimension(L*W*H):
-
Optional
-
Weight:
-
1-15KG
-
Item:
-
Air filter for vacuum pump
-
Model number:
-
FE002 - FE008
-
Color:
-
different colors optional
-
Port size:
-
G1/2'' - G4''
-
Rated airflow:
-
32 - 800 m3/h
-
Filter media:
-
Air
-
Temperature range:
-
-15 ~90 Celsius
-
Function:
-
Dust Filtration
-
Customization:
-
Acceptable
-
Marketing Type:
-
Hot Product 2021
-
Certification:
-
CE
Quick Details
-
Applicable Industries:
-
Vacuum system
-
Core Components:
-
Replacement Cartridge
-
Efficiency:
-
99%
-
Porosity:
-
5 um
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
OEM
-
Dimension(L*W*H):
-
Optional
-
Weight:
-
1-15KG
-
Item:
-
Air filter for vacuum pump
-
Model number:
-
FE002 - FE008
-
Color:
-
different colors optional
-
Port size:
-
G1/2'' - G4''
-
Rated airflow:
-
32 - 800 m3/h
-
Filter media:
-
Air
-
Temperature range:
-
-15 ~90 Celsius
-
Function:
-
Dust Filtration
-
Customization:
-
Acceptable
-
Marketing Type:
-
Hot Product 2021
-
Certification:
-
CE
Product Description
Vacuum Pump Inlet Air Filter Bucket
Features:
1. Consist of a steel housing and a lid with quick locking clips2. Rugged all steel construction for heavy duty applications
3. Sealing with O-ring and max vacuum is below 1 Pa
4. Large dirt holding capacity and easy cleaning. Easy to replace cartridge

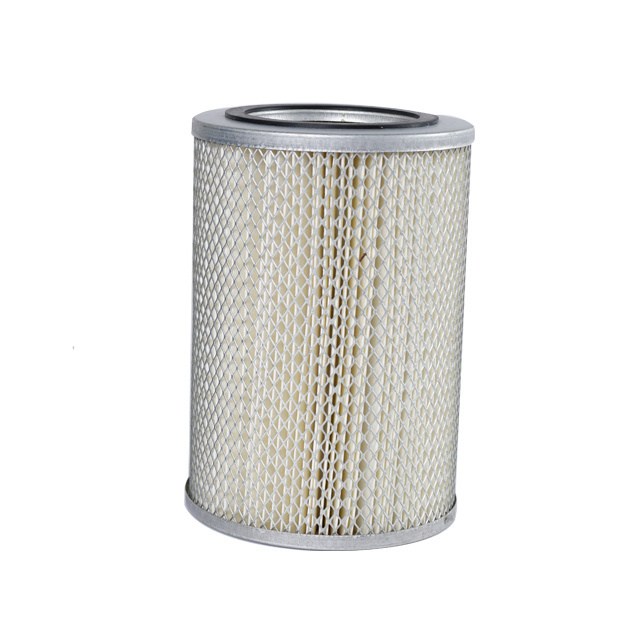

5. Equipped with paper cartridge, up to 99% efficiency
3. Sealing with O-ring and max vacuum is below 1 Pa
4. Large dirt holding capacity and easy cleaning. Easy to replace cartridge
5. Equipped with paper cartridge, up to 99% efficiency
Specification
|
Model number
|
F002
|
F002-1
|
F004
|
F003
|
F003-1
|
F006
|
F006-1
|
F007
|
F008
|
||||||||
|
Rated flow (m³/h)
|
32
|
42
|
100
|
120
|
150
|
300
|
360
|
360
|
800
|
||||||||
|
*A (inch)
|
G1/2''
|
G3/4''
|
G1 1/4''
|
G1 1/4''
|
G1 1/2''
|
G2''
|
G2 1/2''
|
G3''
|
G4''
|
||||||||
|
*B (inch)
|
G1/2''
|
G3/4''
|
G1 1/4''
|
G1 1/4''
|
G1 1/2''
|
G2''
|
G2 1/2''
|
G3''
|
G4''
|
||||||||
|
C (mm)
|
φ101
|
φ101
|
φ146
|
φ185
|
φ185
|
φ222
|
φ222
|
φ222
|
φ350
|
||||||||
|
D (mm)
|
90
|
90
|
110
|
170
|
170
|
258
|
258
|
258
|
370
|
||||||||
|
E (mm)
|
53
|
53
|
70
|
115
|
115
|
125
|
125
|
125
|
135
|
||||||||
|
F (mm)
|
70
|
70
|
75
|
130
|
130
|
240
|
240
|
240
|
170
|
||||||||
|
Weight(kg)
|
1
|
1
|
1.4
|
2.3
|
2.3
|
6.9
|
6.9
|
6.9
|
15
|
||||||||
|
Remark: size A, B are pipe thread G.
|
|
|
|
|
|
|
|
|
|
||||||||
|
Filtering supplies
|
FE002
|
FE002
|
FE004
|
FE003
|
FE003
|
FE006
|
FE006
|
FE007
|
F008
|
|
D (mm)
|
φ65
|
φ65
|
φ98
|
φ128
|
φ128
|
φ150
|
φ150
|
φ150
|
φ270
|
|
d (mm)
|
φ38
|
φ38
|
φ60
|
φ64
|
φ64
|
φ88
|
φ88
|
φ88
|
φ170
|
|
F (mm)
|
69
|
69
|
70
|
125
|
125
|
222
|
222
|
222
|
365
|
