- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Fitel
-
Use:
-
ftth
-
Warranty Time:
-
1 year
-
Applicable fiber:
-
all fiber types
-
Bare fiber diameter:
-
125mm
-
coating diameter:
-
0.25 to 0.9 mm
-
Cladding Diameter:
-
125 um
-
Single-Mode Fiber:
-
yes
-
Multi-Mode Fiber:
-
yes
-
No. of Fiber:
-
1
-
Application:
-
fiber splicing
Quick Details
-
Type:
-
fiber tools
-
Model Number:
-
S326A
-
Place of Origin:
-
Japan
-
Brand Name:
-
Fitel
-
Use:
-
ftth
-
Warranty Time:
-
1 year
-
Applicable fiber:
-
all fiber types
-
Bare fiber diameter:
-
125mm
-
coating diameter:
-
0.25 to 0.9 mm
-
Cladding Diameter:
-
125 um
-
Single-Mode Fiber:
-
yes
-
Multi-Mode Fiber:
-
yes
-
No. of Fiber:
-
1
-
Application:
-
fiber splicing

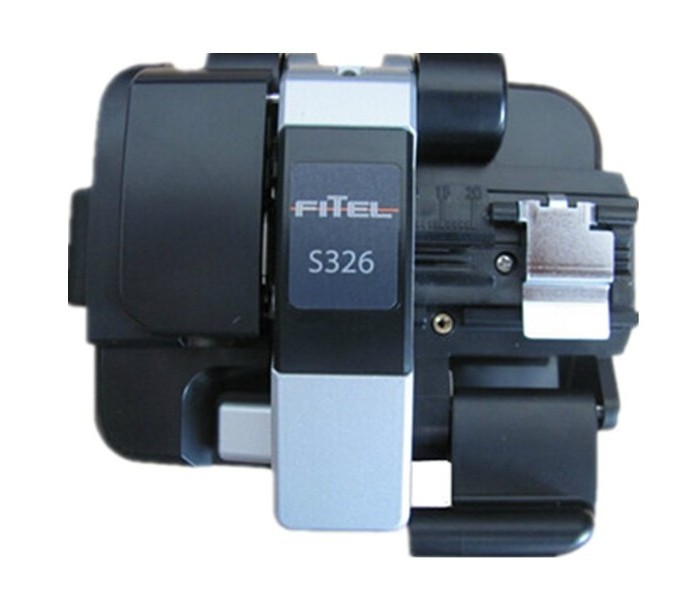

Fitel S326A Optical Fiber Cleaver / Fiber Cutting Cleaver
With its ergonomic and light weight design, the S326 cleaver offers the operator the versatility to cleave on a work bench or in their hand. The reduced lid size and wide opening angle facilitates fiber
loading and improves stability resulting in better single and ribbon fiber cleaves. Just pressing the lever completes the fiber cleave and automatically collects the waste. With 24 positions, the long life-time blade achieves 48,000 fiber cleaves. The S326 cleaver can offer optical fiber cleaving for a full range of OSP and OEM applications. The S326A configuration comes with both the regular and large size fiber waste bin or users can choose the smaller S326B option without a bin.
- Cleave anywhere
- Simple operation
- Easy fiber loading
- Durable and reliable design
- Wide lid opening
- Long blade life
- Light weight (About 30% reduced from previous model)
- High capacity waste bin (S326A)
|
Fiber Types |
All fiber types, single to 12-fiber ribbons |
|
Clad Diameter |
0.125mm |
|
Coating Diameter |
0.25mm and 0.9mm for single fiber; 0.3mm to 0.4mm thickness for ribbons |
|
Cleave Length |
Single Fiber: Fixed Length - 10 & 16mm Variable Length - 3 to 20mm |
|
Ribbon Fiber |
10mm Fixed Length |
|
Dimensions/Weight |
93W x 68D x 52H [mm], 330 grams |
