Quick Details
-
Walking Speed:
-
0-10m/ min
-
Dimension(L*W*H):
-
2748*2900*2044
-
Drive:
-
Hydraulic motor
-
Screed Head Type:
-
Swing Type
-
Power supply system:
-
2.6KW sigle cylinder four stroke gasoline EC2500CX
-
Electric servo system:
-
Electric servo system
-
Laser Generator:
-
LEICA (Switherland)
-
Screed width:
-
2.6m
-
Tire:
-
733mm ATV tire or 3.0-21narrow tire
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DYNAMIC
-
Product name:
-
Floor Screeding Machine Laser Concrete Screed
-
Walking Speed:
-
0-10m/ min
-
Dimension(L*W*H):
-
2748*2900*2044
-
Drive:
-
Hydraulic motor
-
Screed Head Type:
-
Swing Type
-
Power supply system:
-
2.6KW sigle cylinder four stroke gasoline EC2500CX
-
Electric servo system:
-
Electric servo system
-
Laser Generator:
-
LEICA (Switherland)
-
Screed width:
-
2.6m
-
Tire:
-
733mm ATV tire or 3.0-21narrow tire

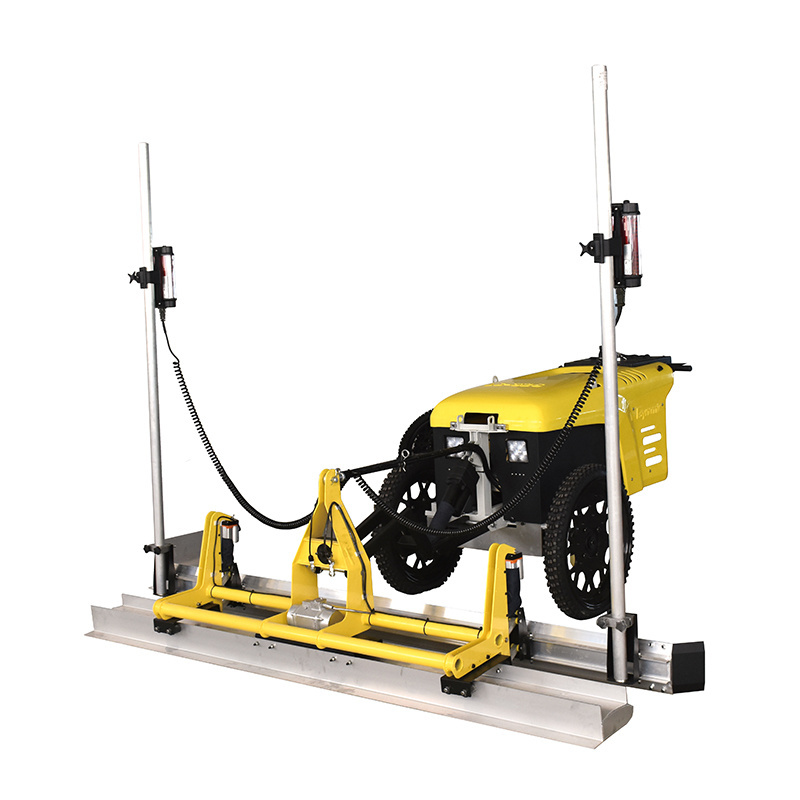

Aluminum Alloy Screed Floor Screeding Machine Laser Concrete Screed
Laser transmitter generates a rotating laser, the laser screed machine comes with a receiver will receive signals for analysis by laser control system, the deviation will be fed back to the leveler sensitive computer control system, Left and right electric putter will adjust the height of the scraper to ensure the accuracy of leveling.
Aluminum Alloy Screed Floor Screeding Machine Laser Concrete Screed
Road Equipment Cement Ground Vibratory Leveling Machine Concrete Laser Screed
| Model | Laser screed LS-325 | Laser screed LS-400 | Laser screed LS-500 | Laser screed LS-600 |
| Net Weight | 220KG | 741KG | 3500KG | 7980KG |
| Size | 2748*2900*2044 | 3155*3175*1910 | 4000*2080*1900 | 6500*2200*2350 |
| Engine model | HONDA | YANMAR | YANMAR | YANMAR |
| Power Supply System | 2.6KW single cylinder four stroke gasoline engine EC2500CX | 14.2KW | 20KW | 44.1KW |
| Drive System | Electric servo system | Electric servo system | Electric servo system | Electric servo system |
| Vibration Frequency | 50HZ | |||
| Screed Width | 200cm | 250cm | 300cm | 360cm |
| Control mode of laser system | Laser scanning and high-precision servo joystick | |||
| Fuel tank volume | 35L | 35L | 70L | 70L |
Aluminum Alloy Screed Floor Screeding Machine Laser Concrete Screed
1. Precision laser technology, closed loop control technology and highly sophisticated integrated hydraulic system, and the microcomputer automatic control. Laser Screed
2. Hydraulic drive system, with laser systems and computer control system to make automatic level and at the same time to finish leveling work. concrete laser screed
3. Laser Emitter which used to control the ground elevation is independent layout, so as the ground elevation won't produce accumulative error. laser concrete screed
4. Laser Emitter, can auto control the flat surface and two-way slope. concrete laser screed
Road Equipment Cement Ground Vibratory Leveling Machine Concrete Laser Screed
Wide application range
First: Indoor floor:
1)General industrial workshop, Automatic Stereoscopic Warehouse, underground Park
2)Cleanroom for electronic appliances, food materials and medicine.
concrete laser screed
3)Supermarkets, Logistics center, conference and exhibition center ect.
Road Equipment Vibratory Land
Road
Second: Outdoor floor:
1)Docks, container yard, storage yard;
2)Airport runway, apron, parking lot;
concrete level laser screed
3)Square, residential floor, storey, road, bridge etc
Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.
