Quick Details
-
Warranty:
-
1year
-
Brand Name:
-
Runway
-
Model Number:
-
HD
-
Place of Origin:
-
China
-
Horsepower:
-
0.75~2.0
-
Structure:
-
gear meshing
-
Cable Length:
-
200M
-
Outlet Size:
-
DN15~DN25
-
Power:
-
0.55~1.5KW
-
Product name:
-
Gear Pump
-
Shell material:
-
SUS304/316L/Tool steel
-
Delivery:
-
Express by sea or air
-
Applicable medium:
-
Medium viscosity chemical liquid
-
Operating temperature:
-
normal <200
-
Suitable viscosity:
-
<100000CPS
-
Solid content:
-
not allowed
-
Seal:
-
combination seal
-
Delivery accuracy:
-
±2%
-
Certification:
-
ETL
Quick Details
-
Application:
-
Food and Beverage Industry, Machining, Mining industry, Pharmaceutical industry, Washing and Cleaning, Metering, PUR, plastic, rubber, polyester, etc
-
Pressure:
-
0.6~8.0
-
Voltage:
-
220V,380V,Custom
-
Warranty:
-
1year
-
Brand Name:
-
Runway
-
Model Number:
-
HD
-
Place of Origin:
-
China
-
Horsepower:
-
0.75~2.0
-
Structure:
-
gear meshing
-
Cable Length:
-
200M
-
Outlet Size:
-
DN15~DN25
-
Power:
-
0.55~1.5KW
-
Product name:
-
Gear Pump
-
Shell material:
-
SUS304/316L/Tool steel
-
Delivery:
-
Express by sea or air
-
Applicable medium:
-
Medium viscosity chemical liquid
-
Operating temperature:
-
normal <200
-
Suitable viscosity:
-
<100000CPS
-
Solid content:
-
not allowed
-
Seal:
-
combination seal
-
Delivery accuracy:
-
±2%
-
Certification:
-
ETL
Product Description
|
Model
|
Flowcc/r
|
Speed/min
|
Flow/min
|
Caliber
|
|
HN3.2
|
3.2
|
980
|
3.1L
|
G1/2
|
|
HN6.3
|
6.3
|
980
|
6.2L
|
G1/2
|
|
HN10
|
10.0
|
980
|
9.8L
|
G3/4
|
|
HN12
|
12.5
|
980
|
12.3L
|
G3/4
|
|
HN16
|
16
|
720
|
11.5L
|
G3/4
|
|
HN25
|
25
|
720
|
18.0L
|
G1 1/4
|
|
HN40
|
40
|
720
|
28.8L
|
G1 1/4
|
|
HN63
|
63
|
720
|
45.4L
|
G1 1/2
|
|
HN80
|
80
|
720
|
57.6L
|
G1 1/2
|
|
HN120
|
125
|
500
|
62.5L
|
G1 1/2
|
Product description

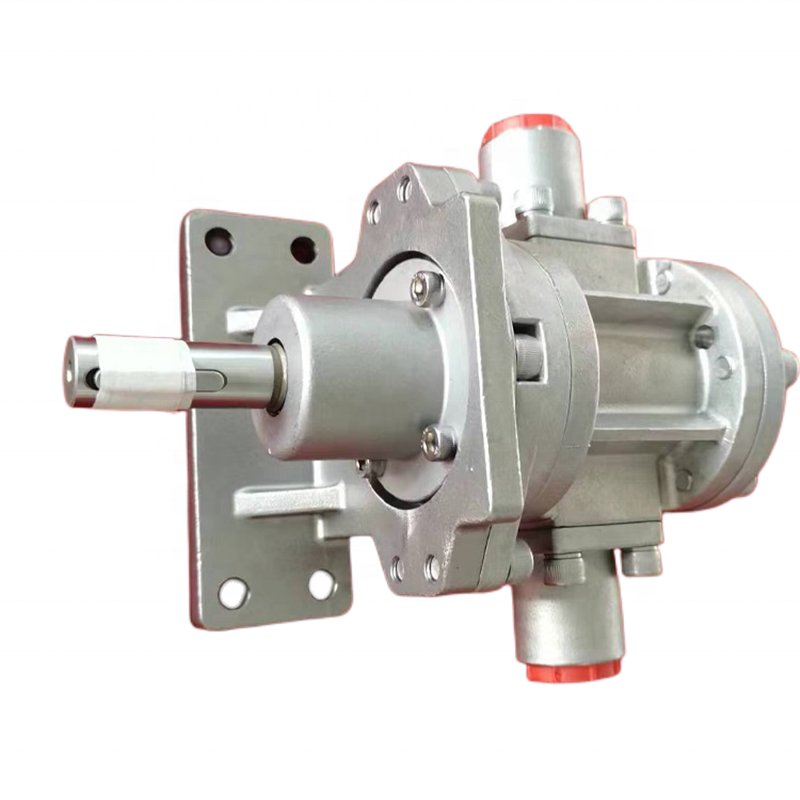

Stainless Steel Gear Pump
Stainless Steel Gear Pump
The gear metering pump is suitable for medium and low pressure, medium and small flow, conveying fluid materials with high viscosity and temperature and certain metering requirements (cannot contain particles).The gear metering pump principle is that the power of the motor transports the liquid to different pump chambers through the gears, and the gear metering pump overcurrent part is made of high-strength corrosion-resistant alloy and metal graphite.The gear metering pump sealing way is double end face mechanical seal, with higher reliability, suitable continuous operation for a long time. It is mainly used for the metering and transportation of viscous, corrosive liquids or liquids with higher hygienic requirements.
Material
Stainless Steel Gear Pump Stainless Steel Gear Pump
The gear metering pump flow overcurrent part adopt austenitic stainless steel 304, 304L, 316, 316L and alloy stainless steel, which are treated with strict solid solution. Make the material structure uniform and stress relief.
Matters needing attention
Stainless Steel Gear Pump Stainless Steel Gear Pump
The gear metering pump working temperature must not exceed 200 degrees and the viscosity should not exceed 100,000 cps. (If the temperature exceeds 90"C， please specify when selecting)
product advantages
Stainless Steel Gear Pump Stainless Steel Gear Pump
Product advantages
Stainless Steel Gear Pump Stainless Steel Gear Pump
1.The gear metering pump sturdy drive coupling between the motor and the metering pump, eliminates the influence of the alignment error between the motor and the gear metering pump on the measurement accuracy. At the same lime, avoid the motor transmitting vibration to the gear metering pump.
Stainless Steel Gear Pump Stainless Steel Gear Pump
2.The gear metering pump high flow accuracy: continuous accurate and stable flow control under dffe「ent cond小ons of temperature, pressure and viscosity.
Stainless Steel Gear Pump Stainless Steel Gear Pump
3.The gear metering pump gear transmission structure design makes flow delivery without pulse.
4. The gear metering pump disassembling and assembling is simple and easy to clean, the moving parts resist wear and tear, the size is small, the noise is low, can work stably for a long time.
Stainless Steel Gear Pump Stainless Steel Pump
5.The gear metering pump servo drive flow accu「ate, digital regulation, remote control can be achieved.
6.The gear metering pump suitable for transporting substances:Resins, curing agents, emulsifiers, additives, corrosives, adhesives, oxidizing agents, surfactants, hot melt adhesives, Defoamer, tackifier, sealant, catalyst, chemical agent, scale inh止）itor, varnish, paint, ink, emulsion, Emulsion, chemical fiber, dye, pigment, viscose, methanol, ethanol, ethylene glycol, methyl ether, lubricating oil, grease, isocyanate, Black, white, dye, ketchup, water treatment, cosmetics, spices, viscose, fuel, urethane, lubricants, adhesives, Condiments, pharmaceuticals, polymers, oils, paints, vitamins, detergents, corrosion inh心tors, etc.
Stainless Steel Gear Pump Stainless Steel Gear Pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
gear metering pump
Application&Testing
Our Company
Factory Show
Cooperation&Certification
Packaging&Shipping
Hot Product
FAQ
1.Q: Are you a manufacturer or a trading company?
Stainless Steel Gear Pump Stainless Steel Gear Pump
A: We are a manufacturer specializing in the production of diaphragm metering pumps, rotor pumps and other types of pumps, as well as pump-related products. Our products have passed the test.
Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump
2.Q:Why choose us? Stainless Steel Gear Pump Stainless Steel Gear Pump
Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump
2.Q:Why choose us? Stainless Steel Gear Pump Stainless Steel Gear Pump
A:We have more than 7 years of experience in the pump product industry. High-quality products and competitive prices. We have professional business personnel and engineers to provide you with selection assistance and technical support.
Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump
3.Q: How to buy our pump? Stainless Steel Gear Pump Stainless Steel Gear Pump
Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump
3.Q: How to buy our pump? Stainless Steel Gear Pump Stainless Steel Gear Pump
A: Tell us the required pump flow, pressure, head, medium, pump body material, voltage, current frequency, motor type and medium temperature. If you have special requirements, please highlight.
Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump
4.Q: What is the minimum order quantity for your products? Stainless Steel Gear Pump Stainless Steel Gear Pump
Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump
4.Q: What is the minimum order quantity for your products? Stainless Steel Gear Pump Stainless Steel Gear Pump
A: Different models have different MOQs, please check with the salesperson.
Gear Pump
Gear Pump
Gear Pump
Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump
5.Q: How long is your delivery time? Stainless Steel Gear Pump Stainless Steel Gear Pump
Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump Stainless Steel Gear Pump
5.Q: How long is your delivery time? Stainless Steel Gear Pump Stainless Steel Gear Pump
A: The samples can be sent to you within 7-10 days. Bulk orders can be shipped to you within 10-15 days after the order is confirmed.
