Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aobest
-
Model Number:
-
RVV
-
color:
-
red/blue/yellow/grey/greenbrown
-
type:
-
electrical wire
-
company:
-
factory
-
Package:
-
standard
-
Standard:
-
IEC 60227
Quick Details
-
Application:
-
home wire
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aobest
-
Model Number:
-
RVV
-
color:
-
red/blue/yellow/grey/greenbrown
-
type:
-
electrical wire
-
company:
-
factory
-
Package:
-
standard
-
Standard:
-
IEC 60227

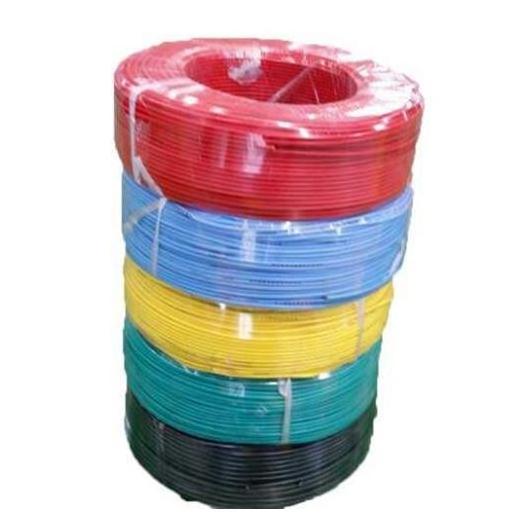

China high quality 2.5mm electric wire electrical wire wholesale
Detailed Product Description
Specification:
1. The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.
2. The long term working temperature should lower then 70
o
C. The working temperature of BV-90 should lower then 90
o
C. And the laying temperature should higher then 0
o
C.
3. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.
Product Description
RVV power cable: 1) conductor: 1/2/3/4 cores copper, copper)PVC insulation and jacket for Water-proof 3) ISO9001, FOR OEM
RoHS approval
Features:
1 Excellent Insulating Ability for Safe Use
2 High Reliability and Stability
3 Strongly Water-proof and Liquid-Proof
4 Strongly Protect the Transmission against the Interference of Electromagnetic Wave
5 Multi-Strands Conductor Design for High Performance
6 Color in White, Black or as per Your Requirements
7 Rating temperature: 75° C
8 Nominal voltage: 300V/300V
Applications:
1 Machine Tool Manufacture Industry
2 Full Set of Equipment Installation Project
3 Power Plant System
4 Central Heating and Air-Condition System
5 Office Automation Equipments Application
|
Type |
Name |
Laying place and requirement |
Long term working Temperature 0 C |
|
60227IEC01 05 BV BLV |
Copper conductor PVC insulated wires Aluminum conductor PVC insulated wires |
Fixed laid indoors Conduit etc. |
70 |
|
60227IEC07 (BV-90) |
Heat resistant copper conductor PVC insulated wire at 90 0 C |
Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. |
90 |
|
BVR |
Copper conductor PVC insulated flexible cable |
Be for laying permanent place where flexible required. |
70 |
|
60227IEC10 (BVV) BVV |
Copper conductor PVC insulated PVC sheathed round wires |
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
70 |
|
BLVV |
Aluminum conductor PVC insulated PVC sheathed round wires |
||
|
BVVB |
Copper conductor PVC insulated PVC sheathed flat wires |
||
|
BLVVB |
Aluminum conductor PVC insulated PVC sheathed flat wires |
||
|
60227IEC02(RV) 60227IEC06(RV) |
Copper conductor PVC insulated flexible connector wire |
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
70 |
|
60227IEC42(RVB) |
Copper conductor PVC insulated flat flexible connector wire |
||
|
RVS |
Copper conductor PVC insulated flexible twisting connector wire |
||
|
60227IEC52(RVV) 60227IEC53 |
Copper conductor PVC insulated PVC sheathed round flexible connector wire |
||
|
60227IEC08 (RV-90) |
Cu conductor heat resistant PVC insulated flexible connector wire at 90 0 C |
Mainly used at the places where heat resistance is required |
90 |
We also can manufacture many other specifications, if you have interest, welcome your enquiry!
