Siemens human-machine operation interface, simple operation and high degree of automation.
Intelligent regulation of energy usage to optimize energy consumption.
Collect and record various data in the production process in real time, and through data analysis, help production managers optimize the production process, improve production efficiency, and perform fault diagnosis and prediction.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MAIWEI
-
Year:
-
new
-
Dimension(L*W*H):
-
450x210x380
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
80 mm
-
Screw Heating Power(kW):
-
8.2 kW
-
Extruder Motor Power(kW):
-
22 kW
-
Mold Platen Size(Width)(mm):
-
550 mm
-
Mold Platen Size(Height)(mm):
-
650 mm
-
Air Pressure(MPa):
-
0.3 MPa
-
Air Comsumption(m³/min):
-
2 m³/min
-
Die Head Heating Power(kW):
-
5.2 kW
-
Accumulator Capacity(L):
-
30 L
-
Power (kW):
-
90
-
Weight (T):
-
12
-
Model Number:
-
MW-S30L
-
Product name:
-
Extrusion Blow Molding Machine
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
After-sales Service Provided:
-
Online Support
-
Suitable bottle:
-
HDPE Plastic Detergent Cosmetic Bottle
-
Bottle material:
-
PP PE PET PVC
-
Advantage:
-
Famous brand motor
-
Key words:
-
Extrusion Blow Molding Machine
-
Mould stroke:
-
350-800mm
-
Type:
-
Extrusion Blow Molding Equipment
Quick Details
-
Clamping Force (kN):
-
215
-
Output (kg/h):
-
120 kg/h
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MAIWEI
-
Year:
-
new
-
Dimension(L*W*H):
-
450x210x380
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
80 mm
-
Screw Heating Power(kW):
-
8.2 kW
-
Extruder Motor Power(kW):
-
22 kW
-
Mold Platen Size(Width)(mm):
-
550 mm
-
Mold Platen Size(Height)(mm):
-
650 mm
-
Air Pressure(MPa):
-
0.3 MPa
-
Air Comsumption(m³/min):
-
2 m³/min
-
Die Head Heating Power(kW):
-
5.2 kW
-
Accumulator Capacity(L):
-
30 L
-
Power (kW):
-
90
-
Weight (T):
-
12
-
Model Number:
-
MW-S30L
-
Product name:
-
Extrusion Blow Molding Machine
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
After-sales Service Provided:
-
Online Support
-
Suitable bottle:
-
HDPE Plastic Detergent Cosmetic Bottle
-
Bottle material:
-
PP PE PET PVC
-
Advantage:
-
Famous brand motor
-
Key words:
-
Extrusion Blow Molding Machine
-
Mould stroke:
-
350-800mm
-
Type:
-
Extrusion Blow Molding Equipment
Overview
video description
Products Description

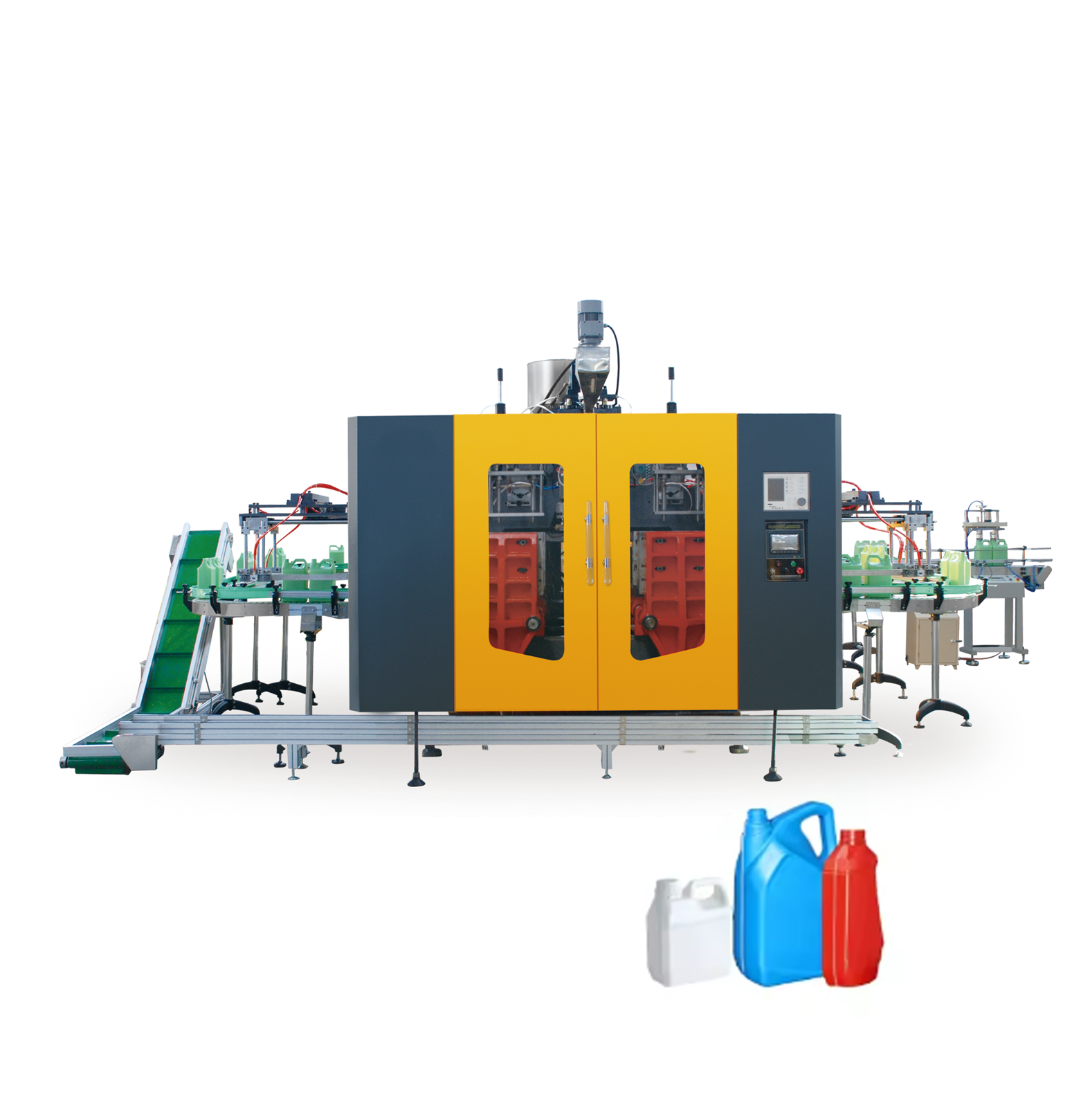

Medium Extrusion Blow Molding Machine for PE/PP/PVC
The medium-sized storage-type hollow blow molding machine is a piece of equipment specially used to produce medium-sized (30 liters to 80 liters) hollow plastic products. This kind of blow molding machine is usually widely used in the packaging of liquid, powdery or granular substances, such as the manufacture of packaging containers for liquid detergents, chemicals, pesticides, food, oils, etc.
Features：
*
Equipped with platform lifting function, which can adapt to different mold heights and different blow molding process requirements.
*
The hydraulic system adopts proportional technology and optimizes the hydraulic oil circuit design. It has the characteristics of power saving, fast action and convenient parameter adjustment.
*
Using pneumatic, hydraulic and electrical control components from famous manufacturers, long service life.
*
The double proportional valve controls the flow rate and pressure of the oil line, the reversing valve controls the flow direction, and the deceleration valve brakes.
Product Paramenters
|
Model No
|
Unit
|
MW-S30L
|
MW-S60L
|
MW-S80L
|
MW-S30L PC
|
|
Max product volume
|
L
|
28
|
55
|
80
|
30
|
|
Dry Cycle
|
pc/h
|
600
|
450
|
360
|
600
|
|
Screw Diameter
|
mm
|
80
|
90
|
100
|
82
|
|
Screw L/D Ration
|
L/D
|
25-28
|
25-28
|
25-28
|
25-28
|
|
Screw Motor Power
|
KW
|
30-37
|
37-45
|
45-55
|
30-37
|
|
Screw Heating Capacity
|
L
|
6.2-8.2
|
7.3-9.1
|
8.4-10.5
|
6.2-8.2
|
|
No.of Heating Zone
|
Zone
|
4
|
4
|
5
|
4
|
|
Output of HDPE
|
kg/hr
|
100-120
|
120-150
|
180-220
|
110-130(pc)
|
|
Oil Pump Driver Power
|
kw
|
30
|
37
|
45
|
45
|
|
Clamping Force
|
kn
|
215
|
260
|
300
|
215
|
|
Mold Stroke
|
mm
|
350-800
|
450-1000
|
500-1200
|
350-800
|
|
Size of Mold
|
mm
|
550X650
|
760X900
|
800X1000
|
550x650
|
|
Moving Distance
|
mm
|
300
|
350
|
420
|
300
|
|
Max.Die Diameter
|
mm
|
5.2
|
7.5
|
9.2
|
4.1
|
|
Die Heat Capacity
|
kw
|
4.4
|
6.6
|
12.8
|
4.4
|
|
Blowing Pressure
|
Mpa
|
0.8
|
0.8
|
0.8
|
1.2
|
|
Air Volume
|
Min
|
0.8
|
1.0
|
1.2
|
1.0
|
|
Cooling Water Pressure
|
Mpa
|
0.3
|
0.4
|
0.5
|
0.3
|
|
Water Consumption
|
L/min
|
60
|
85
|
100
|
60
|
|
Weight of Machine
|
Ton
|
12
|
14.5
|
16
|
12.5
|
|
Size of Machine（LXWXH）
|
m
|
4.5X2.1X3.8
|
5.2X2.2X4
|
5.4X2.2X4.5
|
5.2x2.2x4.5
|
Machine Parts
Control System
Electrical System
The electrical system includes a series of electrical components, sensors, actuators, controllers, etc., used to realize automation and precise control of the entire blow molding process.
Maiwei stretch blow molding machines use imported electrical components such as Siemens and Schneider, which have a long service life.
Professional industrial fans are embedded in the electrical cabinet to ensure stable operation of electrical equipment in a variety of environments.
Extrusion System
.
The extrusion system of the stretch blow molding machine consists of a screw extruder, heating system, die head, pressure control system, cooling system, drive system, and automation control system.
The inside of the die head is finely processed using a machining center imported from Japan, and the die head can move forward and backward.
The storage tank type die head is made of high-quality materials and has a longer service life.
Hydrulic System
Hydraulic system is a system that uses liquid (usually oil) to transfer energy and is widely used in various engineering and mechanical fields. This system uses pressure to transfer fluids to perform various mechanical tasks such as lifting, compressing, bending, rotating, etc. Maiwei's dialysate barrel extrusion blowing machine uses Japanese Yuken hydraulic valves and imported seals as well as servo control, which enables the blow molding machine to achieve high-precision, high-efficiency and reliable hydraulic system performance.
self-designed speed reduce valve, make machine working more smooth and stable.
MOOG parison controller can control the wall thickness of bottle well.
It suit to use in making big products like big barrel, irregular products, and high requirement of production for cosmetics bottle and medical bottles etc.
Diehead System
Single layer die，Double-layer die，Outer layer center feeding double layer liquid level line die，Three die heads，Four die heads，Six die heads，Three-layer die，Four-layer die，Five-layer die，Six-layer die head
Packing and Shipping
Packaging:
Stable wooden packaging protects the machine from impact and damage.
A wrapped plastic film protects the machine from moisture and corrosion.
This is a fumigation-free package that supports smooth customs clearance.
Large machines are fixed in containers without packaging.
Shipping:
At LCL, we worked with a reliable logistics team to get the machine to the port quickly and safely.
At FCL, we obtain containers, and our skilled workers carefully load the containers.
As for forwarders, we have professional and long-term cooperation forwarders who can process your shipments smoothly. We also want to achieve seamless cooperation with forwarders at your convenience.
Customization Service
We will provide the best process plan based on your product and provide a complete set of mold designs to ensure that the bottle cap (injection mold) and bottle body (blow mold) match flawlessly.
Use high-precision machining centers to process high-precision molds
* Excellent cooling effect
* Provide free proofing service
*Exquisite production technology
*Strict quality requirements
