Quick Details
-
Warranty:
-
10YEARS
-
Model Number:
-
MSD550P
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2278x1134x35mm
-
Junction Box:
-
IP68,3*bypass diode
-
cable:
-
4.0mm²,(+)300mm/(-)300mm
-
Frame:
-
Anodized aluminum alloy
-
Tempered Glass:
-
3.2mm High Permeability Coated
-
Packaging type:
-
31 pcs/pallet
-
Open Circuit Voltage:
-
49.95V
-
Short Circuit Current:
-
14.05A
-
Voltage at Pmax:
-
41.97V
-
Current at Pmax:
-
13.11A
-
40HQ:
-
620pcs
-
Certificate:
-
CE,TUV,ICE,CQC
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-

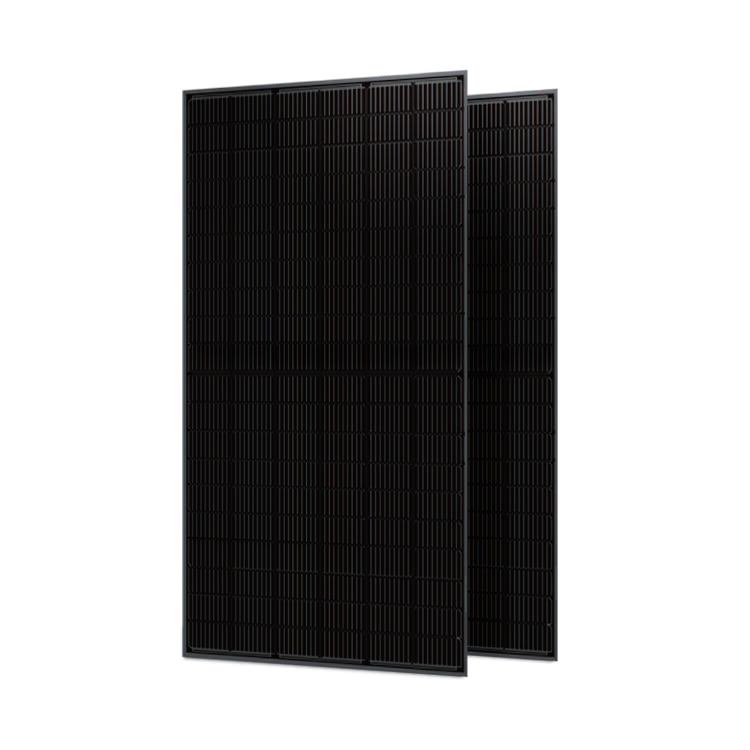

PERC, Half Cell, Double-glass, All Black
-
Panel Efficiency:
-
22.4%
-
Warranty:
-
10YEARS
-
Model Number:
-
MSD550P
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2278x1134x35mm
-
Junction Box:
-
IP68,3*bypass diode
-
cable:
-
4.0mm²,(+)300mm/(-)300mm
-
Frame:
-
Anodized aluminum alloy
-
Tempered Glass:
-
3.2mm High Permeability Coated
-
Packaging type:
-
31 pcs/pallet
-
Open Circuit Voltage:
-
49.95V
-
Short Circuit Current:
-
14.05A
-
Voltage at Pmax:
-
41.97V
-
Current at Pmax:
-
13.11A
-
40HQ:
-
620pcs
-
Certificate:
-
CE,TUV,ICE,CQC
|
Electrical Parameters at STC
|
|
|
Module Type
|
MSD550P MSD560P MSD570P MSD580P
|
|
Rate Maximum Power（Pmax）
|
550 560 570 580
|
|
Module Efficiency
|
21.3 21.7 22.0 22.4
|
|
Open Circuit Voltage（Voc）
|
49.95 50.08 50.51 50.72
|
|
Short Circuit Current（Isc）
|
14.05 14.11 14.24 14.38
|
|
Short Circuit Current（Isc）
|
41.97 42.12 42.48 42.84
|
|
Current at Pmax（Imp）
|
13.11 13.30 13.42 13.54
|
|
|
|
|
|
|
|
Mechanical Parameters
|
|
|
Solar Cell（Type/Size）
|
Mono(182mm)
|
|
Solar Cells Number
|
144pcs(6x24）
|
|
Dimension
|
2278x1134x35mm
|
|
Weight
|
28.5kg/Pcs
|
|
Tempered Glass
|
3.2 Glass+EVA Film+Back
|
|
Junction Box
|
IP68/3*Bypass Diode
|
|
Cable
|
4.0mm²/300mm
|
|
Mechanical Load
|
Front 5400PA/back 2400PA
|
|
|
|
|
Packing
|
|
|
Number
|
31 pcs/pallet
|
|
40HQ Container
|
620pcs
|
