Quick Details
-
Use:
-
Grain
-
Production Capacity (kg/h):
-
2000 - 3000
-
Power (kW):
-
7.5
-
Weight:
-
250 KG
-
Product name:
-
Maize grading machine
-
Power:
-
7kw
-
Application:
-
rice, wheat, corn, sunflower seed etc
-
Capacity:
-
2~3t/h
-
Dimension:
-
2800*1350*1500mm
-
Raw material:
-
carbon steel
-
Package:
-
plywood case
-
MOQ:
-
1 SET
-
Keywords:
-
grain cleaning machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhengzhou Pasen Machinery
-
Type:
-
Farm Equipment, farm machinery
-
Use:
-
Grain
-
Production Capacity (kg/h):
-
2000 - 3000
-
Power (kW):
-
7.5
-
Weight:
-
250 KG
-
Product name:
-
Maize grading machine
-
Power:
-
7kw
-
Application:
-
rice, wheat, corn, sunflower seed etc
-
Capacity:
-
2~3t/h
-
Dimension:
-
2800*1350*1500mm
-
Raw material:
-
carbon steel
-
Package:
-
plywood case
-
MOQ:
-
1 SET
-
Keywords:
-
grain cleaning machine
Product Introduction

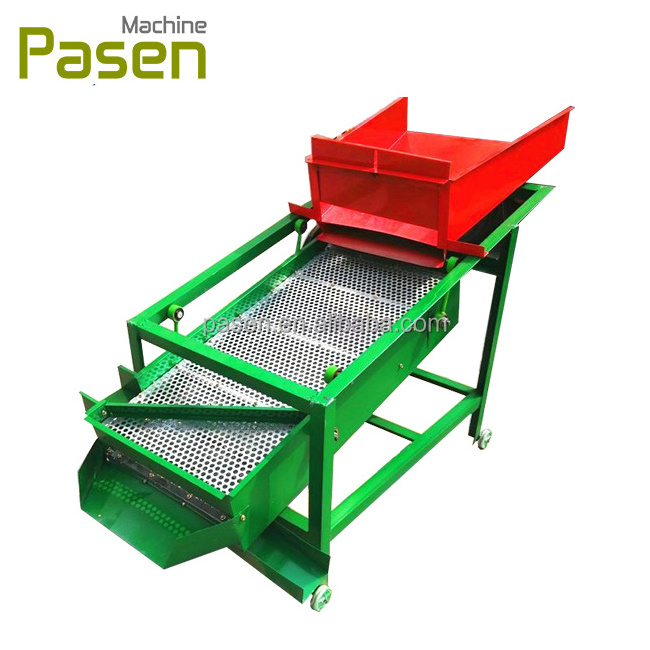

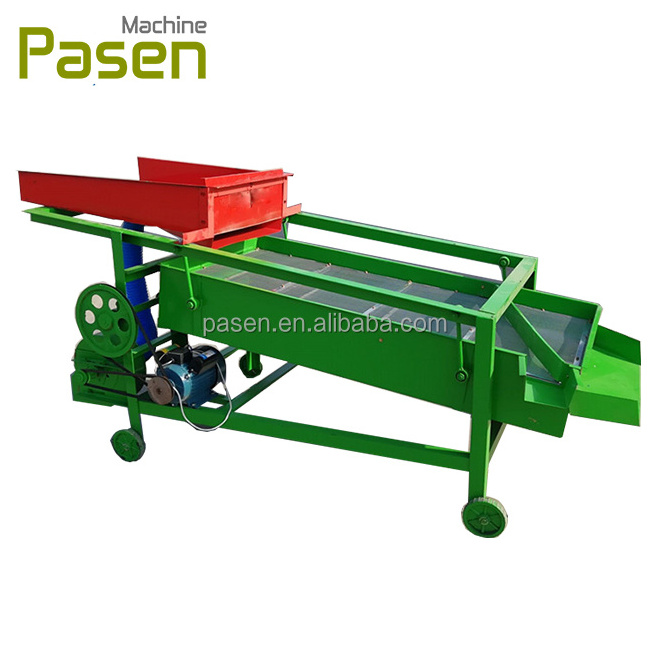

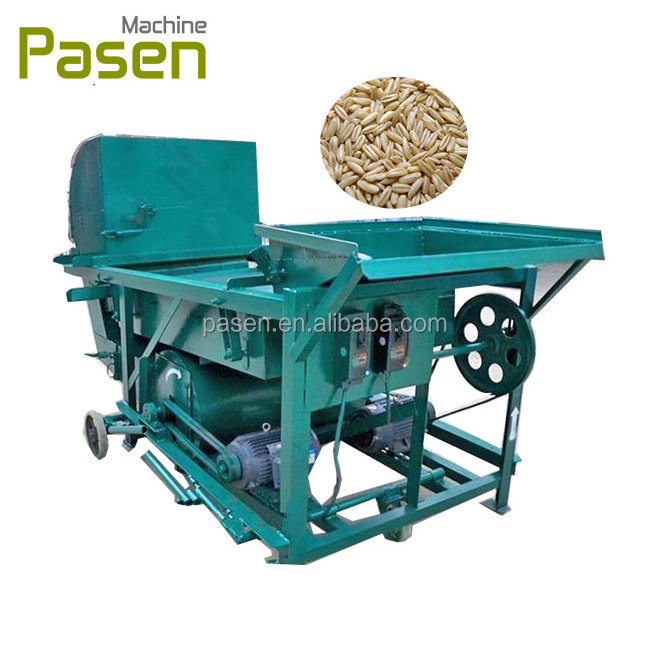

Maize grading machine / corn cleaner / cumin seed cleaning machine
1.The grain is conveyed into feed hopper by belt conveyor or bucket conveyor and then flows from feed hopper to vibrating screen.
2.The vibrating screen is a triple-deck screen .The grain on the screen cloths bounces forward.
3.The first layer screen sieves out the big corn cobs, corn cobs with niblet and pebbles, and then the grain flows to the second layer screen.
4.The stones and lumps smaller than grains can be sifted out and flow out from the third outlet.
5.The grain on the second layer screen flows into the trash bin , and then the fan blows out the dust and stive in the grain.
6.Finally the net grain flows out from the discharge hole .
7.It can be used for separating and removing the impurities from wheat, rice, corn, soybean and others kinds of grain.
2.The vibrating screen is a triple-deck screen .The grain on the screen cloths bounces forward.
3.The first layer screen sieves out the big corn cobs, corn cobs with niblet and pebbles, and then the grain flows to the second layer screen.
4.The stones and lumps smaller than grains can be sifted out and flow out from the third outlet.
5.The grain on the second layer screen flows into the trash bin , and then the fan blows out the dust and stive in the grain.
6.Finally the net grain flows out from the discharge hole .
7.It can be used for separating and removing the impurities from wheat, rice, corn, soybean and others kinds of grain.
Specification of cumin seed cleaning machine
|
Model
|
P-HYL8
|
P-HYL2
|
|
Capacity
|
7~8T/H
|
2~3T/H
|
|
Dimension
|
2800*1350*1500mm
|
1700*1000*900mm
|
|
Power
|
7kw
|
2.2kw
|
|
Voltage
|
380v, 50hz, 3phases
|
380v, 50hz, 3phases
|
|
Scren quantity
|
3pcs
|
2~3pcs
|
