Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
gwiec
-
Model Number:
-
xb2-31
-
Model Number::
-
XB2-BA
-
Electric Life::
-
200000 Operations Minimum
-
Operation type::
-
Momentary / Latching
-
Material::
-
Plastic, Metal
-
Type::
-
Electronic control system
-
Contact action::
-
NO or NC
-
Color::
-
Red/ Yellow/ Green /Blue /White/Black
-
Packaging Details::
-
PAPER BOX
-
Mounting Hole Size:
-
22mm
-
Custom:
-
Yes
Quick Details
-
Protection Level:
-
IP40/IP65
-
Max. Current:
-
10A
-
Max. Voltage:
-
440V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
gwiec
-
Model Number:
-
xb2-31
-
Model Number::
-
XB2-BA
-
Electric Life::
-
200000 Operations Minimum
-
Operation type::
-
Momentary / Latching
-
Material::
-
Plastic, Metal
-
Type::
-
Electronic control system
-
Contact action::
-
NO or NC
-
Color::
-
Red/ Yellow/ Green /Blue /White/Black
-
Packaging Details::
-
PAPER BOX
-
Mounting Hole Size:
-
22mm
-
Custom:
-
Yes
Application
XB2 series pushbutton switches are used in industrial controlling circuits of AC 50Hz or 60Hz, rated operational voltage up to 380V and below, DC operational voltage up to 220V and below for controlling in magnetic starter, contactor, relay and other electrical circuits. The buttons with indication conform with the standard of GB14048.5-2001.

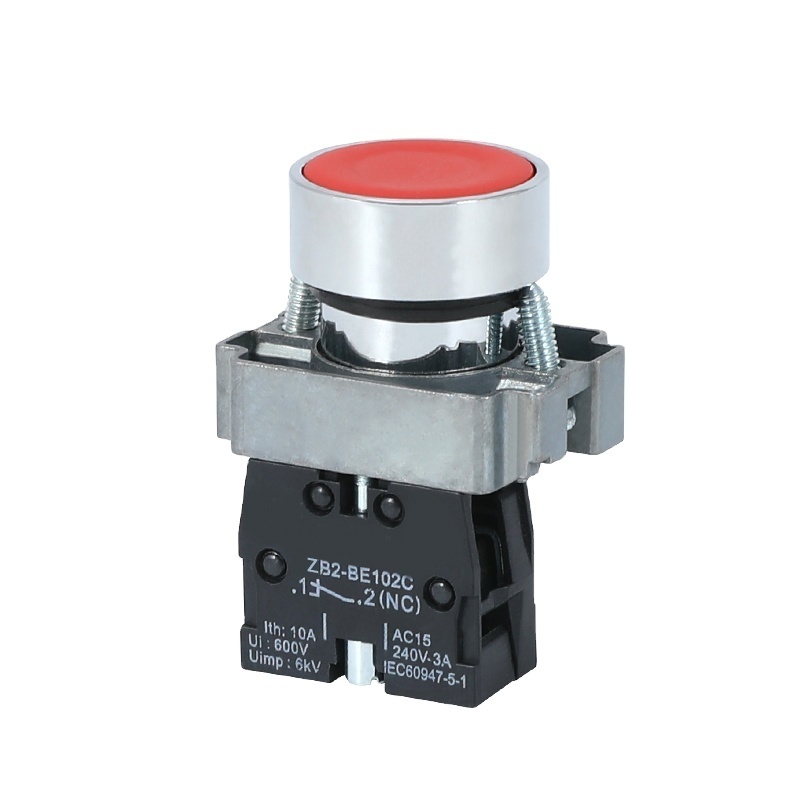

Item Name:Push Button Switch
Action Type:Momentary
Contact Type:1 NC
Mount Hole Diameter: 22mm / 0.87"(7/8")
Fit Panel Thickness(Adjustable):Max 5mm / 0.2"
Size :39 x 29 x 55mm/ 1.5" x 1.1" x 2.2"(L*W*H)
Material:Plastic, Metal
Button Color:black, white, red, green, yellow, blue
| Description | Contact | Color | Type |
|
Even button spring return
|
N/O | white | XB2-BA11 |
| black | XB2-BA21 | ||
| green | XB2-BA31 | ||
| yellow | XB2-BA51 | ||
| blue | XB2-BA61 | ||
| N/C | red | XB2-BA42 | |
| Even button spring return | N/O+N/C | black | XB2-BA25 |
| green | XB2-BA35 | ||
| yellow | XB2-BA55 | ||
| blue | XB2-BA65 | ||
| red | XB2-BA45 |
