Quick Details
-
Panel Size:
-
320x160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P5
-
Usage:
-
Outdoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Certificate:
-
CE ROHS FCC
-
Power Supply:
-
Meanwell
-
Life span:
-
100000hours
-
Screen Dimension:
-
960mm*320mm
-
Pixels:
-
Other
-
Pixel Pitch:
-
5mm
Quick Details
-
Application:
-
video / picture, Taxi
-
Brand Name:
-
YK
-
Color:
-
full color, 1R1G1B
-
Panel Size:
-
320x160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P5
-
Usage:
-
Outdoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Certificate:
-
CE ROHS FCC
-
Power Supply:
-
Meanwell
-
Life span:
-
100000hours
-
Screen Dimension:
-
960mm*320mm
-
Pixels:
-
Other
-
Pixel Pitch:
-
5mm
Quick Detail:
1. SMD3528 LED type ;
2. 3 pcs power supply equipped ;
3. Maximum power consumption about 600 W ;
4. Ventilation holes at the two sides ;
5. 3 pcs fans inside;
6. Rectangle shape.
Detail Description:
There are 3 pcs power supplies of 5V 40A equipped, with DC 9 ~ 12V for each;
The maximum power consumption is about 600 W, average is 400 W;
Easy maintenance, convenient installation, high rate of return.
Application:

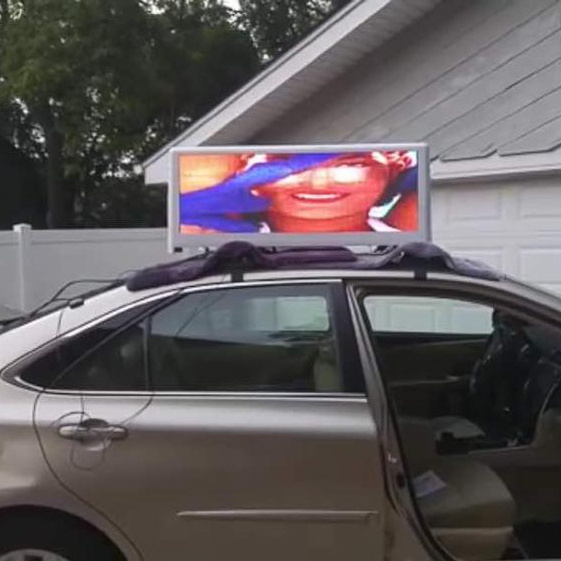

Taxi LED display is installed on top of taxi cab for showing video, animation, graphic, text, etc.
Specifications:
|
Model |
P5 |
|
LED composition |
1R 1G 1B |
|
LED Type |
SMD3528 |
|
Resolution (Each side) |
W 192 × H 64 = 12,288 dots |
|
LED Module (Each side) |
W 6 × H 2 = 12 pcs |
|
LED Module |
W 32 × H 32 dots |
|
LED Module Size |
W 160 × H 160 mm |
|
Screen Measurement |
W 960 × H 320 mm |
|
Cabinet Dimension |
W 1018 × H 408 × D 180 mm |
|
Material |
Aluminum |
|
Colour |
Silver |
|
Weight |
about 23 kg/pc |
|
Depth |
180 mm |
|
Brightness |
About 3500 nits/sqm |
|
Power Voltage |
DC 9 ~ 12V |
|
Output Voltage |
DC 5V |
|
Video Formats |
AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV |
|
Animation Formats |
GIF, SWF |
|
Picture Formats |
JPG, BMP, WMF |
|
Control Method |
3G |
|
Power Consumption (MAX.) |
About 600 W |
|
Package |
Plywood case |
