Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB22K4-P20Z-E-P
-
Product type:
-
Waterproof Push Button Switch
-
Mounting hole diameter:
-
22mm
-
Head shape:
-
Flat head
-
Switch combination:
-
2NO
-
Operation type:
-
Latching
-
Terminal type:
-
Solder terminal
-
Material:
-
Nickel-Plated Brass
-
Housing color:
-
Silver
-
Feature:
-
Waterproof
-
Product name:
-
button switch 22mm momentary push button switch
-
Certification:
-
CE/ROHS/ISO9001
Quick Details
-
Protection Level:
-
IP65/IP67
-
Max. Current:
-
16A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB22K4-P20Z-E-P
-
Product type:
-
Waterproof Push Button Switch
-
Mounting hole diameter:
-
22mm
-
Head shape:
-
Flat head
-
Switch combination:
-
2NO
-
Operation type:
-
Latching
-
Terminal type:
-
Solder terminal
-
Material:
-
Nickel-Plated Brass
-
Housing color:
-
Silver
-
Feature:
-
Waterproof
-
Product name:
-
button switch 22mm momentary push button switch
-
Certification:
-
CE/ROHS/ISO9001

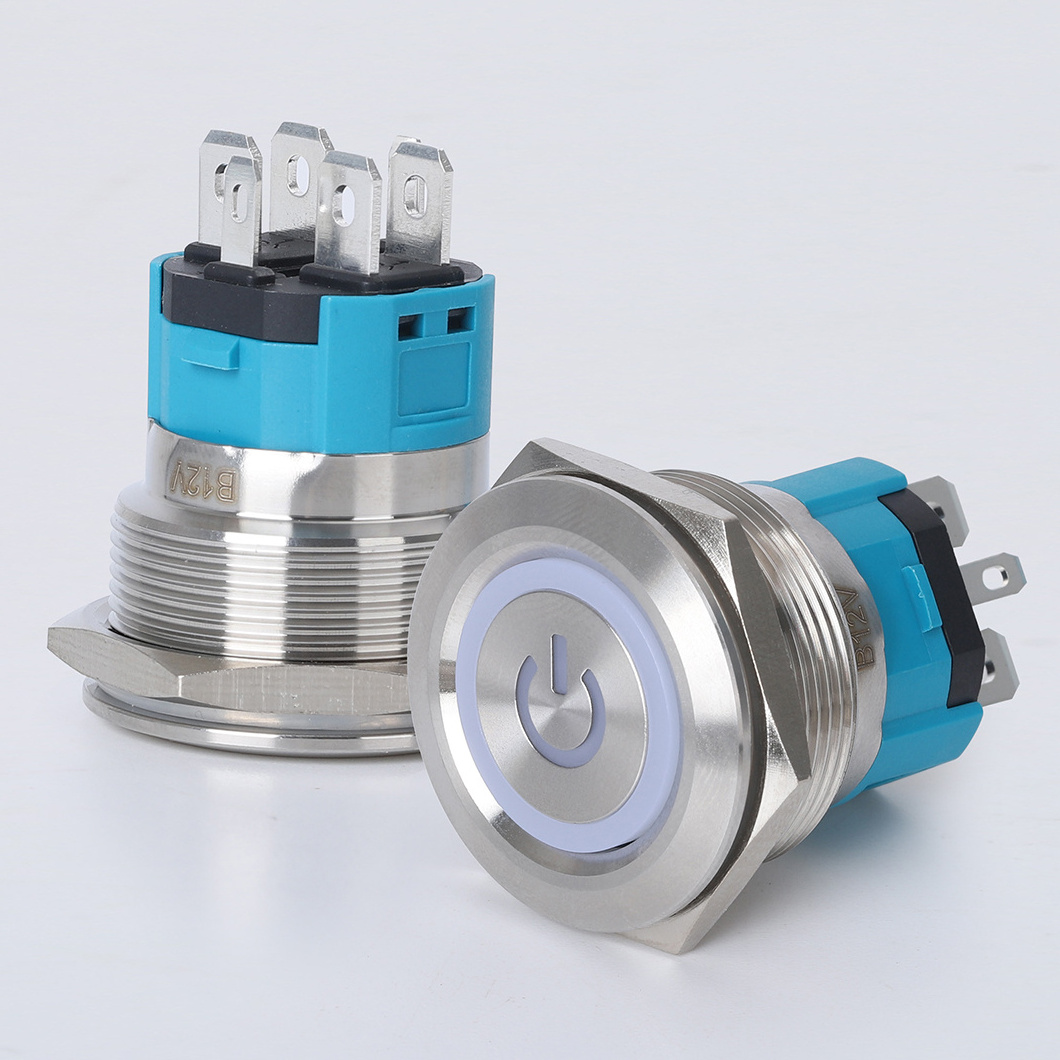

Products Description
Description:
Great for electron magnetic Starter, relay, Horn Button Switch,
PC Power Switch or any circuit controls on over 500,000 cycles.
Ring LED can be on all the time or only when switch is on which depends on how you wire it.
High quality metal material & IP65 IP67 waterproof protection can be used in wet or dusty environment.
PC Power Switch or any circuit controls on over 500,000 cycles.
Ring LED can be on all the time or only when switch is on which depends on how you wire it.
High quality metal material & IP65 IP67 waterproof protection can be used in wet or dusty environment.
Specification:
Mounting Hole Size:
Φ16mm
Φ19mm
Φ22mm
Φ25mm
Switch Rating: 16A/250AC
Switch Combination : 1NO 1NO1NC 2NO
Operated function: Momentary / Self locking
Head type: Flat head
Enclosure Material: Nickel Plated Brass/ Stainless Steel
Lamp Type: Ring led / power logo
Illuminated LED Voltage: 12V
Degree of Protection: IP65/IP67, IK10
Switch Rating: 16A/250AC
Switch Combination : 1NO 1NO1NC 2NO
Operated function: Momentary / Self locking
Head type: Flat head
Enclosure Material: Nickel Plated Brass/ Stainless Steel
Lamp Type: Ring led / power logo
Illuminated LED Voltage: 12V
Degree of Protection: IP65/IP67, IK10
The Wire Connector:
With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch, and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket
Note:
-These switches come with a rubber O-ring which makes them splash resistant
but they can NOT be submerged underwater
-The project you are going to be used for, don't let current go above 5 amps.
Or the switch will get warm and to be burned out
Or the switch will get warm and to be burned out
Product Paramenters
|
Model Specification
|
|
|
|
Model NO.
|
IB22K4 series push button switch
|
|
|
Mounting diameter
|
22mm
|
|
|
Head shape
|
Flat head
|
|
|
Switch Combination
|
2NO
|
|
|
Operation type
|
Latching
|
|
|
Rated Current
|
16A
|
|
|
Illuminating type
|
Ring led, Power logo, Ring and power
|
|
|
Illuminating color
|
Red,green,blue,yellow,orange,white,purple
|
|
|
Lamp voltage
|
2V/3V/6V/12V/24V/36V/110V/220V/250V
|
|
|
Shell material
|
Brass nickel,Stainless steel,aluminum oxide
|
|
|
Contact Resistance
|
50mΩ max
|
|
|
Insulation Resistance
|
1000MΩ Min
|
|
|
Dielectric Intensity
|
2000VAC
|
|
|
Accessories
|
Nut, Rubber Waterproof O-ring
|
|
