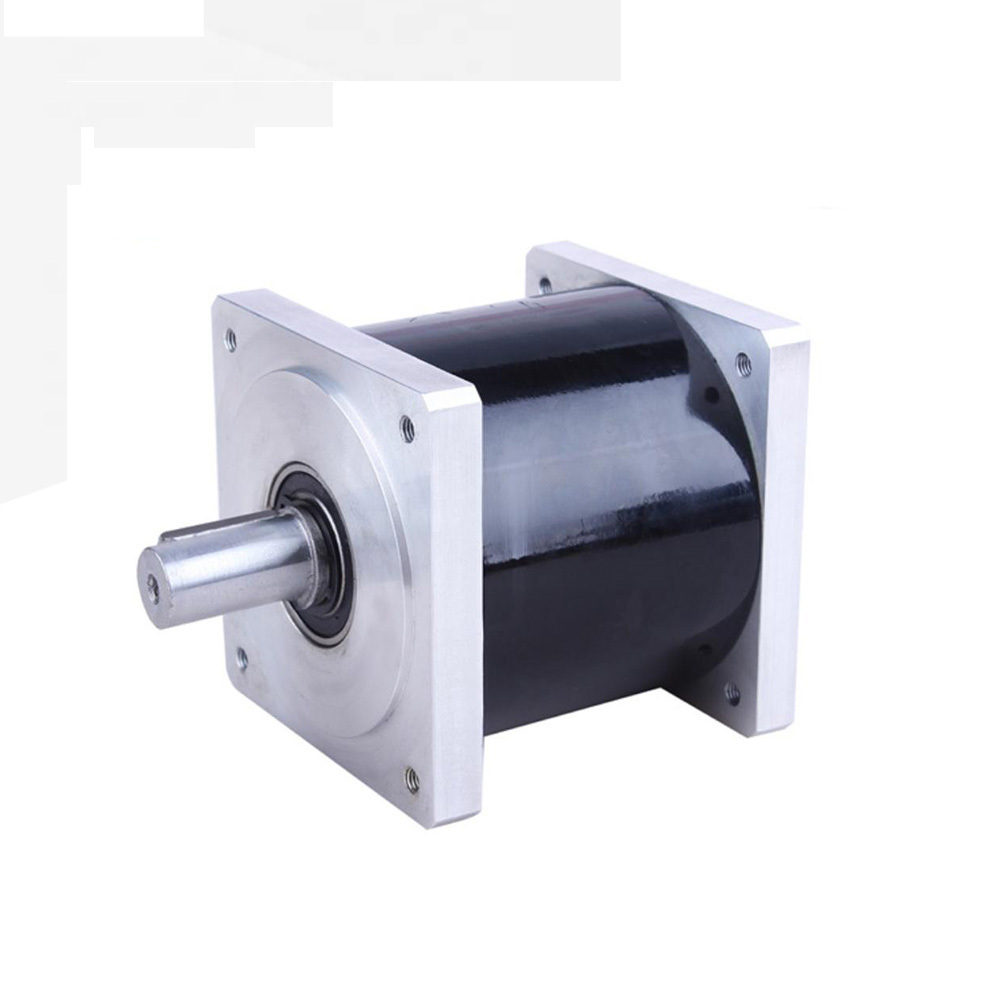

High Torque Low Speed Reverse pto Gearbox With Clamping Ring

High Torque Low Speed Reverse pto Gearbox With Clamping Ring

FOB Reference Price: Get Latest Price

≥5 Pieces

US $196

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output Speed:: 0RPM-1600RPM

Place of Origin:: Zhejiang, China

Brand Name:: LUNYEE

Ratio:: 4-100

Weight (kg):: 0.4-5.8

Flange Shape:: round flange or square flange base on you

application:: printing machine, packing machine, CNC tools, sweeping machine

Operating temp:: -25°C-+90°C

Full load efficiency:: 90%-98%

IP:: IP54/IP65

Lubrication type:: Lifetime

Quick Details

Gearing Arrangement:: Planetary

Output Torque:: 4.5-2590N. m

Input Speed:: 0RPM-5000RPM

Output Speed:: 0RPM-1600RPM

Place of Origin:: Zhejiang, China

Brand Name:: LUNYEE

Ratio:: 4-100

Weight (kg):: 0.4-5.8

Flange Shape:: round flange or square flange base on you

application:: printing machine, packing machine, CNC tools, sweeping machine

Operating temp:: -25°C-+90°C

Full load efficiency:: 90%-98%

IP:: IP54/IP65

Lubrication type:: Lifetime

High Torque Low Speed Reverse pto Gearbox With Clamping Ring

Product Description

High Torque Low Speed Reverse pto Gearbox With Clamping Ring

Brief introduction:

*Theory

Gear box is used to transfer rotation and torque from motor to working machine,

*Function

the function is to decrease speed by gears and increase torque.

*Main characteristic

low backlash
high output torque-the industry's highest torque density
balanced motor pinion
high efficiency(up to 98%)
ratio 3:1 to 1000:1
low noise
operable in any mounting positions
lifetime lubrication

High Torque Low Speed Reverse pto Gearbox With Clamping Ring

Main Specfication

Product Type		PL40	PL60	PL80	PL120	PL160	Reduction Ratio	Number of Stage
Rated Output Torque	N.M	4.5	12	40	80	400	3	1
		6	16	50	100	450	4
		6	16	50	110	450	5
		5	15	45	120	450	8
		5	15	45	120	305	10
		16.5	44	110	210	/	9	2
		18	44	120	260	800	12
		18	40	110	230	700	15
		20	44	120	260	800	16
		20	44	120	260	800	20
		18	40	110	230	700	25
		20	44	120	260	800	32
		18	40	110	230	700	40
		7.5	18	50	120	450	64
		20	44	120	260	/	60	3
		20	44	120	260	/	80
		20	44	120	260	/	100
		18	40	110	230	/	120
		20	44	120	260	/	160
		18	40	110	230	/	200
		20	44	120	260	/	156
		18	40	110	230	/	320
		7.5	18	50	120	/	512

Installation Dimensions High Torque Low Speed Reverse pto Gearbox With Clamping Ring

Maintenance: High Torque Low Speed Reverse pto Gearbox With Clamping Ring

1.After 300-hours operation, please change the oil, and flush the gear uint with suitable detergents.

2.Please do not mix the mineral oil and synthetic oil.

Applications

*Filed:

Be widely used for materials handing equipment, engineering machinery ,metallurgy industry, mining industry,petrochemical industry, construction machinery,textile industry, medical apparatus and instruments , instrument and meter industry,automobile industry, marine industry,weapons industry, aerospace field ,and so on.

High Torque Low Speed Reverse pto Gearbox With Clamping Ring

* case:

Automatic door	Carton sealer	DC motor	Food machine	Printing machine	Stepper motor
AC motor	Conveying machine	Diesel engine parts	Foam machine	Packing machine	Servo motor
CNC	Crane machine	Dyeing machine	Lawn mower	Paper machine	Textile machine
