- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SJNX
-
Application:
-
Home Hospital
-
Function:
-
Heart Rate Measuring
-
Color:
-
Black, Burgundy, Navy Blue, etc.
-
Keywords:
-
Electronic stethoscope
-
Advantage:
-
Accurate Easy-to-use
Quick Details
-
Properties:
-
heart rate testing
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SJNX
-
Model Number:
-
SJNX
-
Application:
-
Home Hospital
-
Function:
-
Heart Rate Measuring
-
Color:
-
Black, Burgundy, Navy Blue, etc.
-
Keywords:
-
Electronic stethoscope
-
Advantage:
-
Accurate Easy-to-use
Product Description
How it Works:
1.Download
Download app from via Google Play Store, App Store (EU countries) or App Store (other countries)
2.Link
Turn on the power of the stethoscope, log in to the mobile application, and add the device according to the operation prompts.
3.Measurement
After the equipment is added, directly put the stethoscope on the relevant body parts.
4.Record
Record the examination via app and share the recording to the doctor.
Package Include:

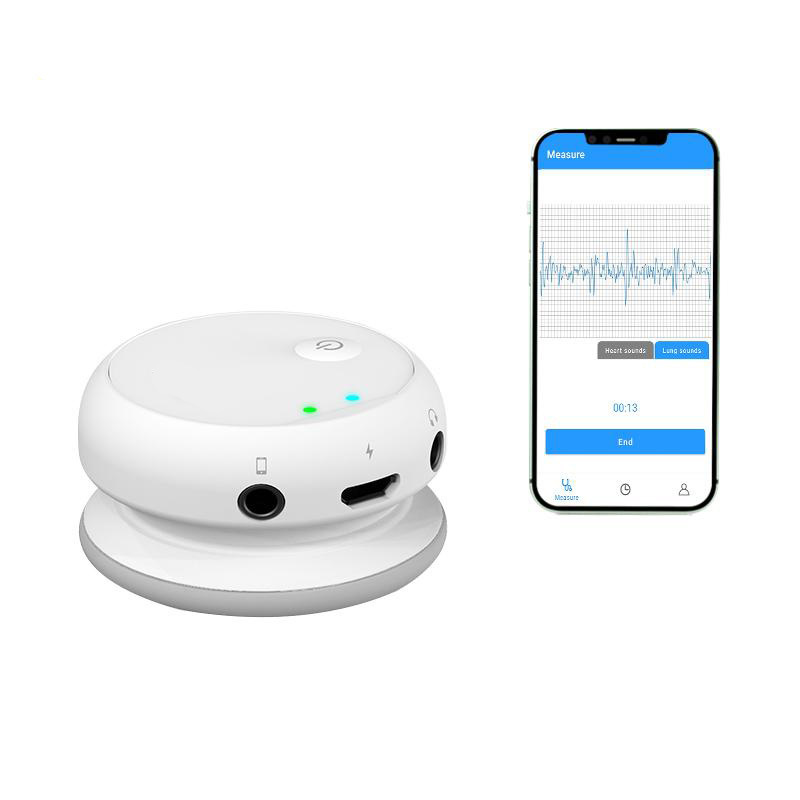

Linktop Digital Stethoscope
Magnetic USB charging cable
Instruction manual
Storage and transport conditions:
Temperature: -20°C to 60°C
Relative humidity: 10% to 95%
Atmospheric pressure: 700 hPa ~1060 hPa
Relative humidity: 10% to 95%
Atmospheric pressure: 700 hPa ~1060 hPa
Operation conditions:
Temperature: 5°C to 40°C
Relative humidity: from 10% to 95%
Atmospheric pressure: 700 hPa ~1060 hPa
Relative humidity: from 10% to 95%
Atmospheric pressure: 700 hPa ~1060 hPa
Specification
|
Product Size
|
- 45 x 45 x 26 mm (H x W x D)
- 1.77 x 1.77 x 1.02 inches (H x W x D) • Weight: 78 g / 2.75 oz / 0.17 lb |
|
Requirements
|
Android 6.0 or Higher
• iOS 11 or Higher • The authorized application • Bluetooth Smart • Online connection |
|
The box contains
|
Stethoscope
• Magnetic USB charging cable • Instruction manual • The authorized 3.5mm Headphone (Optional) • USB – mini jack recording cable (Optional) The box content depends on the offer selected. |
|
Probe
|
• Chest piece Finish: Matte Finish
• Chest piece Technology: Single sided • Chest piece Material: Kirsite • Diaphragm Diameter: 43.8 mm / 1.7 inches • Diaphragm Material - Polyurethane-Coated Silicone - Non-chill diaphragm cover • Digital Electronic Filtering - Ambient Noise Reduction (ANR) |
|
User interface
|
• Product Color: White
• Suitable for: Adult, Infant, Pediatric • Pickup frequency range: 20Hz-3KHz • Eliminate 85% (on average) of ambient noise • Amplify sounds up to 24x • Frequency modes - Diaphragm - Bell • Auscultation mode - Listen remotely via NexStetho App - Listen via 3.5mm headset • Single key - Power On/Off - Switch Diaphragm/Bell mode • Blue and Green LED indicators • Bluetooth 5.0 |
|
Power and Interface
|
• Power requirements: 3.3V~4.2V
• Battery capacity: 200mAh • The power adapter: DC 5V/500mA • Magnetic USB charging interface • 1 x 3.5mm Headphone • 1 x 3.5mm Recording |
|
Environmental requirements
|
• Working temperature: -10°C -40°C (14-113 °F)
• Relative humidity: 5-95%, non-condensing • Storage temperature: -25°C~70°C |
|
Warranty
|
2-year limited hardware
|
Packing & Delivery
- 45 x 45 x 26 mm (H x W x D)
- 1.77 x 1.77 x 1.02 inches (H x W x D)
• Weight: 78 g / 2.75 oz / 0.17 lb
- 1.77 x 1.77 x 1.02 inches (H x W x D)
• Weight: 78 g / 2.75 oz / 0.17 lb
