QC12K series hydraulic shearing machine is suitable for cutting carbon steel,stainless steel,galvanized sheet,aluminum and many other metals.It is widely used in metal processing industry,machine building industry,building construction,mining industry,railway construction and Aerospace Industry.
- Product Details
- {{item.text}}
Quick Details
-
Blade Length (mm):
-
3200 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
100 mm
-
Brand Name:
-
Miharting
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
3500 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
220V/380V/Customized
-
Dimension(L*W*H):
-
3040*1700*1700mm
-
Year:
-
2022
-
Marketing Type:
-
Hot Product 2022
-
Material thickness:
-
0-40mm
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Cutting mode:
-
Cutting Things Under Ultra High Pressure
-
Cutting thickness:
-
0-40mm automatic Hydraulic cutting machine
-
Color:
-
customized
-
Control system:
-
CNC Controller
-
Usage:
-
steel shearing machine
-
Brand:
-
miharting
-
Cutting angle:
-
1.5
-
Stroke times:
-
10 times/min
Quick Details
-
Max. Cutting Width (mm):
-
3200
-
Max. Cutting Thickness (mm):
-
4 mm
-
Shearing Angle:
-
1.5
-
Blade Length (mm):
-
3200 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
100 mm
-
Brand Name:
-
Miharting
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
3500 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
220V/380V/Customized
-
Dimension(L*W*H):
-
3040*1700*1700mm
-
Year:
-
2022
-
Marketing Type:
-
Hot Product 2022
-
Material thickness:
-
0-40mm
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Cutting mode:
-
Cutting Things Under Ultra High Pressure
-
Cutting thickness:
-
0-40mm automatic Hydraulic cutting machine
-
Color:
-
customized
-
Control system:
-
CNC Controller
-
Usage:
-
steel shearing machine
-
Brand:
-
miharting
-
Cutting angle:
-
1.5
-
Stroke times:
-
10 times/min
Products Description

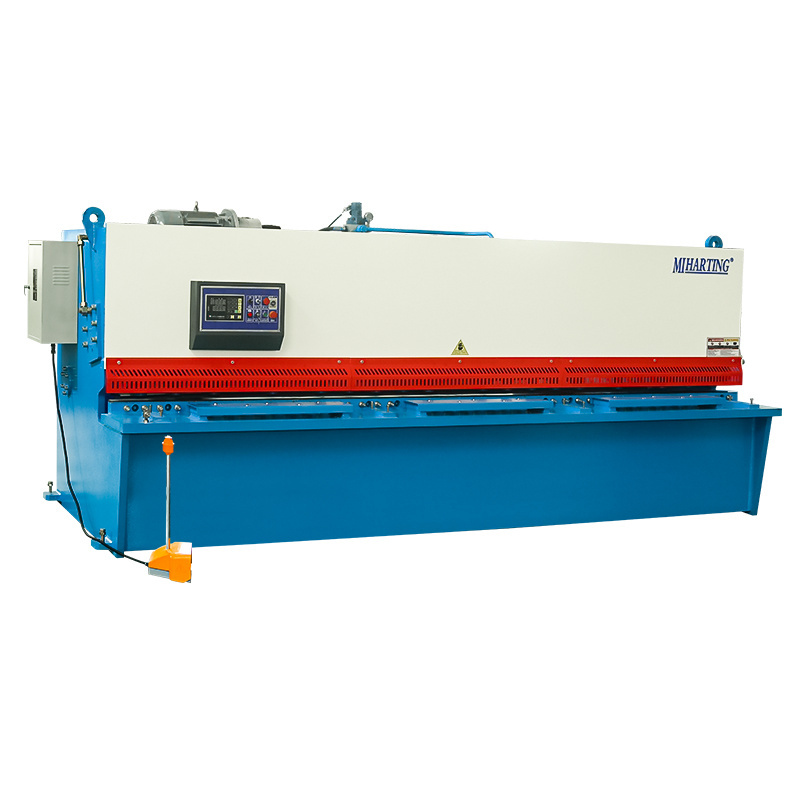

Hot selling MD11 shearing machine hydraulic CNC swing beam shearing machine sheet metal shearing machine
Details Images
Food switch is movable and can stop the machine anytime by the emergency button
Made of high-quality alloy steel, which can meet the requirements of impact and high wear resistance during shearing
Blade clearance adjuster can easily adjust blade
separation distance
The LCD interactive interface is more user-friendly and easy to operate
No debugging, only need to log twice
9 products can be programmed, and 9 steps can be input for each product
German Bosch modular hydraulic system special for press brakes, full loop controlling the synchronization of ram. High frequency
hydraulic system, low failure rate, machine will run fast and stably
hydraulic system, low failure rate, machine will run fast and stably
German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment
American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system
Good-looking structure and reduce the possibility of oil leakage
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement
anywhere in the world
anywhere in the world
Product Paramenters
|
No
|
Item
|
Data
|
|
1
|
Model
|
QC12K-4x3200
|
|
2
|
Max. Cutting Thickness
|
4mm
|
|
3
|
Max. Cutting Width
|
3200mm
|
|
4
|
Function
|
Cutting Metal Plate
|
|
5
|
Motor Power
|
5.5 kw
|
|
6
|
Stroke Times
|
18 times/min
|
|
7
|
Weight
|
3T
|
|
8
|
Dimension
|
3900x1600x1600mm
|
