Quick Details
-
Application:
-
Deburring Polishing
-
Product name:
-
Vibration Polishing Machine
-
Usage:
-
Polishing Surface
-
Keyword:
-
Finishing Machine
-
Function:
-
Polishing Stainless Steel
-
Name:
-
Rotary Polishing Machine
-
After-sales Service Provided:
-
Video Technical Support
-
Machine Type:
-
Finshing Machine
-
Type:
-
Centrifugal Disc Finishing Machine
-
Voltage:
-
380V 50Hz 3Phase/Customized
Quick Details
-
Place of Origin:
-
China
-
Power (kW):
-
1.1
-
Weight (KG):
-
250
-
Application:
-
Deburring Polishing
-
Product name:
-
Vibration Polishing Machine
-
Usage:
-
Polishing Surface
-
Keyword:
-
Finishing Machine
-
Function:
-
Polishing Stainless Steel
-
Name:
-
Rotary Polishing Machine
-
After-sales Service Provided:
-
Video Technical Support
-
Machine Type:
-
Finshing Machine
-
Type:
-
Centrifugal Disc Finishing Machine
-
Voltage:
-
380V 50Hz 3Phase/Customized
Centrifugal Barrel Finisher
Feature Description
The whole machine is divided into 4 separate rolling drums, with bamboo and wood as the wall material. Bamboo and wood can better reduce the use of rolling oil than previous wooden rolling drums.
Bamboo fiber: The density of bamboo fiber rollers is higher than that of traditional wooden materials, reducing the use of polishing oil. It can better maintain the constant temperature of the inner barrel, making the grinding effect of the workpiece more ideal and shortening the polishing time
Automatic ventilation system: a patented product that maintains a constant temperature inside the barrel, ensuring that the product does not shrink or deform due to high temperature
| Carrying | Size | Motor | W | Speed |
| 250*4 | 2.7*1.15*1.6 | 1.1kw | 732kg | 0-60r/min |
Instructions for use
Example:
1, Grind diamond shaped coarse beech wood and add corresponding polishing oil additives (surface smoothness)
2, Grind the quadrilateral beech wood and add the corresponding polishing oil additive (repair)
3, Grind the quadrilateral fine beech wood and add the corresponding polishing oil additive (brightness)
According to the product: the grinding medium used in each step, the rolling oil additive, and the grinding time are also different
Purpose/Application Area
Scope of application: Metal accessories, hardware products, plastic tools, automotive parts, medical products, sheet metal eyeglass frames, etc
For surface treatment of products such as acetate fiber, plastic, and metal, to improve the smoothness and brightness of the product surface, improve efficiency for subsequent processing, and save costs.
Application areas: centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for quartz disc
centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for brass electrical contact
centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for brass fitting
centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for stainless steel electrical connection tube
centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for deburring brass electronic connector
centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for deburr and polish vape components
centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for deburring stainless steel plunger components
centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for stapler blades
centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for rifle receiver
centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for paint gun frame
centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for rifle clip component
centrifugal barrel grinding and polishing disc finishing industrial tumbler machine for gun triggers
Centrifugal Barrel Finisher features four 48” wide by 8’’ diameter barrels.
The lids are not removed during operation on the machine. Each barrel has 5 hinges with springs along the back side of the cover to aid in opening the lid. The operator simply unlatches the front locking mechanisms and lifts the lid to open each barrel. The barrel lid will remain open while the operator loads or unloads the machine.

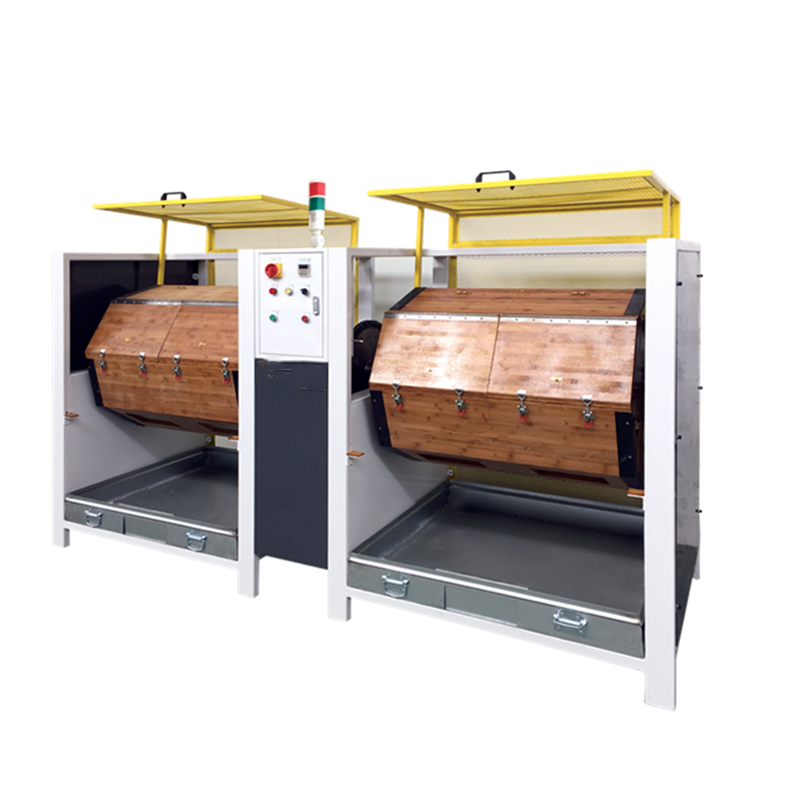

The single-layer double barrel dry rolling polishing machine (slow speed wooden rolling barrel machine) is suitable for dry rough grinding and polishing treatment of metal and plastic components. It is composed of a large capacity octagonal wooden barrel with a constant speed of 34 revolutions per minute. The workpiece and abrasive in the barrel slide with the rotation of the wooden rolling barrel, flowing from high points to low points, and repeatedly operating to form a sliding layer, thereby producing a strong grinding effect,
Example:
1, Grind with dry grinding medium and add an appropriate amount of grinding additives
According to the product: the added dry grinding medium and grinding additives are different, and the grinding time is also different
Application scope:
Metal accessories, hardware products, plastic products, automotive parts, medical products, sheet metal eyeglass frames, etc
Mass finishing with a centrifugal barrel tumbler can be performed either wet or dry. Wet processes use a liquid lubricant, cleaner or abrasive, and dry processes do not. Each of the four barrels is loaded to roughly 50-80% of capacity with the following elements:
Free Parts Testing for Centrifugal Barrel Finishing
Use of the correct tumbling media is crucial for centrifugal barrel finishing. The wrong media, particularly the wrong geometry, can double the cycle time for parts. Using cones or cylinders for tumbling media when not appropriate can slow down processing time significantly.
Offers free testing of parts and a complete processing recipe – cycle time, RPMs, tumbling media, detergent ratios – with purchase of any centrifugal barrel finishing system.
Put our expertise with centrifugal barrel finishing to work for you, and send in a batch of parts for testing today! Contact us to receive your free assessment.
Barrel Finishing for Deburring and Polishing
Whether you’re looking for a deburring tumbler to remove rough edges, or a metal polishing machine for finishing touches, a centrifugal barrel finishing machine from gets the job done.
