Quick Details
-
Model Number:
-

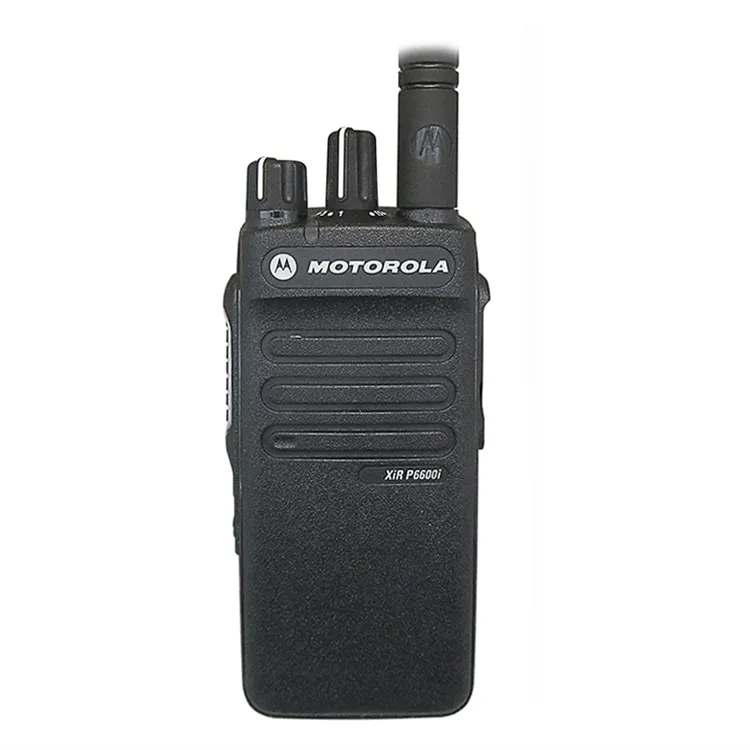

Xir P6600i
-
Dimensions:
-
-
-
Frequency Range:
-
VHF:136-174MHz / UHF: 403-527MHz
-
Frequency stability::
-
not higher than ±0.5ppm
-
Number of channel groups::
-
at least 16 channel groups
-
Channel interval::
-
12.5khz, 25kHz channel interval
-
Operating temperature::
-
-30~60℃; Storage temperature: -40~85℃
-
Audio distortion::
-
≤ 3%
-
Rated audio frequency:
-
0.5W
Quick Details
-
Talk Range:
-
-
-
Storage Channel:
-
16
-
Place of Origin:
-
China
-
Model Number:
-
Xir P6600i
-
Dimensions:
-
-
-
Frequency Range:
-
VHF:136-174MHz / UHF: 403-527MHz
-
Frequency stability::
-
not higher than ±0.5ppm
-
Number of channel groups::
-
at least 16 channel groups
-
Channel interval::
-
12.5khz, 25kHz channel interval
-
Operating temperature::
-
-30~60℃; Storage temperature: -40~85℃
-
Audio distortion::
-
≤ 3%
-
Rated audio frequency:
-
0.5W
Product Description
Specification
|
Using TDMA digital technology, in line with digital mobile wireless (DMR) standards
|
|
Dustproof and waterproof grade is not lower than IP67
|
|
Conforming to military standard MIL-STD 810D/E/
|
|
Meet the national explosion-proof (FM) standard, explosion-proof grade is not lower than Ex IB IIB T3; Meet gb3836.1-2010 General
Requirements for Explosive Environment Equipment |
|
Mass less than 350g, height × width × thickness no more than 122 mm ×57 mm ×42 mm (including large capacity explosion-proof
intelligent lithium battery) |
|
IMPRES intelligent lithium battery, which can realize intelligent battery management; The battery capacity is not less than
2900mAh |
|
The frequency range is 136-174mhz and 403-527mhz
|
|
Frequency stability: not higher than ±0.5ppm
|
|
Number of channel groups: at least 16 channel groups
|
|
Channel interval: 12.5khz, 25kHz channel interval
|
|
Operating temperature: -30~60℃; Storage temperature: -40~85℃
|
|
Audio distortion: ≤ 3%
|
|
Transmitting digital voice encoder type AMBE+2TM
|
|
ETSI TS 102 361-1,-2,-3
|
|
Receiving sensitivity ≤ 0.16UV (analog) ≤ 0.14UV (digital)
|
|
Received spurious rejection ≥70Db
|
|
Rated audio frequency 0.5W
|
