Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SYNCOTEK
-
Power:
-
12V
-
Model:
-
Motor Card dispenser with Barcode Cards reader
-
card size:
-
86*55mm
-
card thickness:
-
0.2-1.2mm
-
stacker capability:
-
30pcs
-
extenion stacker:
-
no
-
error card bin:
-
3pcs
-
card pre-empty detection:
-
10
-
interface:
-
RS232/ TTL
-
tYpe:
-
Motor Card dispenser with Barcode Cards reader
Quick Details
-
Type:
-
Vending Machines
-
Dimension:
-
296*100*226mm, 296*100*226
-
After-sales Service Provided:
-
Video technical support, Free spare parts
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SYNCOTEK
-
Power:
-
12V
-
Model:
-
Motor Card dispenser with Barcode Cards reader
-
card size:
-
86*55mm
-
card thickness:
-
0.2-1.2mm
-
stacker capability:
-
30pcs
-
extenion stacker:
-
no
-
error card bin:
-
3pcs
-
card pre-empty detection:
-
10
-
interface:
-
RS232/ TTL
-
tYpe:
-
Motor Card dispenser with Barcode Cards reader

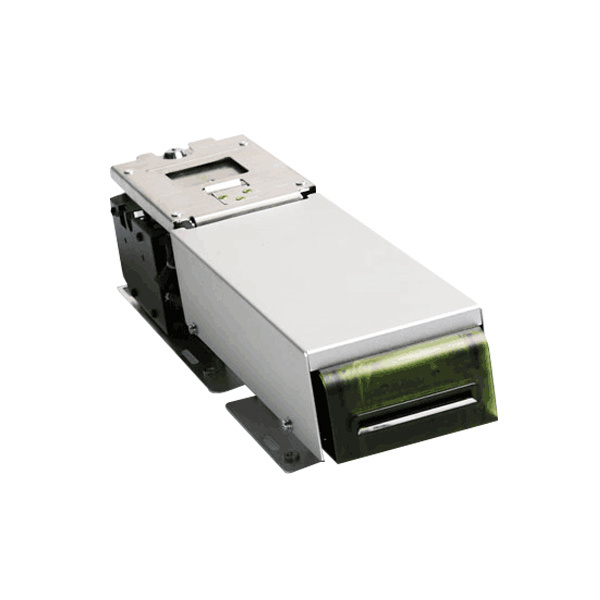

kiosk portable medical card dispenser machine security card vending machine
kiosk portable medical card dispenser machine security card vending machine Features:
*The design of the hook type push hook is used to reduce the friction between the card and the card;
*With safety lock card box, and recovery box Design, improve the safety of the card management;
*Protruding bezel: for anti-theft is available;
*Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside;
*Supports ISO7810/7811 magnetic card reading only;
*Supports ISO7816-2 contact IC card reading/writing;
*Supports ISO14443-A Mifare Type A/B card reading/writing;
*Support online upgrade program.
kiosk portable medical card dispenser machine security card vending machine Parameter:
| Item | Parameter |
| Card Standard | Comply with ISO7810/7811/7816/IOS14443 |
| Communication | RS232 |
| Working Power | DC12V+5%, 2.5A |
| Quiescent Current | 100mA |
| Card Stacker Capacity |
30 cards , 0.76mm thickness
20 cards, embossing card |
| Recovery Card Box Capacity | 4 cards, 0.76mm thickness |
| Life |
Magnetic head: over 1,000,000 times
IC contact: over 500,000 times |
| Operation Temperature/Humidity | 0°C to 50°C, 0 to 90% RH without condensation |
| Storage Temperature/Humidity | -20°C to 70°C, 0 to 90% RH without condensation |
| Net weight | Approx. 1.48Kg |
| Size | 358mm*102.8mm *82.8 mm( L*W*H |
