Quick Details
-
Power (kW):
-
59.95
-
Weight (KG):
-
4700
-
Product name:
-

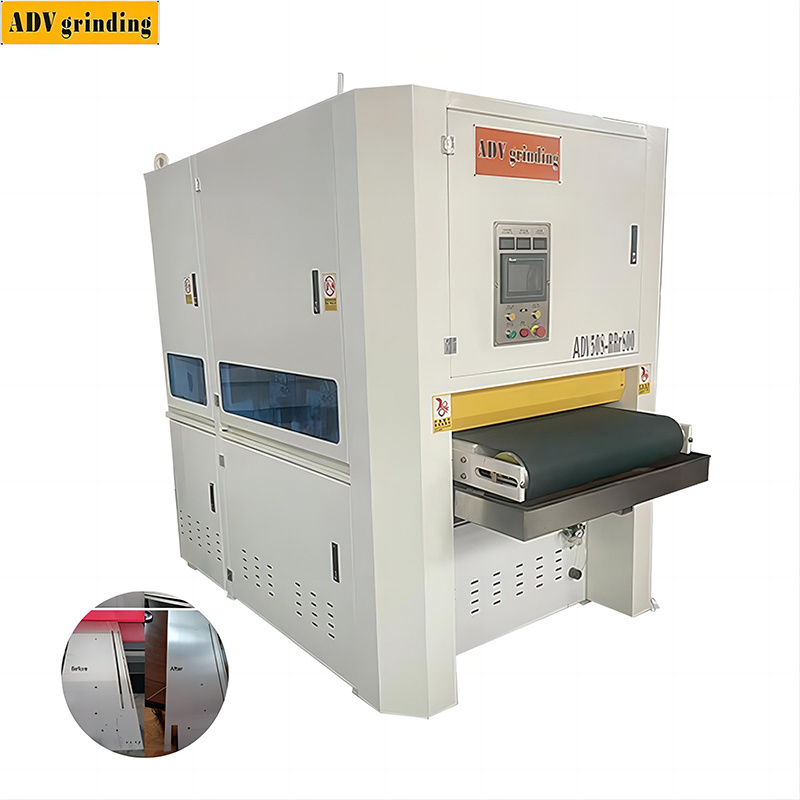

ADV 508-Rr1600 metal sanding machine
-
Belt size:
-
2200*1620 mm
-
Available Width:
-
30-1600mm
-
Available Thickness:
-
0.5-60 mm
-
Feeding speed:
-
0.5-5m/min frequency speed
-
N0.1 Motor Power:
-
30 kw
-
No.2 Motor Power:
-
22kw(Roller brush)
-
Delivery Motor Power:
-
5.5 kw
-
Water pump power:
-
1.1 kw
-
Machine size:
-
2600*2500*2450mm
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
ADV
-
Warranty of core components:
-
1 years
-
Power (kW):
-
59.95
-
Weight (KG):
-
4700
-
Product name:
-
ADV 508-Rr1600 metal sanding machine
-
Belt size:
-
2200*1620 mm
-
Available Width:
-
30-1600mm
-
Available Thickness:
-
0.5-60 mm
-
Feeding speed:
-
0.5-5m/min frequency speed
-
N0.1 Motor Power:
-
30 kw
-
No.2 Motor Power:
-
22kw(Roller brush)
-
Delivery Motor Power:
-
5.5 kw
-
Water pump power:
-
1.1 kw
-
Machine size:
-
2600*2500*2450mm
We provide local services in below countries. And we are opening to have more agents.If you want to know whether your location has local service or not, please
click here.
Machine Description
Tips:PLC sheet metal hairline finishing machine with abrasive belt and roller brush
1. For flat metal plate material (aluminum, copper, stainless steel, etc.) deburred ,brushed, edges rounding and polished.
2. Rr series finishing machine can process various patterns, including No.4 short wire and hairline long straight wire for
decorative purposes. It can also be used for brushed to remove scratches or to enhance the adhesion of spray
3. The standard available width is 630mm, 1000mm, 1300mm, 1600mm , or customized.
4. The deburring machine can be used in the wet process or dry process .
2. Rr series finishing machine can process various patterns, including No.4 short wire and hairline long straight wire for
decorative purposes. It can also be used for brushed to remove scratches or to enhance the adhesion of spray
3. The standard available width is 630mm, 1000mm, 1300mm, 1600mm , or customized.
4. The deburring machine can be used in the wet process or dry process .
Machine Parameters
|
Item
|
Specification
|
|
|
||
|
Model
|
ADV 508-Rr630
|
ADV 508-Rr1000
|
ADV 508-Rr1300
|
||
|
Effective processing width
|
30-630 mm
|
30-1000 mm
|
30-1300 mm
|
||
|
Processing thickness
|
0.5-60 mm
|
0.5-60 mm
|
0.5-60 mm
|
||
|
Belt size
|
1900*650 mm
|
2000*1020 mm
|
2200*1320 mm
|
||
|
Conveying speed
|
0.5-5m/min frequency control
|
|
|
||
|
The first sand frame motor power
|
15 kw
|
22kw
|
30kw
|
||
|
The second sand frame motor power
|
15 kw
|
18.5kw
|
22kw
|
||
|
Conveying motor power
|
3kw
|
3kw
|
4kw
|
||
|
Pump motor power
|
0.75 kw
|
1.1kw
|
1.1kw
|
||
|
Machine size
|
2200*1500*2450mm
|
2350*1850*2450mm
|
2500*2200*2450mm
|
||
|
Machine weight
|
2000kg
|
2700kg
|
3800kg
|
||
For more specification, please
contact us.
Machine Parts
Oxide Layer Removal(R station)
Oxide skin occurs on metal and stainless steel when laser cutting, and it must be removed for subsequent coating processes or welding.
Pefect hairline finishing
A combination of finishing with abrasive belt station and roller brush station
Available model:
ADV 508-RR
No. 3 or No. 4 finishing with abrasive belts from grit 120, 180.
ADV 508-RP
Scotch-Brushed finishing with abrasive belt and polishing pad.
ADV 508-Rr
Long scratch hairline finishing with abrasive belt and roller brush.
ADV 508-Rr SHEET METAL HAIRLINE FINISHING MACHINE
More Time-saving!
More Time-saving!
More Cost-saving!
More stable and better performance!
Consider Everything for Customers, Create More Value for Customers!
More stable and better performance!
Consider Everything for Customers, Create More Value for Customers!
Machine configuration:
Siemens high power engine
Delta PLC touch screen
NSK bearings
Machine Application
Application materials
ADV 508-Rr Sheet metal finishing machine is suitable for stainless steel, steel, aluminium, copper, etc.
ADV 508-Rr Sheet metal finishing machine is suitable for stainless steel, steel, aluminium, copper, etc.
Application products:
Sheet to Sheet or Coil to Coil.
Application Industries:
ADV 508-Rr sheet metal finishing machine are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
We Support FREE Testing Samples for Customers
If you have any questions about the sheet metal finishing machine or other related questions, please contact us without
hesitation.
If you have any questions about the sheet metal finishing machine or other related questions, please contact us without
hesitation.
FINISHING OF SHEET METAL PRODUCTS:
This machine can be built to produce a variety of sheet metal finishes. Metal finishing is the last step in the manufacturing,
that adds to the protection and aesthetics of the products. The most common finishes are decorative finishes as for instance a straight-line or a grain finish.These can be accomplished in finishing processes that use abrasive belts, polishing pad, roller brushes.
This machine can be built to produce a variety of sheet metal finishes. Metal finishing is the last step in the manufacturing,
that adds to the protection and aesthetics of the products. The most common finishes are decorative finishes as for instance a straight-line or a grain finish.These can be accomplished in finishing processes that use abrasive belts, polishing pad, roller brushes.
More information on
finishing can be found here.
