Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
xinnuo
-
Voltage:
-
380V, 380V
-
Dimension(L*W*H):
-
2500*1400*1500mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
Ordinary Product 2024
-
name:
-
Zimbabwe Deep Ridge Bullnose Machine Curving Roofing Sheet Machine
-
rollforming machine raw material width:
-
as the profile show
-
raw material thickness:
-
0.3-0.8mm
-
effictive width:
-
750mm
-
rollforming machine Control System:
-
PLC Delta Inverter
-
Feeding Material:
-
color steel coils
-
Manual Uncoiler:
-
1 set
-
Electric-Motor:
-
1 set
-
PLC Control:
-
1 set
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
1-5m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
xinnuo
-
Voltage:
-
380V, 380V
-
Dimension(L*W*H):
-
2500*1400*1500mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
Ordinary Product 2024
-
name:
-
Zimbabwe Deep Ridge Bullnose Machine Curving Roofing Sheet Machine
-
rollforming machine raw material width:
-
as the profile show
-
raw material thickness:
-
0.3-0.8mm
-
effictive width:
-
750mm
-
rollforming machine Control System:
-
PLC Delta Inverter
-
Feeding Material:
-
color steel coils
-
Manual Uncoiler:
-
1 set
-
Electric-Motor:
-
1 set
-
PLC Control:
-
1 set
Product Description
Specification
|
machine name
|

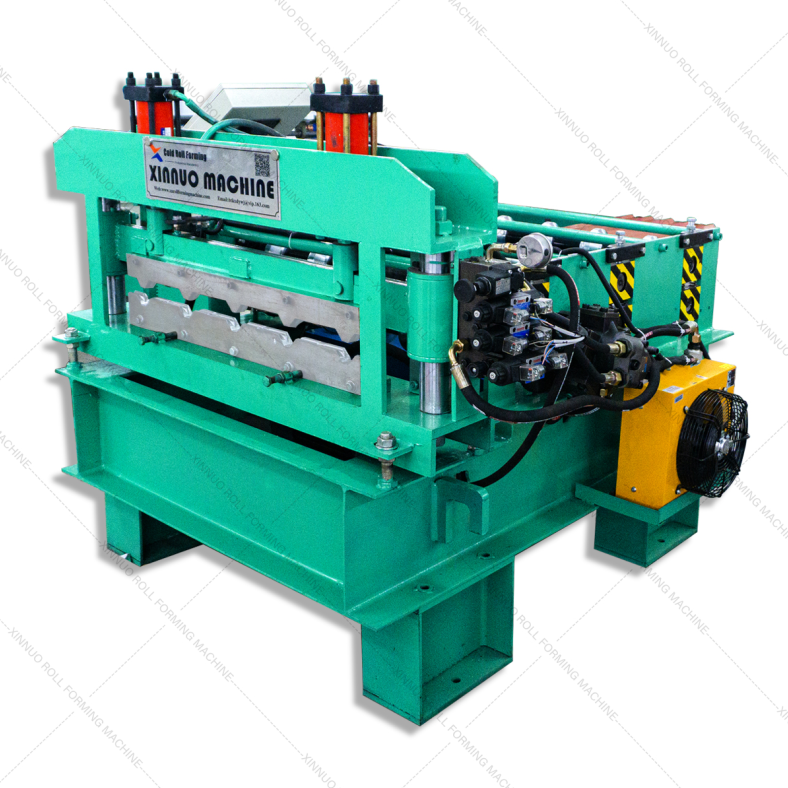

Zimbabwe Deep Ridge Bullnose Machine Curving Roofing Sheet Roll Forming Machine
|
|
Suitable to process
|
Color steel plate, galvanized sheet,aluminum coils and etc.
|
|
Width of the feeding material
|
1000 mm
|
|
Roller station
|
3 rows
|
|
Thickness of feeding material
|
0.3-0.8mm
|
|
Productivity
|
10-16m/min
|
|
Rollers' material
|
45# steel with chrome treatment on surface
|
|
Diameter of shaft
|
70mm
|
|
Weight
|
About 2.0 T
|
|
Size
|
2.5*1.45*1.5m
|
|
Voltage
|
380V 50Hz 3Phase
|
|
Main motor power
|
4 kw
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
