Quick Details
-
Brand Name:
-
UHV
-
Model Number:
-
UHV-H100A
-
Product name:
-
Contact resistance tester
-
Input voltage:
-
AC220V±10%
-
Measured current:
-
DC 0-100A continuously adjustable
-
Measured range:
-
0~1999μΩ
-
Display:
-
Three and a half LCD
-
Accuracy:
-
0.5%±1d
-
Resolution:
-
1μΩ
-
Dimension:
-
300*270*200 mm3
-
Weight:
-
5Kg(not including accessory)
-
Packing:
-
Wooden carton
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
UHV
-
Model Number:
-
UHV-H100A
-
Product name:
-
Contact resistance tester
-
Input voltage:
-
AC220V±10%
-
Measured current:
-
DC 0-100A continuously adjustable
-
Measured range:
-
0~1999μΩ
-
Display:
-
Three and a half LCD
-
Accuracy:
-
0.5%±1d
-
Resolution:
-
1μΩ
-
Dimension:
-
300*270*200 mm3
-
Weight:
-
5Kg(not including accessory)
-
Packing:
-
Wooden carton
Product Paramenters
|
Measuring range
|
1～1999μΩ
|
|
Resolution
|
1μΩ
|
|
Test current
|
DC 0-100AContinuous adjustable
|
|
Accuracy
|
0.5%±1d
|
|
Display
|
Current: three and a half LCD
|
|
|
Resistance: three and a half LCD
|
|
Power supply
|
AC220V±10% 50Hz
|
|
Working environment
|
Temperature -10℃ ~ 40℃, humidity: ≤80%RH
|
|
Diemension
|
300×270×200 mm3
|
|
Weight
|
5kg(excluding attachments)
|
1, SF6 switch, GIS combination appliance, vacuum switch, oil switch for all model metal contacts produced at home and abroad
2, linear stroke sensor, rotary sensor, installation is very convenient, simple
3, the host large screen, straight through, background LCD, contrast electronic adjustment. All Chinese menu prompt operation, switch action once, display all data and waveform map
4, the host can store multiple sets of on-site points, closing test results, on-board real-time clock, easy to archive and save test date, time
5, built-in fast micro printer, print all data and maps
6, Breaker Analyzer has powerful data analysis function, which can effectively analyze various index parameters of circuit breaker mechanical characteristics.

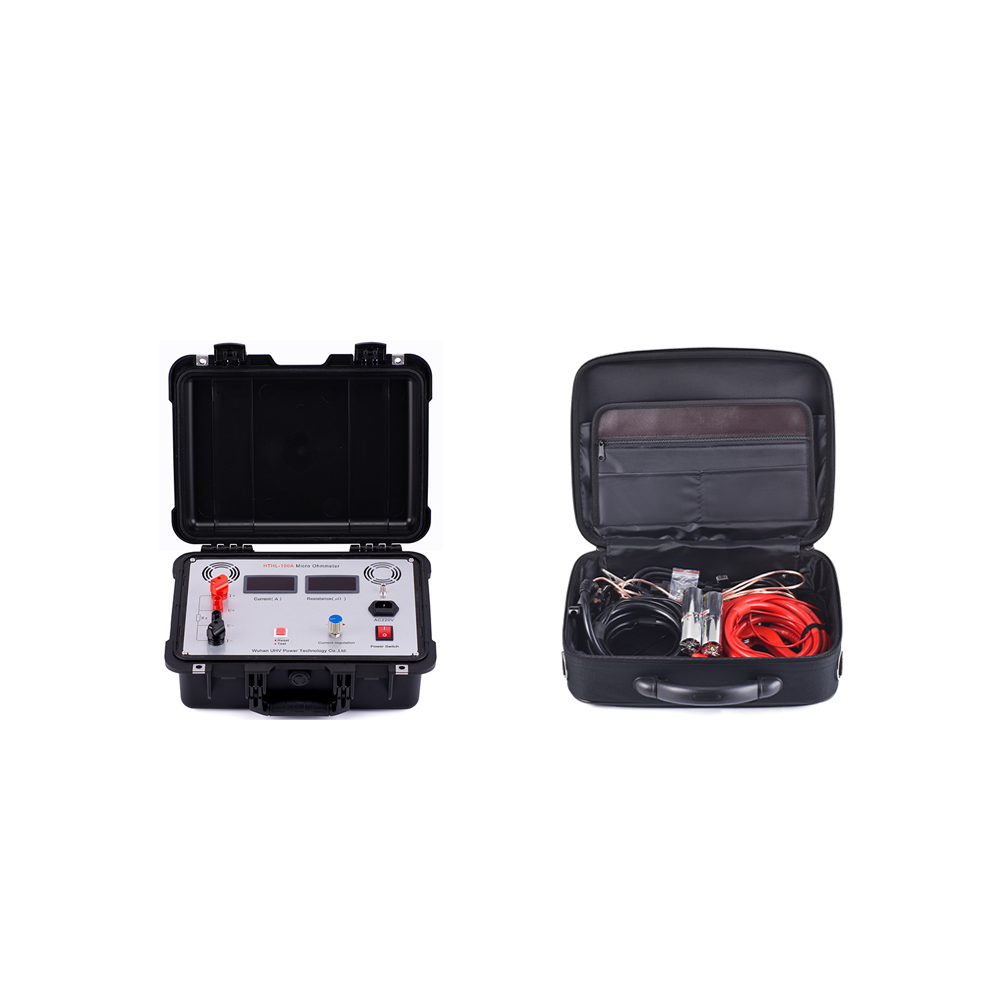

Product Attachment
