Shenzhen Shundarong Technology Co., Ltd.'s intelligent display makes the display more intelligent. KAWDEN team was founded in 2009 and entered Tmall in 2014. It is a liquid crystal display brand with a diversified and customized intelligent display device solution service provider as its business philosophy. The product line includes: indoor and outdoor 4K stage rental LED full color display screens, LCD splicing screens, advertising machines, slide screen, and all other products on sale. At the beginning of its establishment, KAWDEN greatest pursuit and vision was intelligent display. Ten years have passed in the blink of an eye. Over the past decade, KAWDEN has entered many businesses, we also adhere to the coexistence of quality and service. However, this is only the first decade, and there will be a second decade, a third decade in the future. As long as you have any needs, we will do our best to provide you with services.
- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Black, White, Silver
-
Panel Size:
-
320*160mm, 192*192mm, 320*160mm, 192*192mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
KD-LDP
-
Brightness:
-
600cd/m2, 600cd/m2, 5000cd/sqm
-
Contrast Ratio:
-
5000:1, 5000:1
-
Lifespan (hours):
-
80000, 80000
-
IP Rating:
-
IP65, IP65
-
HS Code:
-
8531200000
-
View Angle（H/V）:
-
178/178, 178/178
-
Product name:
-
Led Display
-
Usage:
-
Video Wall CCTV Monitor
-
Display Function:
-
Video Picture Graphic Text Message
-
Keyword:
-
screen led display indoor outdoor
-
Warranty:
-
12 months
-
Viewing angle:
-
178/178
-
Touch screen:
-
Non-touch
-
After-sales Service Provided:
-
Video Technical SupportOnline Support
-
Refresh rate:
-
1920HZ/3840HZ
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
KAWDEN/OEM/Neutral
-
Color:
-
Black, White, Silver
-
Panel Size:
-
320*160mm, 192*192mm, 320*160mm, 192*192mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
KD-LDP
-
Brightness:
-
600cd/m2, 600cd/m2, 5000cd/sqm
-
Contrast Ratio:
-
5000:1, 5000:1
-
Lifespan (hours):
-
80000, 80000
-
IP Rating:
-
IP65, IP65
-
HS Code:
-
8531200000
-
View Angle（H/V）:
-
178/178, 178/178
-
Product name:
-
Led Display
-
Usage:
-
Video Wall CCTV Monitor
-
Display Function:
-
Video Picture Graphic Text Message
-
Keyword:
-
screen led display indoor outdoor
-
Warranty:
-
12 months
-
Viewing angle:
-
178/178
-
Touch screen:
-
Non-touch
-
After-sales Service Provided:
-
Video Technical SupportOnline Support
-
Refresh rate:
-
1920HZ/3840HZ
Shenzhen Shundarong Technology Co., Ltd
|
Item
|
technical parameter
|
|
1. Pixel tube
|
Pixel spacing: 2.5mm
Package: 2121 Primary color: red+green+blue Color combination of luminous point: 1R1G1B Physical density: 160000 points/m2 |
|
2. Unit board
|
Unit board resolution: 128 points wide × High 64 points
Unit board size: 320 * 160mm Number of unit boards: 12800 points/unit board Scanning mode: 32S Input voltage: DC5V Maximum current: 4.5 A |
|

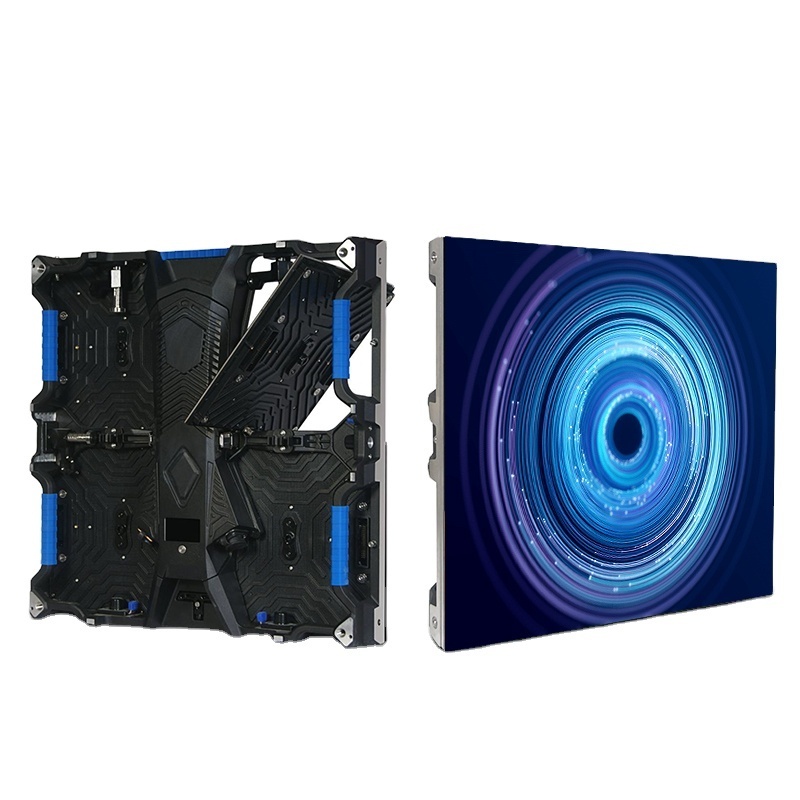

3. Unit box
|
Box size: 640 * 480mm
Number of unit boards: 2 columns wide * 3 rows high=6 Physical resolution: 256 * 192 points Maximum power: 200W Average power: 100W Receiving card: Carlett 75B 1 Working voltage: 220V ± 15% Angle of view: 120 ° ± 10 ° Storage temperature: - 30 ℃~+60 ℃ Working temperature: - 20 ℃~+45 ℃ Relative humidity: 10%~95% Net weight: 8.7Kg |
|
4. Control system
|
Control host: Lenovo Kaitian host or above
Operating system: WIN 7/10 Control mode: synchronous control or asynchronous control Video card: DVI independent video card |
|
5. Main technical parameters
|
1） Driver: FM6353 constant current
2) Drive mode: 1/32 sweep 3) Refresh frequency: ≥ 1920~3840Hz 4) Frame rate: ≥ 60Hz 5) Grayscale/color: 65536 Grayscale 16.7M color 6) Optimal sight distance: 2.5~25m 7) Brightness: 700cd/m2 8) Brightness adjustment mode: software 256-level adjustable 9) Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, COMMISSION, etc 10) The control system adopts: PCTV card (optional)+DVI graphics card+master control card+optical fiber transmission (optional) 11) Mean time between failures: 1000 hours 12) Service life: 100000 hours 13) Flatness: ≤ 0.5mm between any adjacent pixels; Splicing clearance of unit plate ＜ 1mm; 14) Uniformity: uniform pixel light intensity and unit board brightness 15) Pixel runaway rate: ＜ 0.0002 16) Switching power supply load: 5V/40A 17) Computer display mode: 1920 × one thousand and eighty 18) Effective communication distance: network cable 100m (no trunk), multimode fiber 500m, single-mode fiber 20km |
