1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINGMUYUAN
-
Model Number:
-
XMY-E1380
-
Voltage:
-
380V, 220V, 415V, 230V or as your request
-
Product Name:
-
Exhaust fan
-
Size:
-
1000*1000*450mm
-
Belt:
-
Japanese Mitsuboshi
-
Frame Material:
-
Galvanized Sheet/Stainless Steel430
-
Motor Brand:
-
China motor/Siemens motor/WEG motor/ABB motor
-
Blade Diameter:
-
900mm
-
Balde Rpm:
-
610rpm
-
Application:
-
Poultry Farms,Animal Husbandry,Greenhouse, Factory workshop
-
Power:
-
750w
-
Opening Device:
-
Centrifugal Push-Pull
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, greenhouse, poultry farm
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINGMUYUAN
-
Model Number:
-
XMY-E1380
-
Voltage:
-
380V, 220V, 415V, 230V or as your request
-
Product Name:
-
Exhaust fan
-
Size:
-
1000*1000*450mm
-
Belt:
-
Japanese Mitsuboshi
-
Frame Material:
-
Galvanized Sheet/Stainless Steel430
-
Motor Brand:
-
China motor/Siemens motor/WEG motor/ABB motor
-
Blade Diameter:
-
900mm
-
Balde Rpm:
-
610rpm
-
Application:
-
Poultry Farms,Animal Husbandry,Greenhouse, Factory workshop
-
Power:
-
750w
-
Opening Device:
-
Centrifugal Push-Pull
Product Description

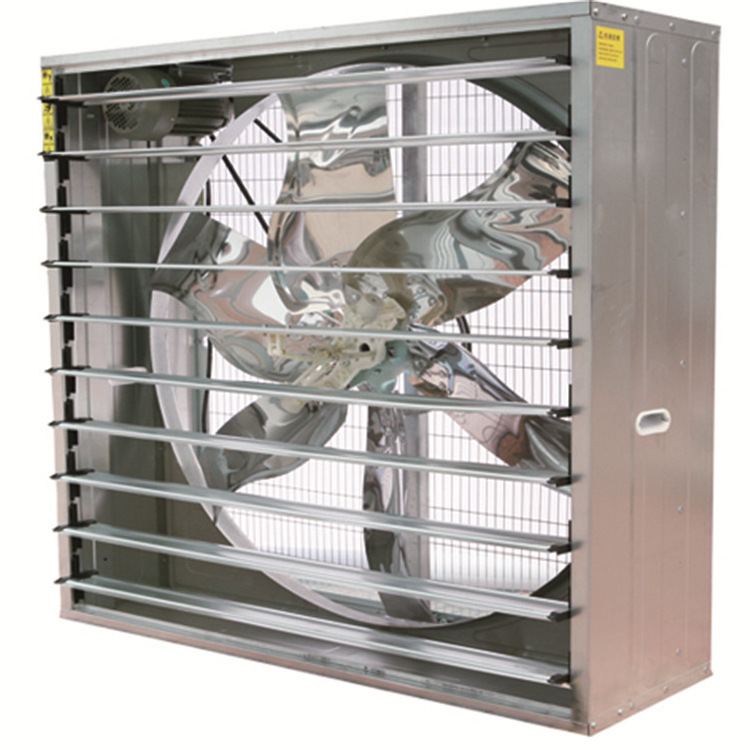

50 inch Industrial Cooling Fan Ventilation Exhaust Fan for Poultry Farm Ventilation
Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
Fully customizable fan housing including galvanized steel, 304stainless steel and 430 stainless steel, precisely prefabricated stainless steel blades for higher durability.
The standard wall mount box type wall mount industrial ventilation exhaust fan sizes range from 200mm to 1750mm.
It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile plant, warehouse etc.
.
|
Model
|
Blades Diameter
(mm) |
Dimension(mm)
|
Blades Speed(rpm)
|
Motor Speed(rpm)
|
Air flow
(m³/hr) |
Input power
(KW) |
|
XMY800
|
710(28inch)
|
800*800
|
660
|
1400
|
18000
|
0.37
|
|
XMY900
|
750(30inch)
|
900*900
|
630
|
1400
|
22000
|
0.55
|
|
XMY1000
|
900(36inch)
|
1000*1000
|
610
|
1400
|
25000
|
0.75
|
|
XMY1100
|
1000(40inch)
|
1100*1100
|
600
|
1400
|
32500
|
0.75
|
|
XMY1220
|
1100(44inch)
|
1220*1220
|
460
|
1400
|
38000
|
0.75
|
|
XMY1380
|
1270(50inch)
|
1380*1380
|
439
|
1400
|
44000
|
1.1
|
|
XMY1530
|
1400(56inch)
|
1530*1530
|
325
|
1400
|
55800
|
1.5
|
Main Features：
XINGMUYUAN Exhaust fan are widely used in Agriculture and industry ventilation and cooling.
It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc..
Details Images
Motor
Motor Protection Grade: IP55
Advantage: Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.
Belt pulley
Fan belt pulley made of high strength aluminum-magnesium alloy by die-casting. Blast-sanding treatment for attractive appearance,eliminate internal stress to improve its own rigidity and stability.
Belt
Belts are Japanese Mitsubishi brand and Sanlux brand for option. Belt type: A and B. wear-resistant and longe service life.Long service life and no repair Modified B type belt,so that service life increase 3times than Type A
.
Fan blade .
The material of the blade is Krupp stainless steel, thickness 1.2mm. Large air flow, no deformation, no fracture, no dust, attractive and durable
Fan safe net
Bearing.
Imported double-row bearing with special waterproof design.
Advantage: High strength, low noise, free maintenance and long service life.
