Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Orchard King
-
Product Name:
-
Orchard King 300 swing arm mower rear-side flail brush mower
-
Capacity:
-
Cutting width 1700 to 3300 mm
-
Used for:
-
2 to 6 meters row spacing
-
MOQ:
-
1
-
Linkage:
-
Extended delta drive shaft
-
Working width:
-
1700mm
-
Advantage:
-
Simple structure, high cost performance
-
PACKAGE:
-
Iron Case
-
Color:
-
Red + Black or Customer Required
Quick Details
-
Weight (KG):
-
410
-
Type:
-
orchard vineyard machine, Swing arm mower
-
Use:
-
orchard and vineyard under tree mowing
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Orchard King
-
Product Name:
-
Orchard King 300 swing arm mower rear-side flail brush mower
-
Capacity:
-
Cutting width 1700 to 3300 mm
-
Used for:
-
2 to 6 meters row spacing
-
MOQ:
-
1
-
Linkage:
-
Extended delta drive shaft
-
Working width:
-
1700mm
-
Advantage:
-
Simple structure, high cost performance
-
PACKAGE:
-
Iron Case
-
Color:
-
Red + Black or Customer Required
Product Overview

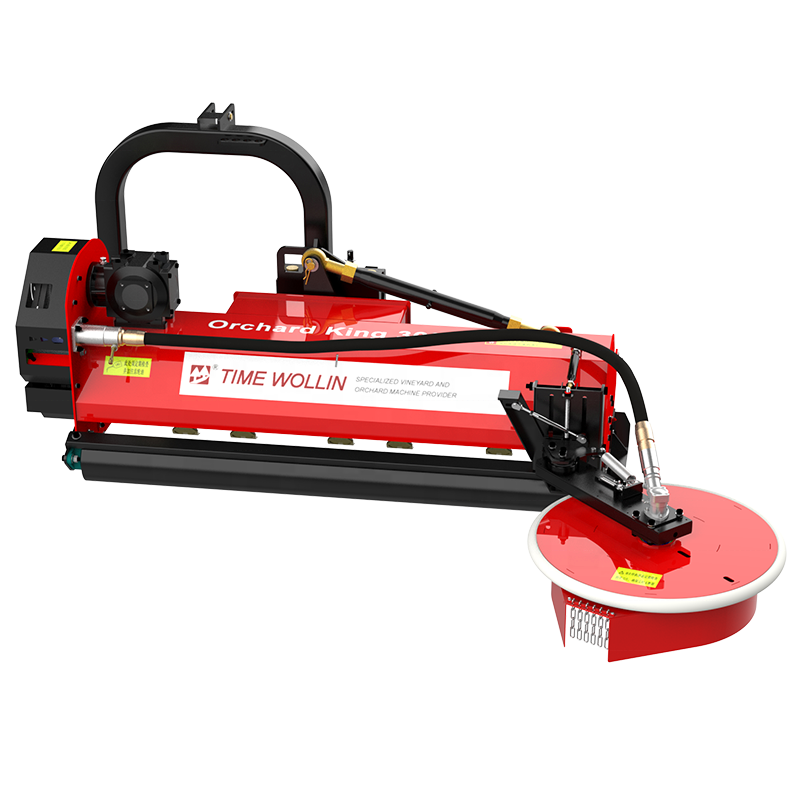

ORCHARD KING 300
Flail mower with swing arm cutter for orchard and vineyard
Orchard King 300 main body is a single horizontal shaft driven by multiple toothed belts, with crushing hammers. Each hammer weighs half a kilogram, has large inertia, and can crush branches of 2 centimeters.
Compared with multi-cutter rotary mowers, Orchard King 300's structure is more simplified and more resistant to terrain impact also can adapt to the complex terrain of orchards and vineyards.
Due to the simplified design of the transmission structure, the potential failure points are reduced, the failure rate is significantly reduced, and it is easier to use the orchard for a long time.
The swing arm cutter is lightweight, and it's height and angle can be adjusted independently.
Orchard King is available as a basic model and an upgraded version with a side arm. The main engine of the basic model is directly connected to the suspension bracket, and the front and rear distance of the machine is more compact.
The upgraded model can hydraulically control the side shift and flip of the main engine, which is not only suitable for a variety of row spacing, but also easy to turn around, but also more suitable for a variety of terrain, including ridge slopes under trees, gutters between rows or hilly orchards.
Orchard King 300 series has a number of models with different cutting sizes, suitable for a variety of row spacing, and the power demand for the tractor is not the same.
Generally equipped with 30 ~ 50 hp compact tractor.
|
Type
|
Orchard King 300C
|
|
Total cutting width (mm)
|
1950
|
|
Cutting width of Flail mower (cm)
|
1500
|
|
Suitable spacing of lines
|
3 ~ 3.5
|
|
Cutting depth of Flail mower (cm)
|
3 ~ 10
|
|
Cutting depth of Swing arm cutter (cm)
|
3 ~ 27 *
|
|
Rotation angle of Flail mower
|
-45° ~ 90°
|
|
Rotation angle of Swing arm cutter
|
-30° ~ 30°
|
|
Branch crushing capacity of Flail mower (mm)
|
20 ~ 30
|
|
Min side distance from tractor center (mm)
|
1350
|
|
Max side distance from tractor center (mm)
|
2050
|
|
Working speed (Km/h)
|
3 ~ 5
|
|
Hydraulic connection
|
G1/2=4, G3/8=1
|
|
Number of hammer (flail mower)
|
24
|
|
Number of blade (swing arm cutter)
|
2
|
|
Swing arm cutter height and Angle adjustment
|
Manual
|
* Including swing arm cutter height independent adjustment and the height adjustment of the flail mower.
As of June 2023, our company has applied for and obtained more than 70 invention patents in the field of orchard machinery and intelligent agricultural machinery.
The market share of the products involved in China is also in a leading position.
The main national exhibitions of our company include China International Forestry Machinery Exhibition, China International Agricultural Machinery Exhibition and China Yangling Agricultural Hi-Tech Fair.
In addition to some industry exhibitions in major provinces of fruit industry.
These pictures rotary mower “Path Breaker” was designed and produced by our factory, Path Breaker Nanpi machinery manufacturing Co., Ltd.
Because the transmission structure of this kind of mower is relatively complex, the ability to adapt to complex terrain is not good enough, so it has been eliminated by our factory.
Some counterfeiters are still using our photos and videos, so be aware.
A :
Why choose Orchard King?
Orchard King's Flail mower + swing arm mower structure form is the future trend. Good operation effect, high durability. Moreover, the structural design of Orchard King is more concise and easy to maintain, and has applied for a number of patents.
In China, Orchard King has been deeply contacting orchards around the country with good products for many years, and iteratively upgrading according to the feedback of field operations.
In China, Orchard King is one of the few really good, applicable, advanced obstacle avoidance grass crusher, reputation is better, and the user scale is likely to be the larger.
B :
How about our quality control?
Orchard King's each production step follows strict established standards, and operational tests are carried out before shipment, and only after passing the tests are allowed to leave the factory.
C :
Is there any spare parts included with the machine？
Yes. We will give a variety of accessories according to the needs of users, so as to avoid delay in use once there is a problem.
D :
What's the minimum order quantity?
MOQ: 1 unit.If you have OEM or ODM customization needs, MOQ will change according to your needs.
E :
Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
F :
Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
G :
What's your warranty policy?
Normally our warranty is one year.Once quality issue happen, no damage to human factors, we will send you the replacements by air for free.
