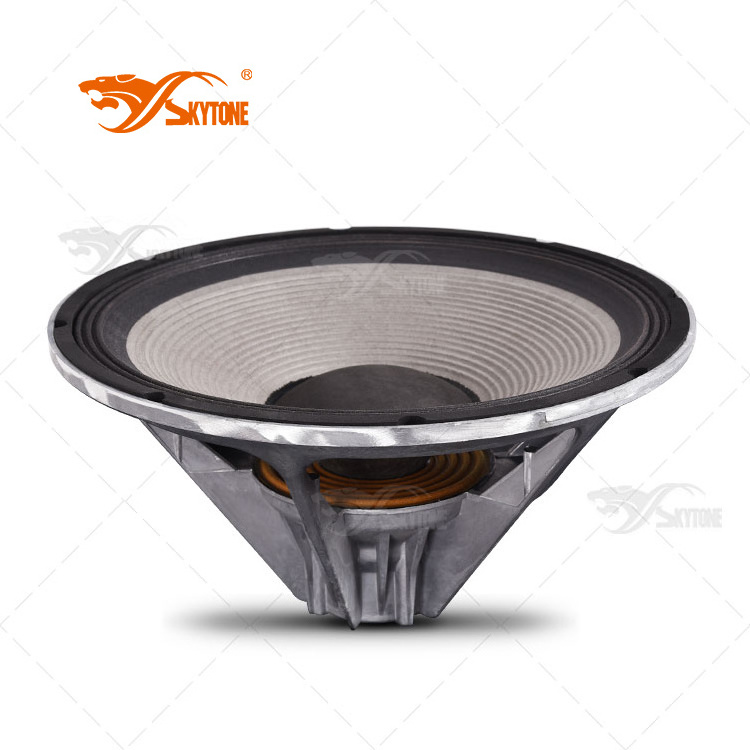

2268HPL 18" Neodymium Woofer, PRO Line Array Subwoofer raw Speaker Driver

FOB Reference Price: Get Latest Price

≥1 Pieces

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 2268HPL

Output Power:: 800W

Shell Material:: aluminum

Nominal Diameter:: 18"

Power Handling (RMS):: 800 Watts

Power Handling (max):: 1,600 Watts

Impedance:: 8 ohms

Sensitivity::: 97 dB 1W/1m

Cone Material:: Paper

Overall Outside Diameter:: 18.125"

Baffle Cutout Diameter:: 16.625"

Depth:: 8.875"

Quick Details

Warranty:: 3months-1year

Place of Origin:: Guangdong, China

Brand Name:: SKYTONE

Model Number:: 2268HPL

Output Power:: 800W

Shell Material:: aluminum

Nominal Diameter:: 18"

Power Handling (RMS):: 800 Watts

Power Handling (max):: 1,600 Watts

Impedance:: 8 ohms

Sensitivity::: 97 dB 1W/1m

Cone Material:: Paper

Overall Outside Diameter:: 18.125"

Baffle Cutout Diameter:: 16.625"

Depth:: 8.875"

2268HPL 18" Nedymium Woofer, PRO Line Array Subwoofer raw Speaker Driver

Product Description

The 2268HPL Differential Drive 18" speaker is the driver of choice for premium, high quality professional subwoofer systems.

Features:

A. Neodymium magnet,

B. Aluminum frame

C. Dual voice coil

D. Differental Drive

E. Imported paper cone

F. Light weight

Highlight

Tour-class woofer with patented motor design
Better heat dissipation increases power handling, reduces power compression
Reduced inductance extends upper response
Lightweight, compact neodymium magnet system
Push-pull operation lowers distortion
Magnetically shielded for use anywhere

Suitable for the following model professional speaker:
1. SRX718S subwoofer
2. SRX728S high power subwoofer/Bass
3. VRX918S subwoofer/ Bass
4.other subwoofers

2268HPL PRODUCT SPECIFICATIONS
Power Handling (RMS)	800 Watts
Power Handling (max)	1,600 Watts
Impedance	8 ohms
Sensitivity	96 dB 1W/1m
Voice Coil Diameter	3"

THIELE-SMALL PARAMETERS
Resonant Frequency (Fs)	33 Hz
DC Resistance (Re)	5.3 ohms
Voice Coil Inductance (Le)	1.85 mH
Mechanical Q (Qms)	3.80
Electromagnetic Q (Qes)	0.39
Total Q (Qts)	0.36
Compliance Equivalent Volume (Vas)	11.58 ft.³
Maximum Linear Excursion (Xmax)	8 mm

MATERIALS OF CONSTRUCTION
Cone Material	Paper
Magnet Material	Neodymium

MOUNTING INFORMATION
Overall Outside Diameter	18.125"
Baffle Cutout Diameter	16.625"
Depth	8.875"
# Mounting Holes	8
