Quick Details
-
Panel Size:
-
small pitch, small pitch
-
Place of Origin:
-
shenzhen
-
Model Number:
-
MA2000
-
use:
-
Video wall display for multiple screens
-
Resolution:
-
4K, 3840X2160@30HZ,1920X1080P@60HZ,
-
Product Name:
-
Full 4K video and audio splicing processor controller
-
Input signal type:
-
VGA/DVI/HDM I/SDI/BNC etc.
-
Board type:
-
modular hot-swappable architecture
-
Control method:
-
RS232 serial port, RJ45 network, etc.
-
Virtual LED Captioning:
-
Support for dynamic and static subtitles
-
Processing technology:
-
FPGA real-time processing technology
-
Number of channels per card:
-
4 way/2 way
-
Input Power:
-
AC100-220V,50HZ
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
Micagent
-
Panel Size:
-
small pitch, small pitch
-
Place of Origin:
-
shenzhen
-
Model Number:
-
MA2000
-
use:
-
Video wall display for multiple screens
-
Resolution:
-
4K, 3840X2160@30HZ,1920X1080P@60HZ,
-
Product Name:
-
Full 4K video and audio splicing processor controller
-
Input signal type:
-
VGA/DVI/HDM I/SDI/BNC etc.
-
Board type:
-
modular hot-swappable architecture
-
Control method:
-
RS232 serial port, RJ45 network, etc.
-
Virtual LED Captioning:
-
Support for dynamic and static subtitles
-
Processing technology:
-
FPGA real-time processing technology
-
Number of channels per card:
-
4 way/2 way
-
Input Power:
-
AC100-220V,50HZ
Product information
*This product can be customized according to your needs of the corresponding functions and signal source interface, please contact customer service to explain your ordering needs.
*Please contact customer service to explain your ordering requirements.
Detailed pictures are for reference only, please refer to the actual order.
Technical features

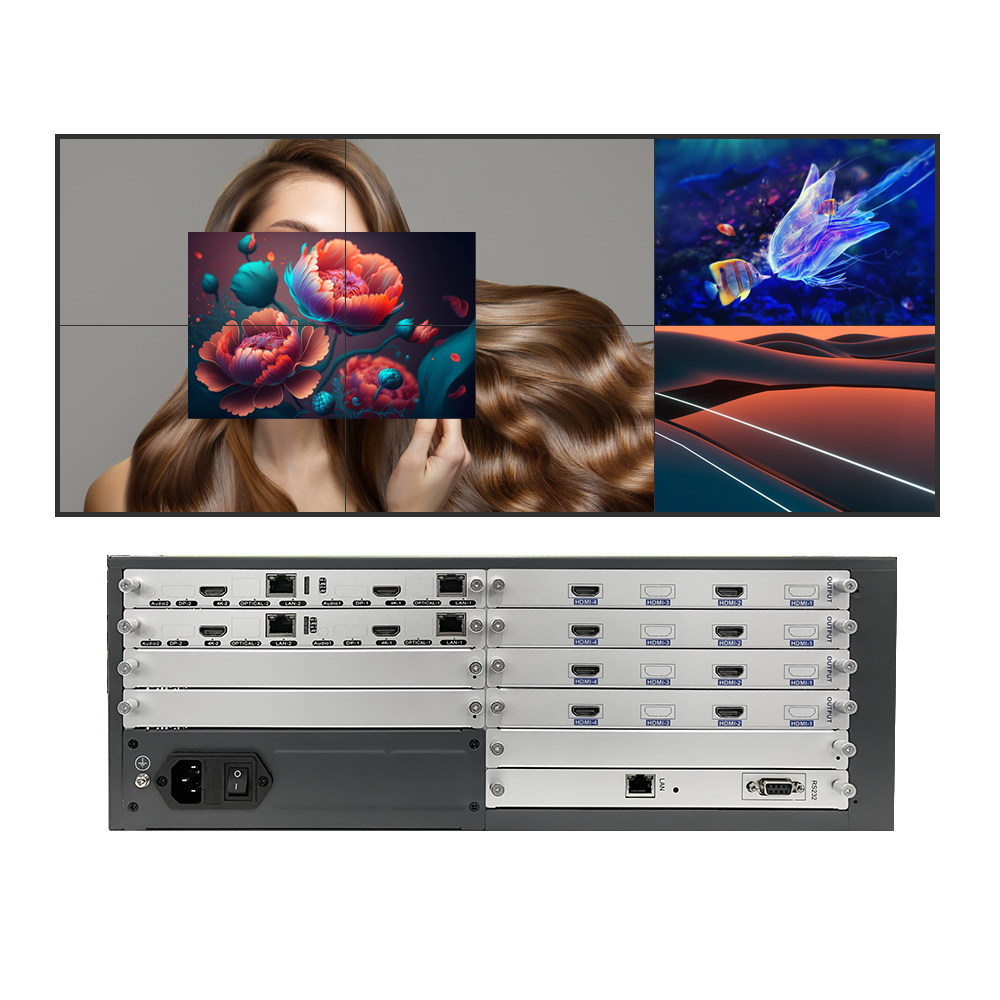

★ Adopt modular structure design, the input/output module and control module of the system support hot-swapping.
★ A single signal can be spliced and displayed on any M×N(>0) display units.
★ Support for input signals any splicing, windowing, picture-in-picture, superimposed, roaming, scaling, cross-screen, etc., single-port support to open 4 layers;
★ Can be configured with a computer multi-screen graphics card, received by the processor 2K/4K input card to achieve non-stretching, non-deformation point-to-point oversized image splicing
★ Can support the full 4K input and output
★ Support VGA, DVI, HDMI, SDI, BNC, IPC, Ypbpr (adapter), DP (adapter), miniDP (adapter), CVBS (adapter) and other interface input.
★ Support built-in Dante's Dante's Audio dual-channel audio access and separation output, input self-hosted built-in HDMI audio, output support external 3.5MM audio interface
★ Support DVI, HDMI, VGA (adapter,) BNC (adapter), DP (adapter), back to show the pre-monitoring output.
★ The console has a flat panel, PC client visualization pre-monitoring back to the display function
★ Splicing processor supports output port mapping function, the output port of the processor can be inserted in accordance with the user's mix of wire order to customize the output port set the screen position
★ Support for mobile APP visual control and support for mobile voice semantic recognition control system pre-programmed
★ Support isometric 4K input card access, and support resolution EDID penetration, the maximum support up to 7680X1080 @ 30HZ resolution input, the maximum with the multi-screen graphics card can support 61440X30720 pixel point-to-point without stretching and deformation of the visual Splicing effect
★ Support for virtual LED scrolling subtitles, ultra-high definition point-to-point vector subtitles, support for dynamic subtitles and static subtitles, you can arbitrarily edit the display content, fonts, colors and other parameters, set the welcome message
★ Support multiple scene profiles function, can save up to 256 scene modes, support automatic rotation, can be customized to set the rotation time.
★ Support C/S client, web browser B/S network control, multi-user real-time operation based on TCP/IP network as well as serial port, which can realize the definition, scheduling and management of multiple signal sources.
★ Support a variety of control methods, support RS232 serial port, network, tablet PC, provide SDK docking center control and other control methods.
|
Function Board Parameters
|
|
|
|
|||
|
Input Board Type
|
Interface Model
|
Interface Number
|
Supported Resolution
|
|||
|
HDMI
|
HDMI1.3
|
2
|
1920x1080/60HZ & EDID Management
|
|||
|
SDI
|
3G SDI
|
4
|
1080i/60HZ、1080P/60HZ、720P/60HZ
|
|||
|
DVI
|
DVI-D
|
4
|
1920x1080@60HZ & EDID Management
|
|||
|
DP (adapter)
|
DP1.1
|
2
|
3840x2160@30HZ &EDID management (optional)
|
|||
|
HDMI(4K@30hz)
|
HDMI2.0
|
2
|
3840x2160@30HZ & EDID management (optional)
|
|||
|
HDMI(4K@60hz)
|
HDMI2.0
|
1
|
3840x2160@60HZ & EDID management (optional)
|
|||
|
HDMI(8K@30hz)
|
HDMI2.0
|
1
|
7680x2160@30HZ & EDID management (optional)
|
|||
|
VGA
|
RGBHV
|
4
|
1080P/60HZ
|
|||
|
IPC
|
H.264/H.265
|
4
|
4K、1080P、720P、D1
|
|||
|
BNC
|
Analogue Coaxial
|
4
|
D1
|
|||
|
Wireless casting
|
RJ45
|
4
|
Simultaneously support 4 mobile phones and computer mixed casting
|
|||
|
Information Distribution
|
RJ45
|
4-9
|
Supports 4-9 applications to capture and push PPTs, documents, web browsers, software, local videos and images.
|
|||
|
Output board type
|
Interface Model
|
Interface Number
|
Supported Resolution
|
|||
|
HDMI
|
HDMI1.0
|
2/4
|
1920x1080@60HZ、2560x816@60hz、1440x1440@60HZ&customisation
|
|||
|
HDMI 4K
|
HDMI 2.0
|
2
|
3840x2160@30HZ、1920x1080@60HZ、2560x816@60hz、1440x1440@60HZ &customisation
|
|||
|
DVI
|
DVI-D
|
2/4
|
1920x1080@60HZ、2560x816@60hz、1440x1440@60HZ&customisation
|
|||
|
IP preview and display back
|
H.264
|
2
|
Network Display Back
|
|||
