Quick Details
-
Dimension (L*W*H):
-
630*185*345mm
-
Weight:
-
49KG
-
Product name:
-

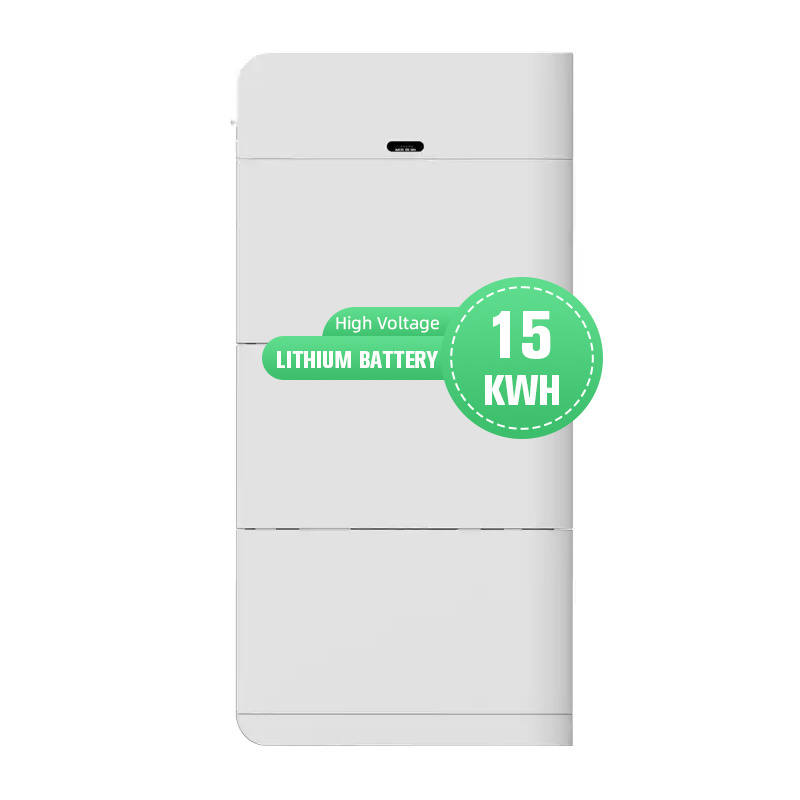

High voltage lithium battery
-
Cycle life:
-
6000cycles @0.5C 80% DOD
-
Protection:
-
BMS Protection
-
Inverter Matched:
-
Growatt/Deye/Solis/Goodwe ET
-
Model:
-
14.336kwh
-
Keywords:
-
solar battery
-
Voltage:
-
High Voltage
-
Nominal Capacity:
-
10kwh-50kwh
-
Warranty:
-
10 years
-
certification:
-
CE/UN38.3/MSDS
Quick Details
-
Model Number:
-
SPHV50
-
Brand Name:
-
Sunpro
-
Place of Origin:
-
Anhui, China
-
Dimension (L*W*H):
-
630*185*345mm
-
Weight:
-
49KG
-
Product name:
-
High voltage lithium battery
-
Cycle life:
-
6000cycles @0.5C 80% DOD
-
Protection:
-
BMS Protection
-
Inverter Matched:
-
Growatt/Deye/Solis/Goodwe ET
-
Model:
-
14.336kwh
-
Keywords:
-
solar battery
-
Voltage:
-
High Voltage
-
Nominal Capacity:
-
10kwh-50kwh
-
Warranty:
-
10 years
-
certification:
-
CE/UN38.3/MSDS
PRODUCT INFORMATION
|
PERFORMANCE SPECIFICATIONS
|
|
|
|
|
||||
|
Model
|
TH-20450-SP
|
TH-30750-SP
|
TH-40950-SP
|
TH-51250-SP
|
||||
|
Nominal Volatge
|
204.8V(64series)
|
307.2V(96series)
|
409.6V(128series)
|
512V(160series)
|
||||
|
Cell model/Configuration
|
3.2V 50Ah(ANC)/32S1P
|
|
|
|
||||
|
Capacity(Ah)
|
50Ah
|
|
|
|
||||
|
Rated Energy(KWh)
|
5.12KWh
|
|
|
|
||||
|
Material（Cell） system
|
LiFePO4
|
|
|
|
||||
|
Max. Charge/Discharge
Current(A) |
50A /50A
|
|
|
|
||||
|
Voltage Range(Vdc)
|
180-228V
|
270-340V
|
350-450V
|
440-560V
|
||||
|
Scalability
|
Up to 4 parallel
|
|
|
|
||||
|
Communication
|
RS232-PC,RS485-Inverter,CAN-Inverter
|
|
|
|
||||
|
Cycle Life
|
6000cycles@25℃，0.5C,80% DOD，60%EOL
|
|
|
|
||||
|
Design Life
|
10 Years(25℃）
|
|
|
|
||||
|
MECHANICAL SPECIFICATIONS
|
|
|
|
|
||||
|
Weight(Approx)(KG)
|
130kg
|
180kg
|
230kg
|
280kg
|
||||
|
Dimension (W/D/H)(mm)
|
630*185*950 mm
|
630*185*1300mm
|
630*185*1650 mm
|
630*185*2000mm
|
||||
|
Installation Mode
|
Stack
|
|
|
|
||||
|
IP Grade
|
IP65
|
|
|
|
||||
Introduction
The Energy storage pack is an essential component of the photovoltaic power generation system. It can provide electricity for the connected load, and it can also store photovoltaic solar modules, fuel generators, or wind energy generators by charging the remaining energy in case of emergency. When the sun goes down, energy demand is high, or there is a power outage, you can use the energy stored in the system to meet your energy needs at no additional cost. In addition, the energy storage Pack can help you achieve energy self-consumption and ultimately achieve the goal of energy independence.
PRODUCT PRESENTATION
About SP-box series
SP-box Series, a Low-voltage lithium battery. With a scalable modular design, the capacity range can be expanded from 10
.24kWh to 25.6kWh. The installation and maintenance is easier and faster with free of cables between modules. Long life technology ensures more than 6000 cycles with 80% DOD.
.24kWh to 25.6kWh. The installation and maintenance is easier and faster with free of cables between modules. Long life technology ensures more than 6000 cycles with 80% DOD.
PRODUCT CATEGORY
COMPANY PROFILE
FAQ
1.How can guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
2.what can you buy from us?
Solar Inverter,Solar System,Lithium Battery, Solar Panel.
3.What services can we provide?
Accepted Delivery Terms: Negotiable;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type:
Negotiable
;
Language Spoken:English,Chinese,German.
