Quick Details
-
Product name:
-
drill rod pipe hydraulic power tongs
-
Certification:
-
API 7k
-
Rod diameter:
-
65~203mm
-
Torque range:
-
25~125kNm
-
Speed(High gear):
-
65-40rpm
-
Speed(Low gear):
-
10.5~2.7rpm
-
Air pressure:
-
0.5~0.9Mpa
-
Hydraulic Pressure range:
-
12-20Mpa
-
Flow rating:
-
120L/min
-
Shifting distance:
-
1500mm
Quick Details
-
Weight (KG):
-
500
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
sunrise
-
Product name:
-
drill rod pipe hydraulic power tongs
-
Certification:
-
API 7k
-
Rod diameter:
-
65~203mm
-
Torque range:
-
25~125kNm
-
Speed(High gear):
-
65-40rpm
-
Speed(Low gear):
-
10.5~2.7rpm
-
Air pressure:
-
0.5~0.9Mpa
-
Hydraulic Pressure range:
-
12-20Mpa
-
Flow rating:
-
120L/min
-
Shifting distance:
-
1500mm
Products Description

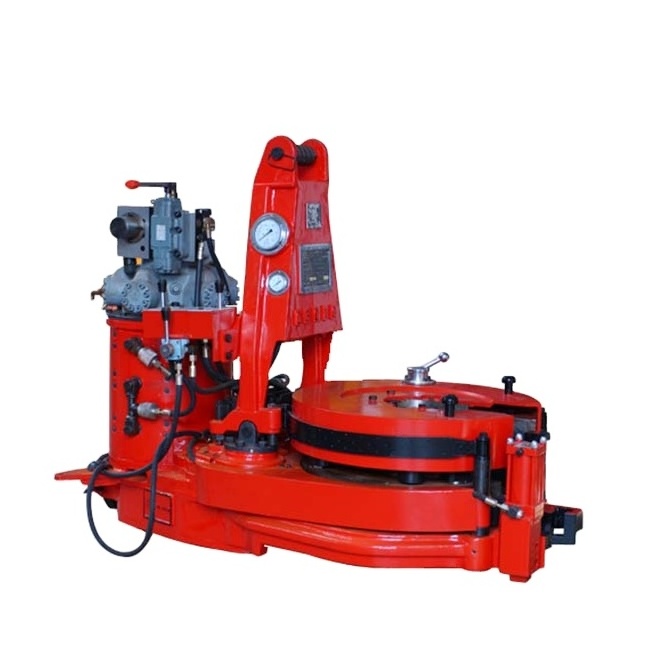

ZQ SERIES OF DRILL PIPE POWER TONG
ZQ Drill Pipe Power Tong is an ideal wellhead tool for oil drilling, widely applied in making-up and breaking-out for well drilling and repairing on offshore and land. Open-throat design of the ZQ series with high mobility allows escaping from drilling pipe freely. The tong is a combination of spinning tong and torque tong. It substitutes cathead, suspension tong and spinning rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K" Specification for Drilling Equipment ".
|
Model
|
|
|
ZQ127/25
|
ZQ162/50
|
ZQ203/100
|
ZQ203/125
|
||||
|
Size range
|
Drill pipe
|
mm
|
65 ~ 127
|
85 ~ 162
|
114 ~ 203
|
|
||||
|
|
|
in
|
2-3/8 ~ 3-1/2
|
2-3/8 ~ 5
|
2-7/8 ~ 8
|
|
||||
|
|
Casing
|
mm
|
65 ~ 127
|
114.3 ~ 153.7
|
-
|
-
|
||||
|
|
|
in
|
2-3/8 ~ 3-1/2
|
4-1/2 ~ 5-1/2
|
-
|
-
|
||||
|
|
Tubing
|
mm
|
65 ~ 127
|
88.9 ~ 141.3
|
-
|
-
|
||||
|
|
|
in
|
2-3/8 ~ 3-1/2
|
3-1/2 ~ 4-1/2
|
-
|
-
|
||||
|
Max. torque
|
|
kNm
|
25
|
50
|
100
|
125
|
||||
|
Air pressure
|
|
MPa
|
0.5 ~ 0.9
|
|
|
|
||||
|
Rated pressure
|
|
MPa
|
12
|
16
|
16.6
|
20.7
|
||||
|
Rated flow
|
|
L/min
|
120
|
|
114
|
|
||||
|
Overall size
|
|
mm
|
1110*735*815
|
1570*800*1280
|
1760*1000*1360
|
1760*1080*1360
|
||||
|
Weight
|
|
kg
|
620
|
1500
|
2400
|
2650
|
||||
