Quick Details
-
Description:
-
microwave motion sensor, microwave motion sensor
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
GST-MS1
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GASIM
-
Theory:
-
Microwave Radar
-
Output:
-
Relay or Rransistor
-
Detection Range:
-
360 degree
-
Power Source:
-
110-130V/AC, 220-240V/AC, 12/24VDC can be customized.
-
Detection range:
-
2-8m (radius)
-
Time delay::
-
8sec-12min (adjustable)
-
Light Sense:
-
2-2000lux (adjustable)
-
Motion Speed:
-
0.6-1.5m/s
-
Installation Height:
-
2.5-3 m
-
Rated Load:
-
1200W (220-240vac, fluorescent )500W,LED; 600W (100-130vac)
-
Working temperature:
-
- 10 ℃ - 70 ℃
Quick Details
-
Use:
-
Automatic lighting control
-
Series:
-
microwave motion sensor
-
Mounting Type:
-
Ceiling surface or wall mounted
-
Description:
-
microwave motion sensor, microwave motion sensor
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
GST-MS1
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GASIM
-
Theory:
-
Microwave Radar
-
Output:
-
Relay or Rransistor
-
Detection Range:
-
360 degree
-
Power Source:
-
110-130V/AC, 220-240V/AC, 12/24VDC can be customized.
-
Detection range:
-
2-8m (radius)
-
Time delay::
-
8sec-12min (adjustable)
-
Light Sense:
-
2-2000lux (adjustable)
-
Motion Speed:
-
0.6-1.5m/s
-
Installation Height:
-
2.5-3 m
-
Rated Load:
-
1200W (220-240vac, fluorescent )500W,LED; 600W (100-130vac)
-
Working temperature:
-
- 10 ℃ - 70 ℃

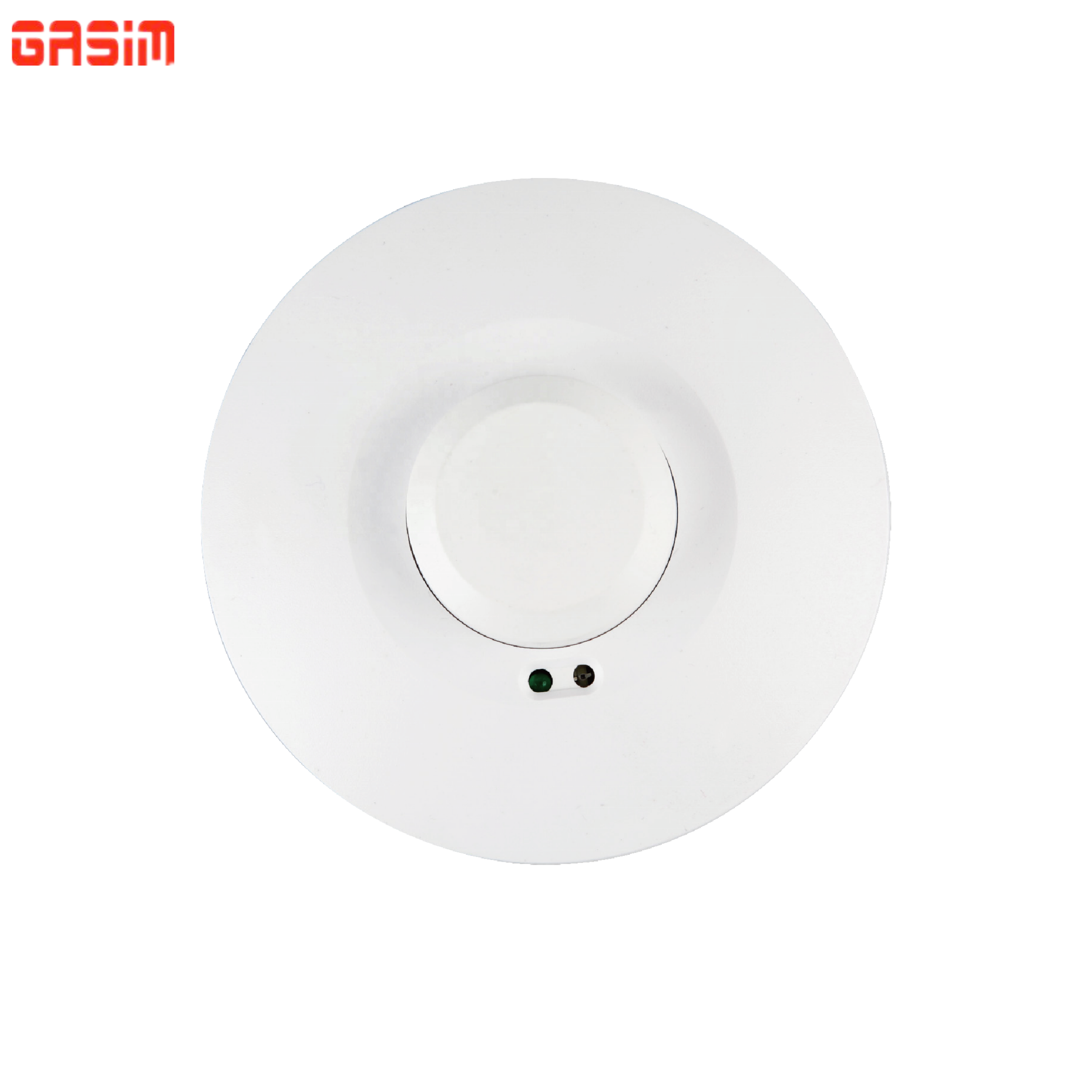

GST-MS1 microwave radar motion sensor
motion detection sensor, microwave radar motion sensor
motion detection switch
The microwave sensor GST-MS1 is according to the microwave doppler effect , it can be widely used in as automatic control switch, the security system, and Automatic video control system of ATM, as well as other automatic induction control area. The Detection way has advantages as follows:
1. Non-contact Detection,
2. Suitable for bad environment, immune to temperature, humidity, noise, air, dust, Light.
3. RF interference ability,
4. Transmission power only 0.2 mW, It will not harm the human Body.
5.Simple installation+ easy wiring.
We use appropriative micro processing integrator, not Only for high sensitivity and wide range of detection, and on very reliable work, error rate is Extremely low, It can stable working on the temperature range: - 15 ~ + 70 Celsius degrees.
NOTE: The high-frequency output of this sensor is <0.2mW- that is just one 100 of the transmission power of a mobile phone or the output of a microwave oven.
| Product name |
microwave motion sensor
|
| Detection Range | 360 degree |
| Power Source | 110-130V/AC; 220-240V/AC; 12V DC can be customized |
| Frequency | 50/60Hz , 5.8GHZ microwave radar motion sensor |
1, Image& size:
2, Specification:
|
GST-MS1
|
Product name: microwave motion sensor switch Model: GST-MS1
Voltage: 220-240vac 100-130vac 50 / 60Hz
|
white |
PC
|
each unit in a color box, 100pcs in a carton |
motion detection sensor
3, Functions:
1, Detection field: The wide detection range is made up of up and down, left and right (see the following diagram), the detection range could be adjusted according to your desire, but the moving orientation in detection field has great relation with the sensitivity.
2, Identify day and night automatically: The ambient light of
GST-MS1
could be adjusted according to your desire: when turn to SUN (max), it will work day and night, when turn it to MOON (min), it will only work in the ambient light less than 3LUX. As for adjustment, please refer to testing way.
3, Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basis (set time).
4, Time-delay is adjustable: It can be set according to your desire, the minimum is 10sec±3sec, and the maximum is 7min±2min.
4, Installation:
4.1 Position for installation.
When you are selecting the mounting position take into account the following points.
1. The sensor is designed for optimum performance when mounted 2.5 meters above ground level.
2. Avoid positioning close to trees or shrubs, which may cause false triggering during wet windy weather.
3. Avoid pointing at or positioning close to heat sources such as flues or heat extraction units, which may cause false triggering.
4. Avoid pointing at bright lights as unit will not function when you set LUX control level to dark.
5. Avoid mounting at strong electromagnetic disturbance, which may cause false triggering.
6. The sensor is most sensitive to movement across the detection area as opposed to directly towards or away from the unit. Position the unit to point across flow areas.
4.2 Steps for installation:
1, Shut off power.
2, Loosen the screw on the bottom lid, open the wiring hole, pass the wire of power and load through the bottom lid.
3, Fix the bottom lid with inflated screw on the selected position.
4 Connect the power and load wire into connection-wire column according to the connecting figure.
5, Put the sensor on the bottom lid, twist the screw tightly then electrify it and test it.
motion detection sensor
5, Market:
1. This product exported Mexico, the United States, Poland, Canada, England, and other countries.
2. We guarantee each product will be checked.
3. If there are bad products, we will promptly pay compensation to customers without any charge.
4. We also sell a lot of similar electronic products, varieties, good quality.
6, Images of GST-MS1 motion detection sensor .
motion detection sensor
Package:
1) White box or customized color box
2) Carton size: 53.5*43.5*30.5cm
3) Gross weight:18.4KGS
4) Quantity/carton:100pcs
